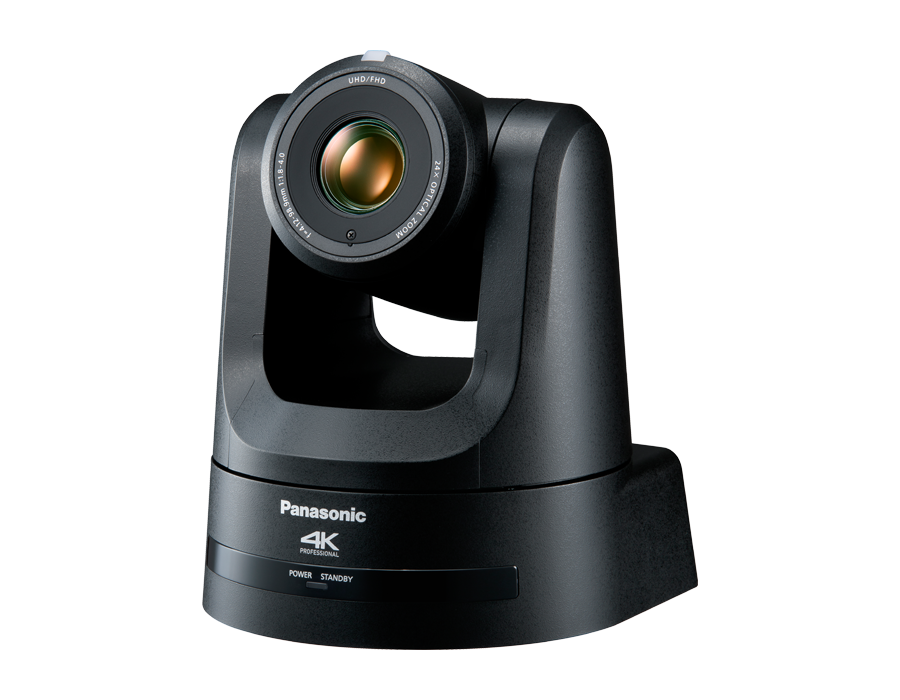

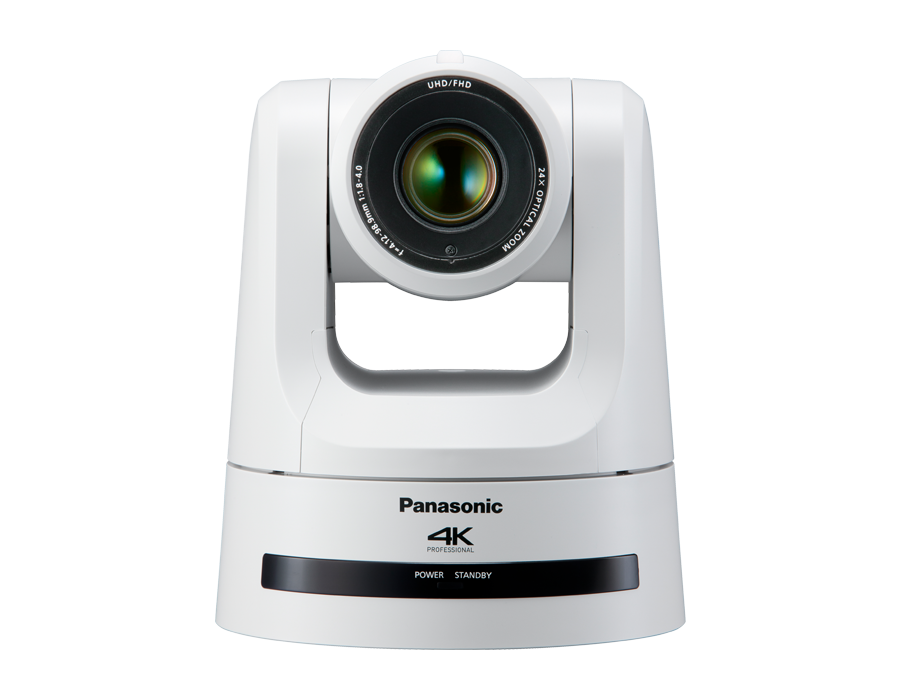

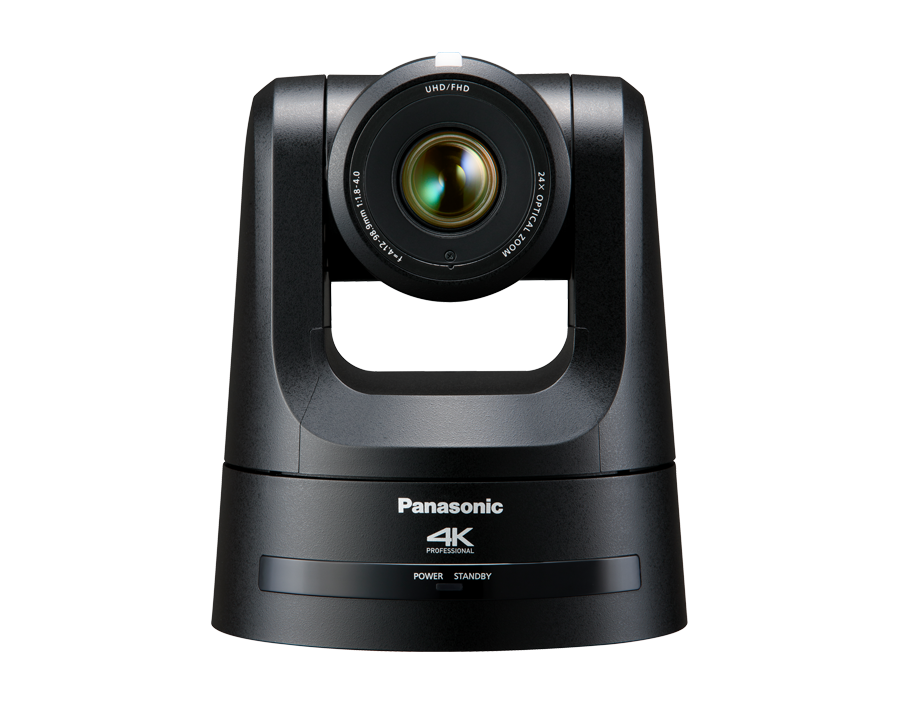

Panasonic AW-UE100W 4K PTZ Camera
The AW-UE100 is a 4K/60p integrated PTZ camera built around a 1/2.5-type 4K MOS sensor and a 24x optical zoom lens with a 74.1-degree wide horizontal angle of view. i.Zoom extends the reach to 28x in 4K and 36x in HD, and the camera shoots UHD 3840 x 2160 at 59.94p/50p. It is aimed at remote production, live streaming, houses of worship and stage work where one operator needs to cover both wide and tight shots.
Outputs cover 12G-SDI, 3G-SDI, HDMI and IP, and the camera transmits high-bandwidth NDI, NDI|HX and SRT over the network. PoE++ carries power, control and video over a single Ethernet run, while FreeD output feeds camera tracking data to AR/VR systems. Panning covers plus or minus 175 degrees and tilt runs from -30 to +210 degrees. This is the white model; a power adapter is included.
- Output Format4K 3840 x 2160 59.94p/50p
- Video Output12G-SDI, 3G-SDI, HDMI, IP
- Image Sensor1/2.5-type 4K MOS
- Pan / Tilt RangePan +/-175 degrees, Tilt -30 to +210 degrees
- PowerPoE++ or supplied AC adapter
| Image Sensor | 1/2.5-type 4K MOS |
|---|---|
| Optical Zoom | 24x (i.Zoom to 28x in 4K, 36x in HD) |
| Horizontal Angle of View | 74.1 degrees (wide) |
| Output Format | 4K 3840 x 2160 59.94p/50p |
| Video Output | , 3G-, , IP |
| IP Protocols | , NDI|HX, SRT |
| Pan / Tilt Range | Pan +/-175 degrees, Tilt -30 to +210 degrees |
| Power | ++ or supplied AC adapter |
