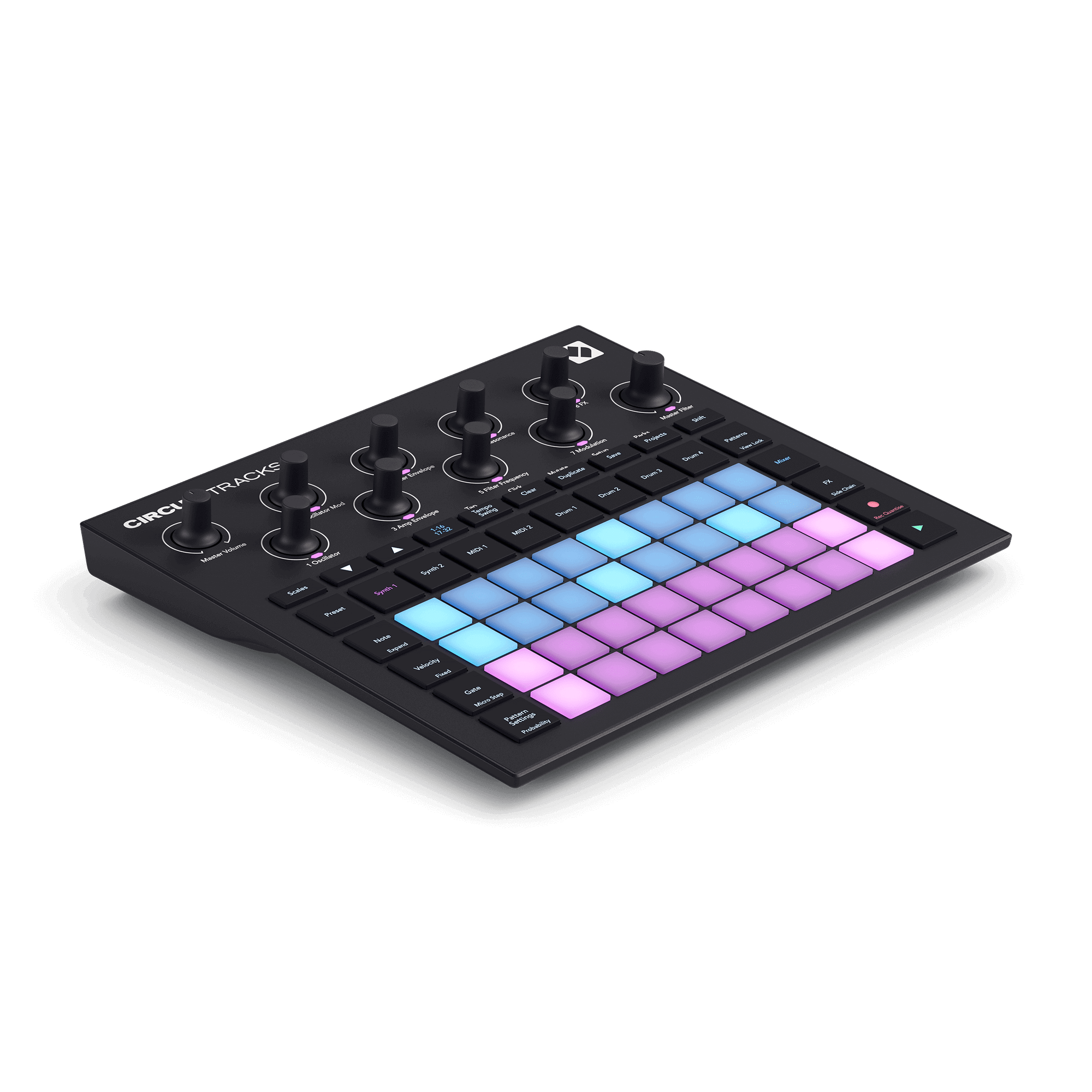

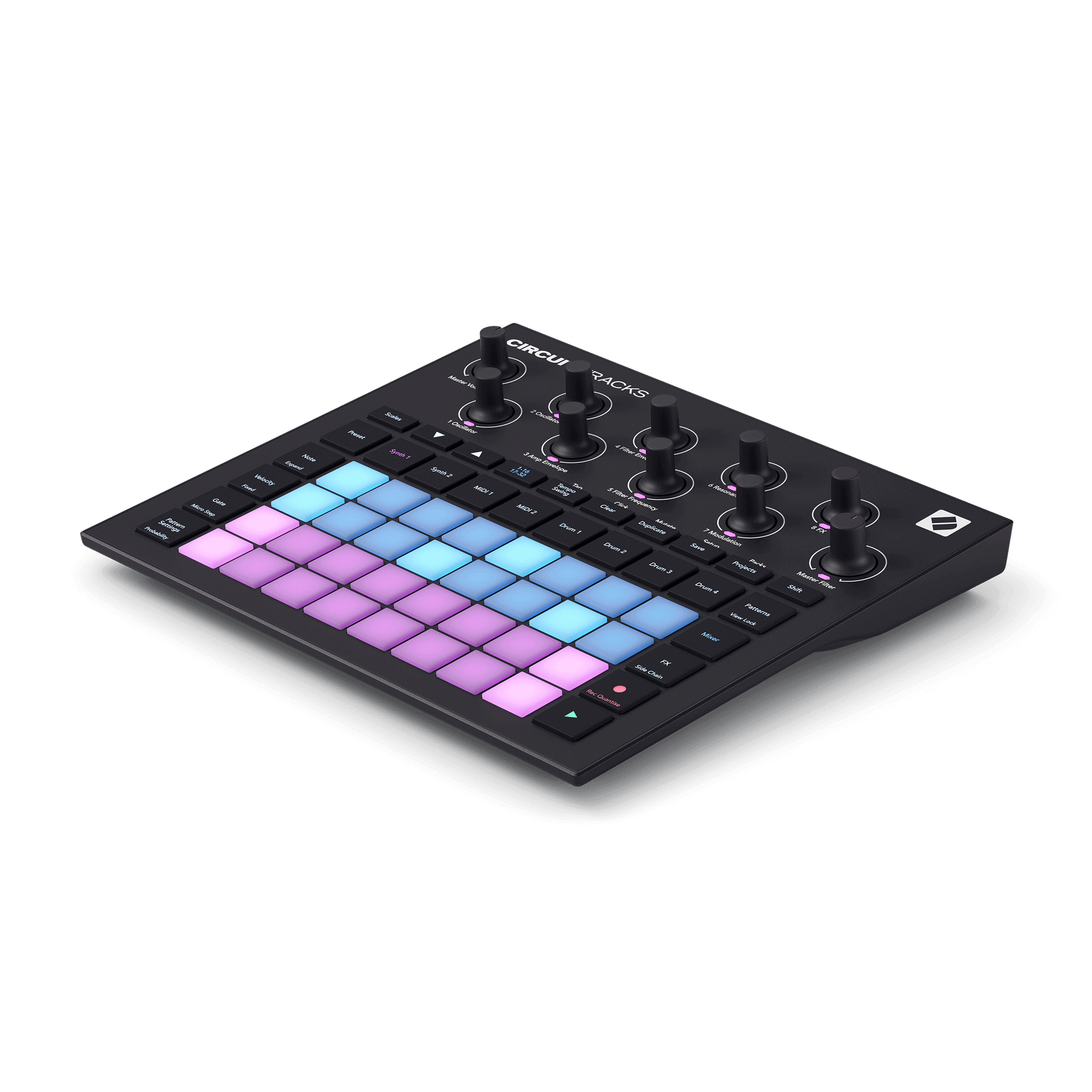

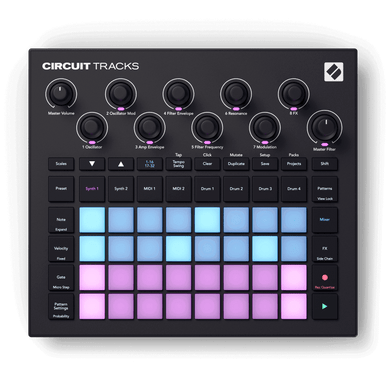

Novation Circuit Tracks Standalone Groovebox
Circuit Tracks runs two 6-voice polyphonic synth tracks and four sample-based drum tracks alongside two MIDI tracks for triggering external gear, all driven by a 32-step sequencer with 16 built-in scales, pattern mutation, probability, and micro-timing. Thirty-two RGB backlit velocity-sensitive pads, 24 endless RGB encoders, and 28 RGB buttons put every parameter within reach without a screen menu.

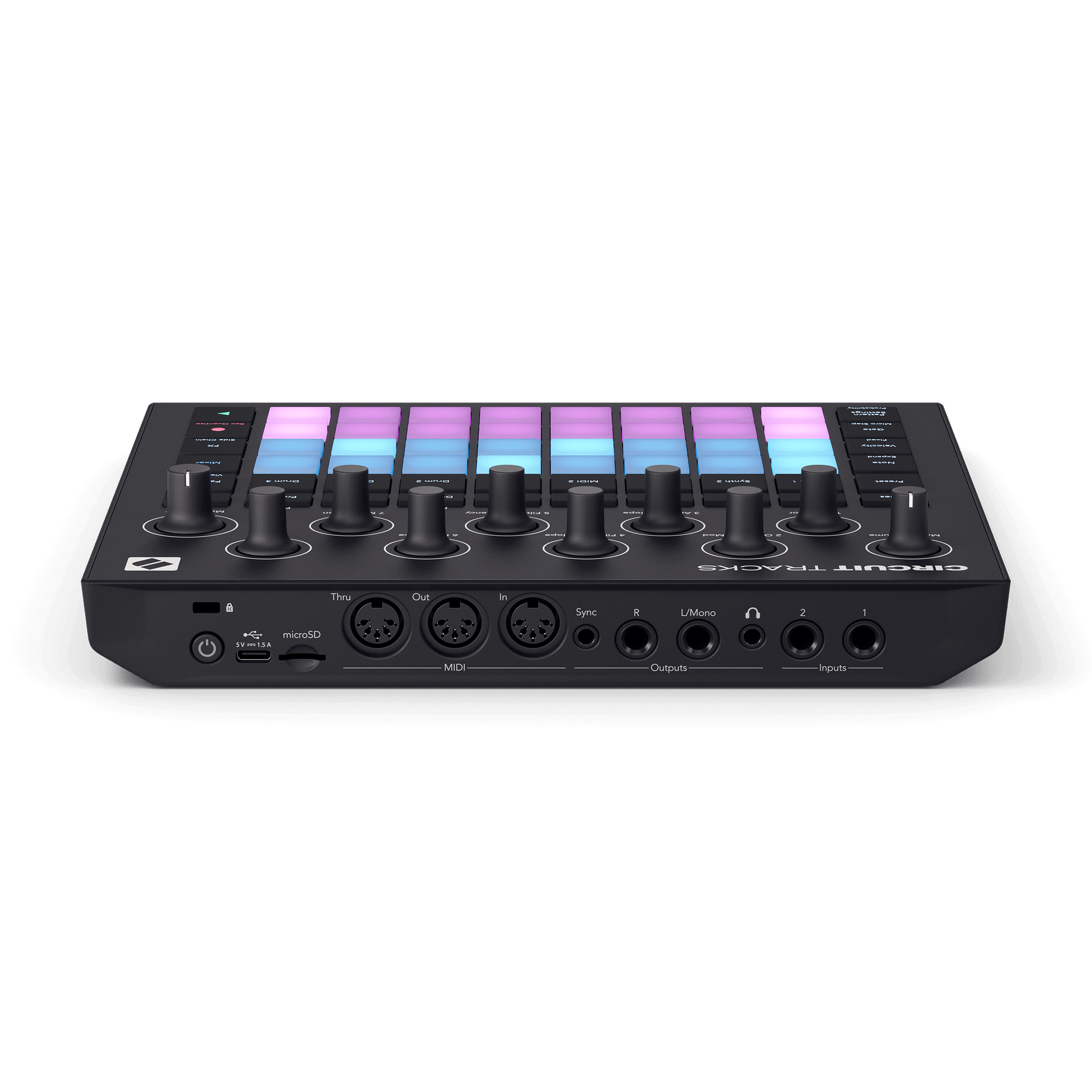

Send effects cover reverb, delay, and a sidechain compressor, with mix-bus compression and a dedicated effect macro per synth preset for quick tonal shifts. It connects over MIDI In/Out/Thru (5-pin), USB-C for charging and bus power, a 3.5mm sync output, and a microSD slot for sample storage, plus 1/4 inch mono inputs, L/R outputs, and a headphone jack for standalone use away from a computer.
| Tracks | 2 polyphonic synth tracks (6-voice each), 4 sample tracks, 2 MIDI tracks |
|---|---|
| Sequencer | 32-step, 16 built-in scales, pattern mutation and probability, micro-timing |
| Pads/Controls | 32 RGB velocity-sensitive pads, 24 endless encoders, 28 RGB buttons |
| Effects | Send reverb, delay, sidechain compressor; mix-bus compression |
| Storage | MicroSD card slot for samples |
| Connectivity | MIDI In/Out/Thru (5-pin), USB-C, 3.5mm sync out |
| Audio I/O | 2x 1/4" mono inputs, L/R 1/4" outputs, 3.5mm headphone out |
