MOTU M2 2x2 USB-C Audio Interface with Full-Color Metering

The M2 is a two-in, two-out desktop interface built around two XLR/TRS combo jacks that take a microphone, a line source or a Hi-Z guitar, each with its own preamp gain, 48V phantom and monitor switch. Outputs are duplicated on balanced quarter-inch TRS and unbalanced RCA, so a pair of powered monitors and a hi-fi amplifier can both stay connected, and there is a quarter-inch stereo headphone jack with its own level control.

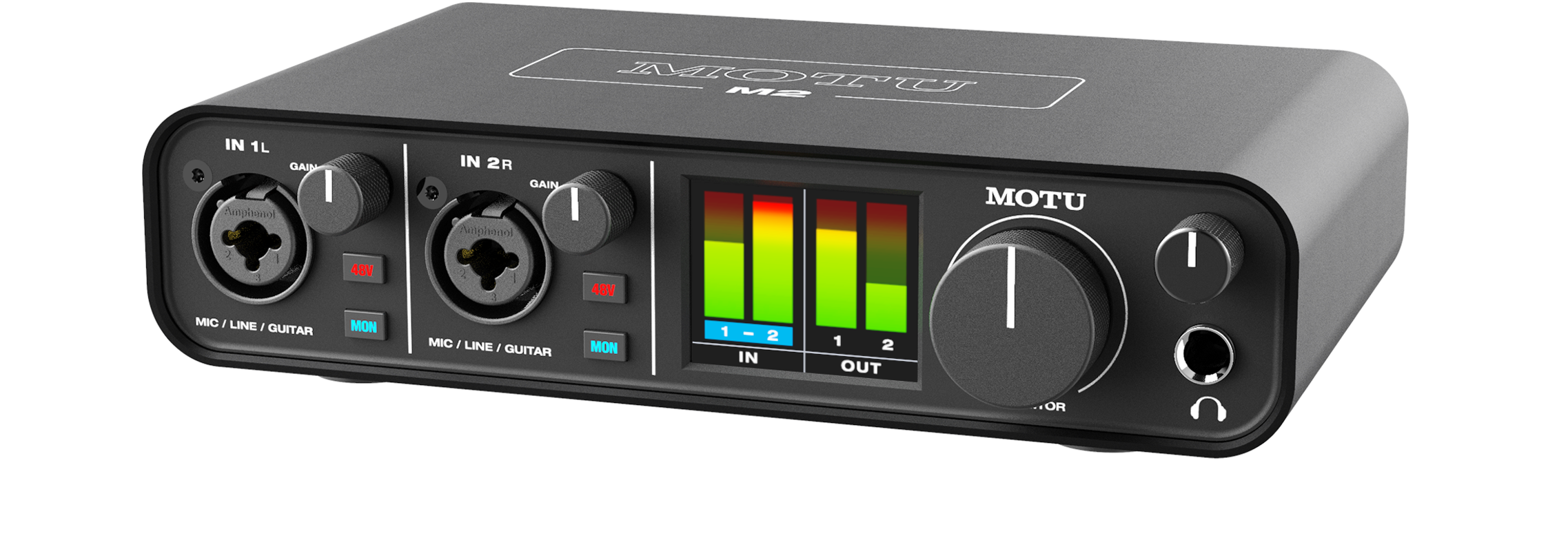

Rather than the usual pair of clip LEDs, the M2 carries a 160 x 128 full-color LCD showing input and output level meters, which is the difference between guessing at gain and setting it. Sample rates run to 192 kHz, a MIDI in and out pair carries 16 channels to the host, and the whole unit is bus-powered over USB-C and compatible with USB Type-A hosts. The enclosure measures 7.5 x 4.25 x 1.75 inches and weighs 1.35 lb.

Sample Rates	44.1, 48, 88.2, 96, 176.4, 192 kHz
Inputs	2 x XLR/TRS combo mic/line/Hi-Z guitar, independent gain, 48V and monitor switch
Analog Outputs	2 x 1/4 in TRS balanced (DC coupled), 2 x RCA unbalanced (mirrored)
Headphones	1 x 1/4 in TRS stereo with level control
MIDI I/O	1 x MIDI In, 1 x MIDI Out, 16 channels to and from host
Computer I/O	1 x USB-C 2.0 audio class compliant, USB Type-A compatible
Metering	160 x 128 full-color LCD, input and output level meters
Dimensions and Weight	7.5 x 4.25 x 1.75 in (19.05 x 10.8 x 4.5 cm), 1.35 lb / 0.61 kg
