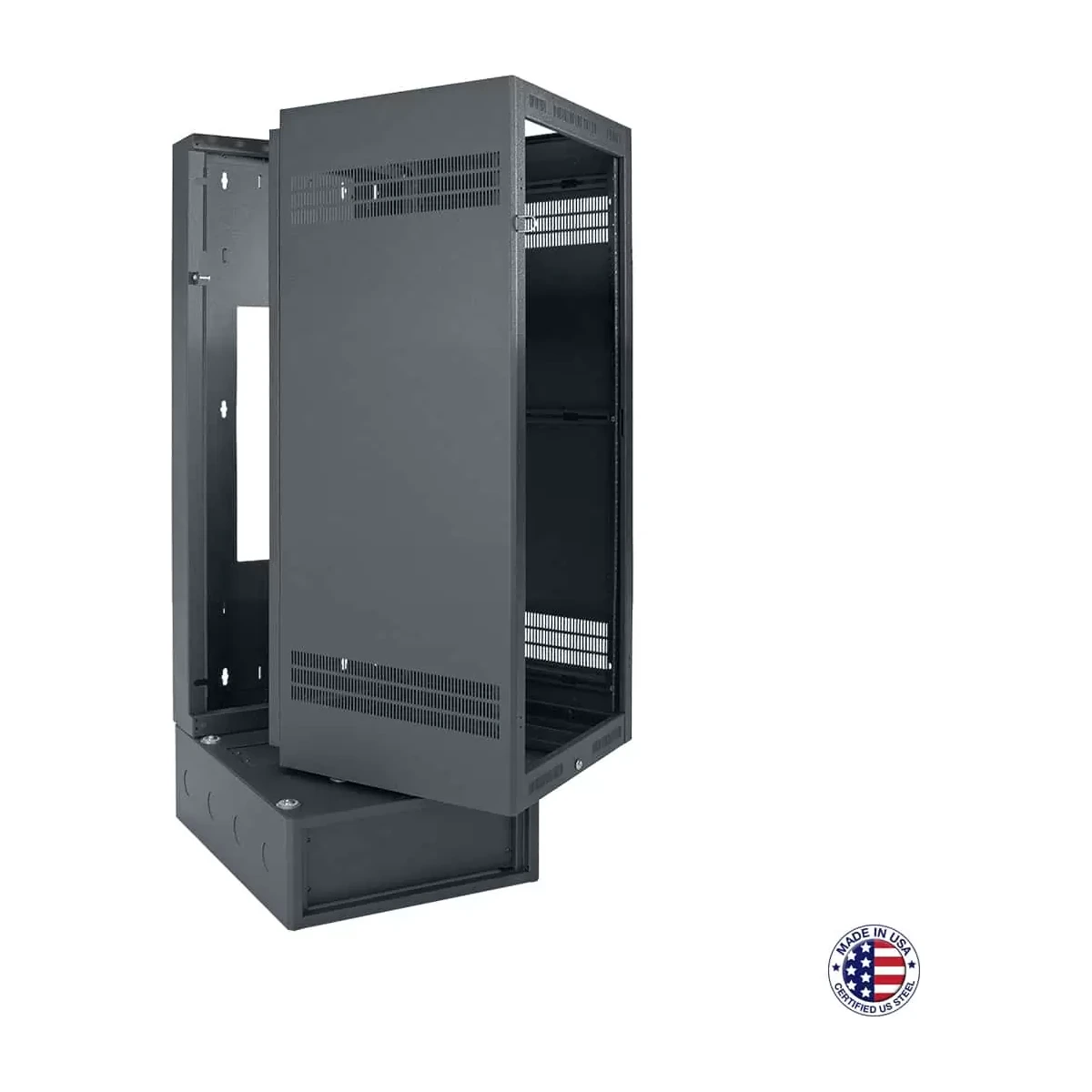

Lowell LWBR-2428 Wall Rack w Base 24Ux28D

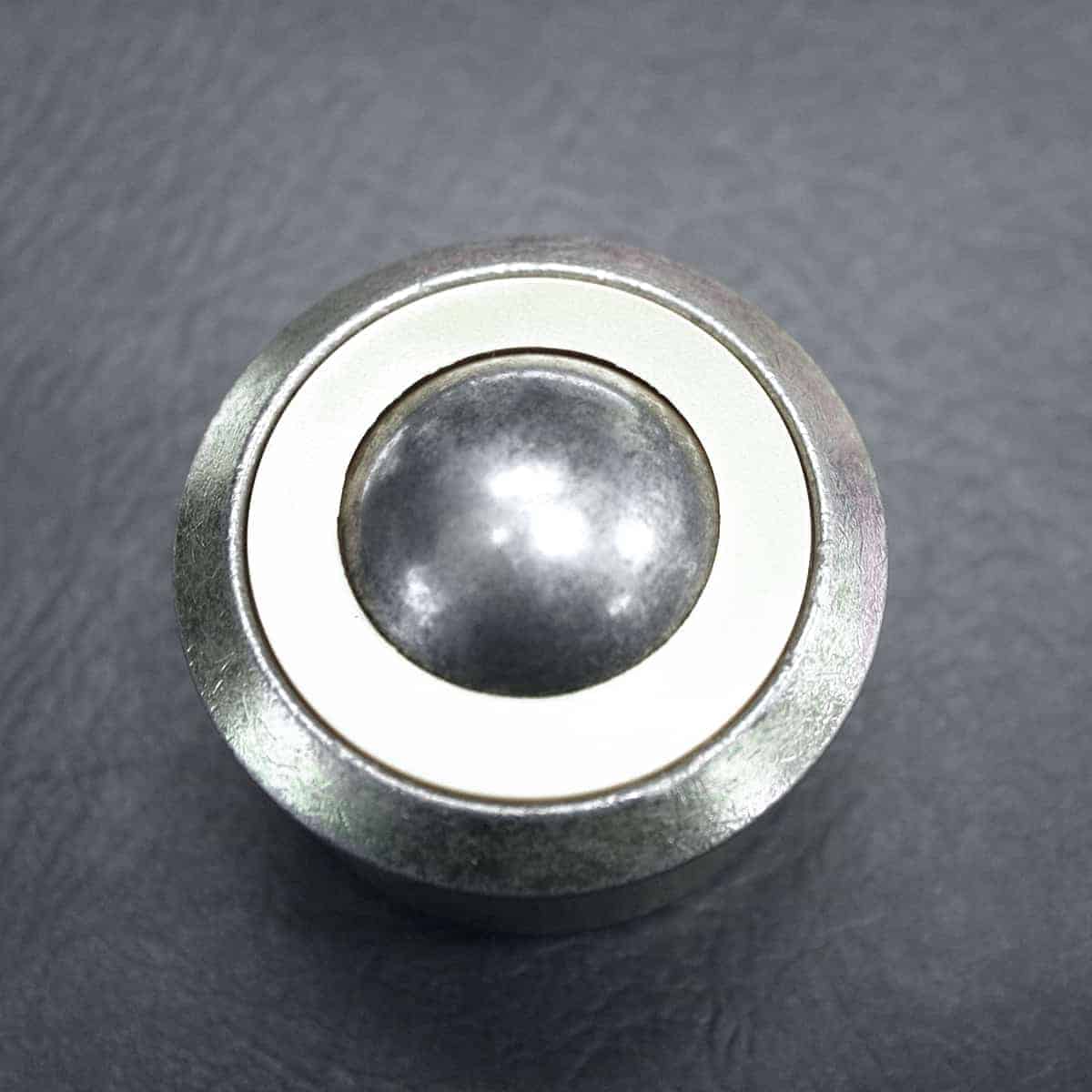

The Lowell LWBR-2428 is an EIA-compliant wall-mount rack. Lowell specifies one-pair adjustable mounting rails, tapped 10-32, support base (4U) has access panels and stainless steel ball transfers to support cabinet, black-textured powder-coat finish and pilot point screws with captive washers.

Ordered as Lowell part number LWBR-2428. Lowell rates it TAA compliant, BAA compliant, EIA/TIA compliant, USA-certified steel. Specifications as published by Lowell Manufacturing.

Rack Space	24U (+4U in base)
Knockouts	Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit.
Height	57.77 in.
Width	23.06 in.
Depth	28.40 in. (26 usable)
Load Capacity	500 lbs.
Finish	Black-textured powder-coat finish
Compliance	TAA compliant, BAA compliant, EIA/TIA compliant, USA-certified steel
