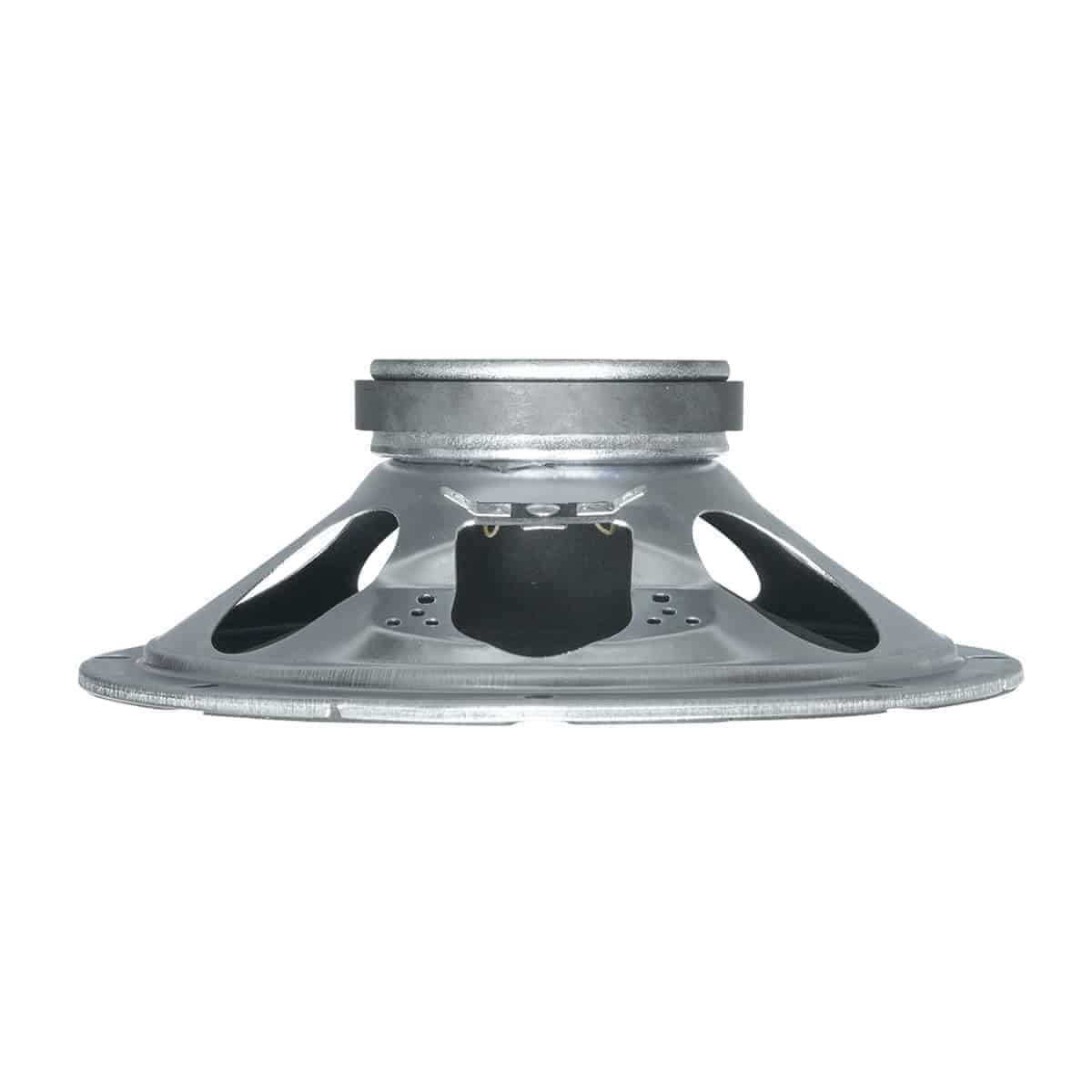

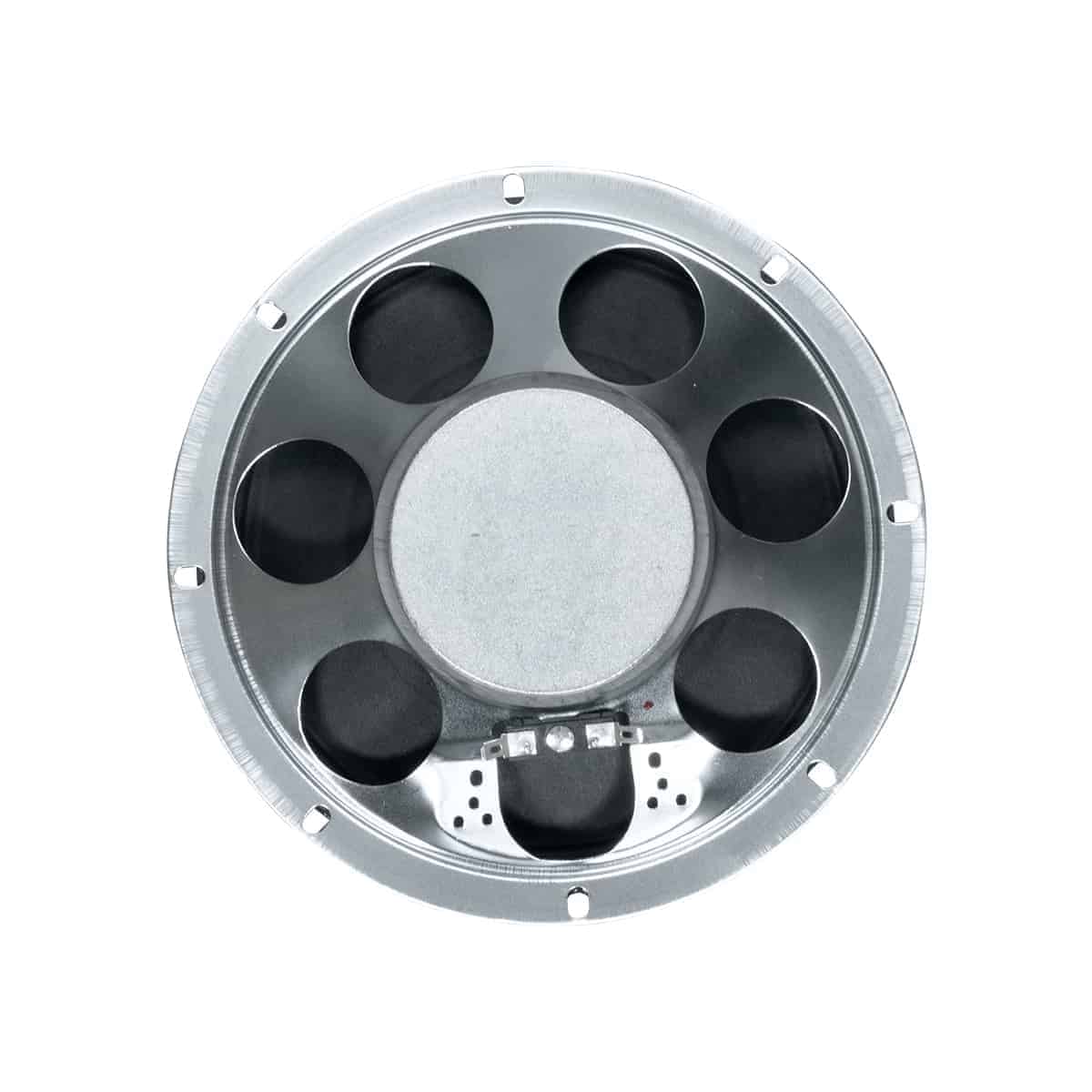

Lowell 810 8-Inch Dual-Cone Speaker Driver
The Lowell 810 is an 8-inch dual-cone speaker driver rated at 15 watts RMS, a step up from Lowell's commercial-standard drivers for paging and background music that needs to sound full, not just loud. A seamless molded fiber cone with a 3/4-inch hard fiber whizzer covers the highs, and it spreads sound over a 95-degree cone.
It uses a 10 oz. ceramic magnet and a 1-inch voice coil on a zinc-plated 20-gauge steel frame, with 8 ohm impedance and 97.9 dB sensitivity at 1 W/1 m. The driver is 8.062 inches across, mounts on a 7.625-inch bolt circle and needs 2.84 inches of depth. It is made in the USA and TAA and BAA compliant.
- Sensitivity97.9 dB SPL (1 W/1 m)
- Power15W
- Mounting Depth2.84 in
- Diameter8 inch
- Magnet10 oz. ceramic
| Diameter | 8 inch |
|---|---|
| Power | 15W |
| Magnet | 10 oz. ceramic |
| Voice coil | 1 inch |
| Frame | 20-gauge steel, zinc-plated |
| Cone | 3/4-inch hard fiber whizzer |
| Compliance | TAA, BAA |
| Impedance | 8 ohms |
| Sensitivity | 97.9 dB SPL (1 W/1 m) |
| Dispersion | 95 degrees conical |
| Overall Diameter | 8.062 in |
| Mounting Depth | 2.84 in |
| Bolt Circle | 7.625 in |
