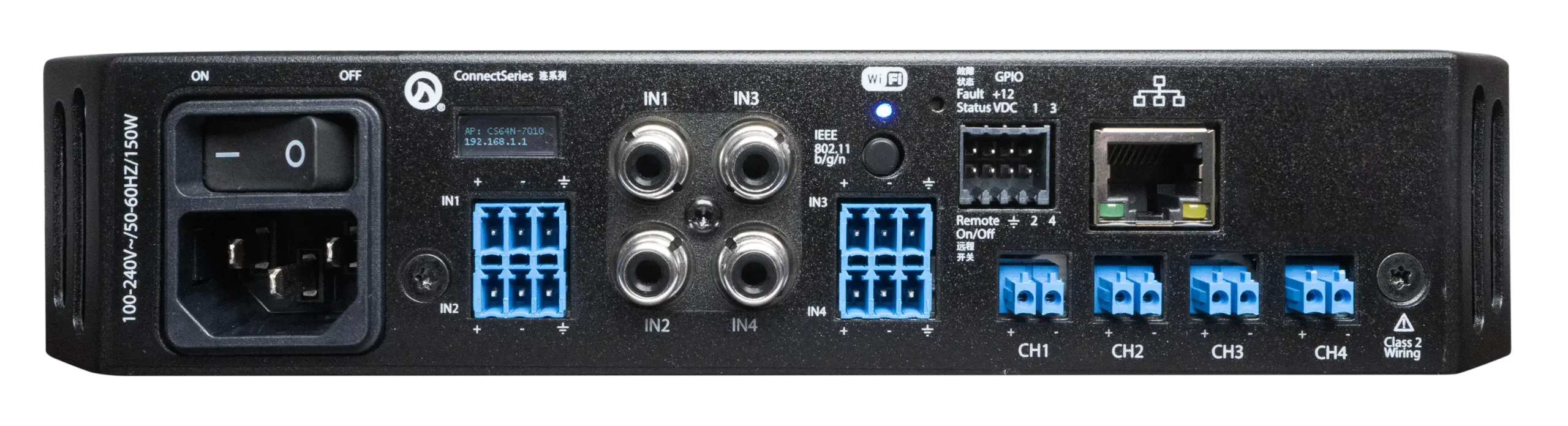

LEA Professional Connect 64 4-Channel Half-Rack Smart Amplifier

The LEA Professional Connect 64 packs the full Connect Series feature set, 96 kHz DSP, WebUI, SharkWare, LEA Cloud, and third-party API control, into a half-rack chassis. Four channels deliver 60 W each into 4 ohms, 8 ohms, 70V or 100V, with Lo-Z or Hi-Z selectable per channel, for small install jobs where a full 1U amplifier would be more rack space than the zones need.

Inputs cover both balanced XLR and unbalanced RCA, with selectable sensitivity levels down to mic level, so it can take a direct feed from a paging mic or mixer without an external preamp. The Analog Devices Sigma 96 kHz DSP handles parametric EQ, crossovers, and per-channel output delay, and the whole amplifier runs from a universal switch-mode supply on 100 to 240 VAC.

Channels	4
Output per Channel	60 W at 4 ohms, 8 ohms, 70V and 100V; 30 W at 2 ohms
Amplifier Class	Class D with Smart Power Bridge
Inputs	Balanced XLR and unbalanced RCA, selectable sensitivity down to mic level
THD+N	0.1% (20 Hz to 20 kHz)
Frequency Response	20 Hz - 20 kHz, +/- 0.5 dB
Signal to Noise	102 dB (20 Hz to 20 kHz, referenced to 8 ohms)
DSP	Analog Devices Sigma 96 kHz, 32-bit core, parametric EQ, crossovers, output delay
Power Supply	Universal switch-mode, 100 - 240 VAC
Dimensions / Weight	11.82 x 8.58 x 1.71 in / 7 lb
