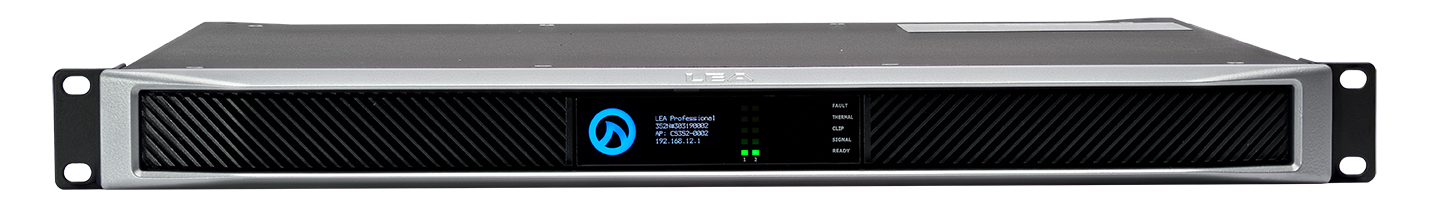

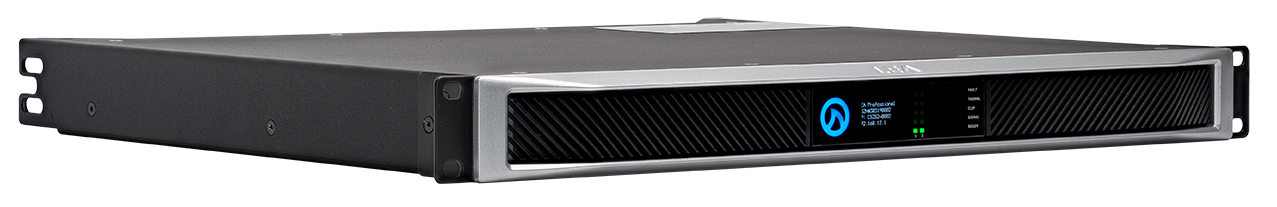

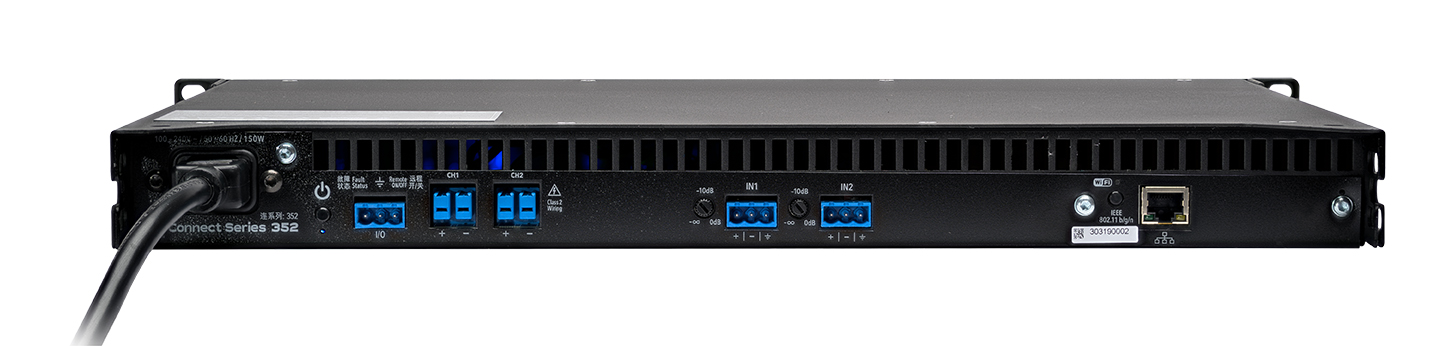

Name: LEA Professional Connect 352 2-Channel Smart Amplifier
Brand: LEA Professional
SKU: CS352
Availability: InStock

The LEA Professional Connect 352 is an IoT-enabled install amplifier with 2 channels rated at 350 W each into 4 ohms, 8 ohms, 70V or 100V, with Lo-Z or Hi-Z output selectable per channel. It sits between the CS254 and CS702 in the Connect Series lineup, right-sized for small to medium venues where 350 watts a side covers the room without paying for headroom that never gets used.

Setup and monitoring run in a web browser with no software to install, reached through the amplifier's own Wi-Fi access point, an existing wireless network, or a wired LAN, with remote access through LEA Cloud. Onboard processing is a 96 kHz Analog Devices Sigma DSP with a routable input matrix, 48 dB per octave crossovers, eight bands of parametric EQ per channel, and real-time load monitoring. The D model adds Dante audio over IP alongside the analog inputs.

Channels	2
Output per Channel	350 W at 4 ohms, 8 ohms, 70V and 100V; 175 W at 2 ohms
Amplifier Class	Class D with Smart Power Bridge
Inputs	2 balanced analog, user-selectable 26 dB / 34 dB input sensitivity
THD+N	0.1% (20 Hz to 20 kHz)
Frequency Response	20 Hz - 20 kHz, +/- 0.5 dB at 4, 8 ohms, 70V and 100V
Signal to Noise	105 dB (20 Hz to 20 kHz)
DSP	Analog Devices Sigma 96 kHz, 32-bit core, 48 dB/oct crossovers, 8 parametric EQ
Power Supply	Universal switch-mode, 100 - 240 VAC +/- 15%, 50/60 Hz
Dimensions	14.25 x 19 in, 1U rack (362 x 482 mm)
Weight	10 lb (4.5 kg)
