Name: Kramer FC-22ETH 2-port Serial Control Gateway
Brand: Kramer
Price: 375.00 USD
Availability: InStock

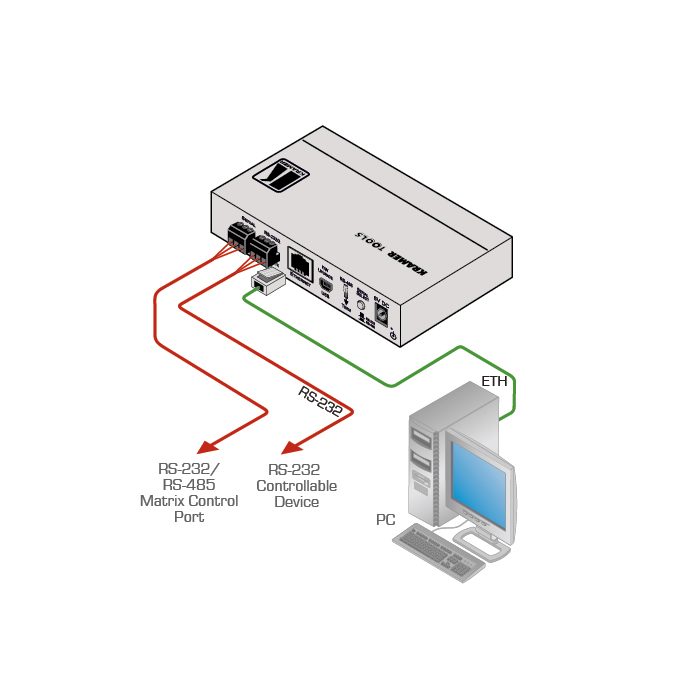

The FC-22ETH bridges serial control gear onto an IP network. It carries one selectable RS-232/RS-485 port and one RS-232 port on 3-pin terminal blocks, plus an Ethernet RJ-45, so a control system can reach projectors, screens and legacy switchers that only speak serial. A mini USB connector handles local service work.

RS-232 traffic passes transparently up to 115200bps and the unit handles up to 150kbps summed across all ports. Front-panel controls cover serial mode select, the RS-485 terminator, DHCP and factory reset, with status LEDs for power, Ethernet and each serial path. It is configured from built-in web pages and is supported by Kramer Control, K-Touch and K-Config.

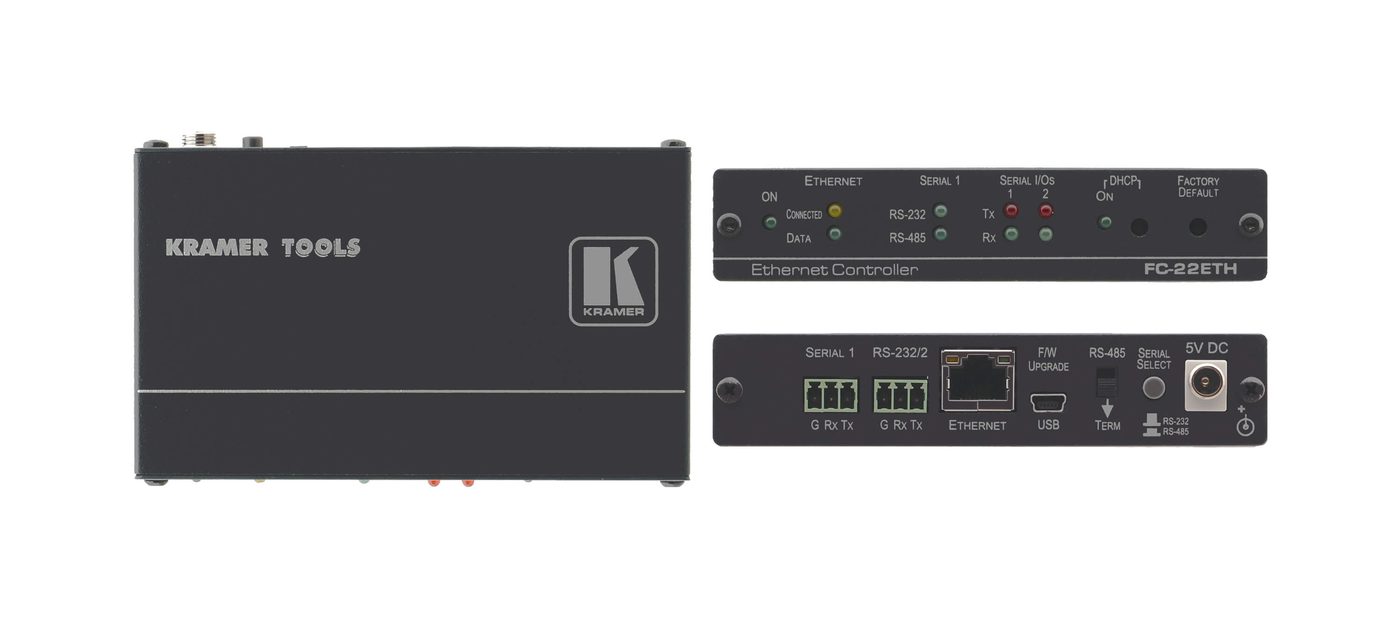

Ports	1 RS-232/RS-485 selectable and 1 RS-232 serial on 3-pin terminal blocks, 1 Ethernet on an RJ-45 connector, 1 mini USB connector for local services
RS-232 Communication	Transparent up to 115200bps
Maximum Data Handling	Up to 150kbps summed on all ports
Controls	Serial Select button, RS-485 terminator switch, DHCP and Factory Default buttons
Indicators	Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs
Power Consumption	5V DC, 200mA
Operating Temperature	0 to +40 deg C (32 to 104 deg F)
Enclosure Type	Aluminum
Included Accessories	Power adapter
Dimensions	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") W, D, H
Weight	0.2kg (0.4lbs) approx.
Supported by	Kramer Control, K-Touch and K-Config
