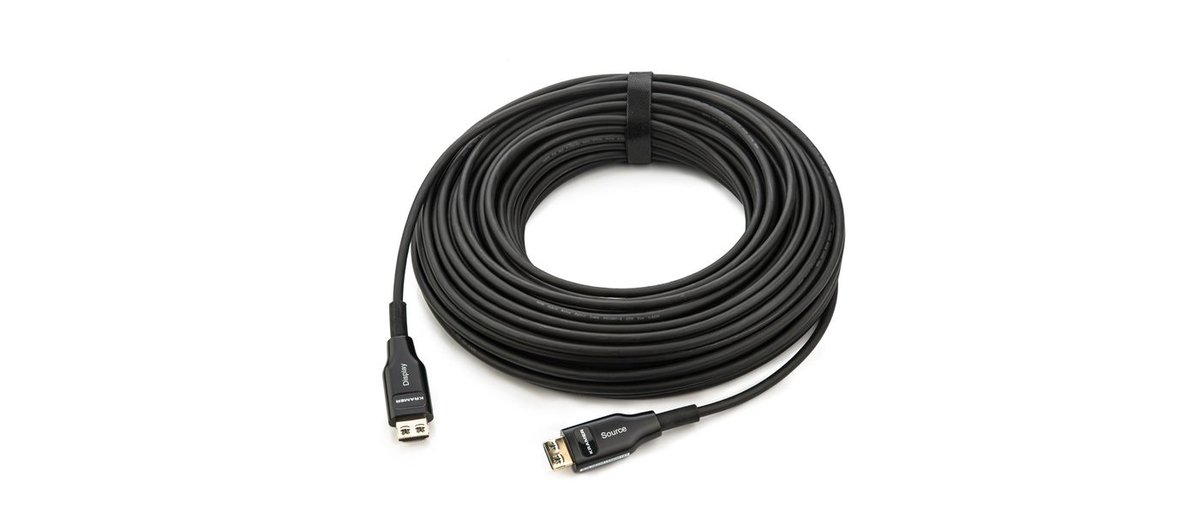

Kramer CP-AOCH/60F High-Speed HDMI Optic Hybrid Cable - Plenum Rated

CP-AOCH/60F is an innovative active optical HDMI cable for 4K signals up to 90 meters (295ft). CP-AOCH/60F cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CP-AOCH/60F cables are an ideal solution for maximizing signal integrity in critical AV installations. Video Resolution - Up to 4K@60Hz (4:4:4). High Data Transfer Rate - Up to 18Gbps. Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio. HDMI Support - HDCP 2.2/1.4, HDR, EDID, ARC and CEC. High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity. Reduced EMI & RFI. Thin Construction - 4.5mm diameter. Jacket Construction - Plenum rated. RoHS 2011/65/EU CE,FCC Compliant. Varied Selection of Lengths - Available in versions from 10 to 90m (33 to 295ft).

Max Resolution4K@60Hz
Supported Color SpacesRGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI SupportHDR, HDCP 2.2/1.4, EDID and CEC, ARC
Supported Audio FormatsDolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
HDMI SourceOn a male HDMI type A, 24K gold-plated K-Lock connector
HDMI DisplayOn a male HDMI type A, 24K gold-plated K-Lock connector
Cable TypeHybrid with OM3 fiber and copper wire
O/E Converter4 channel 850 nm VCSEL array
MaterialBare Copper
Cable Bending Radius20mm
ColorBlack
Diameter4.5mm
Consumption250mW (max)
Operating Temperature50C
Storage Temperature-40-70C
SafetyCE/FCC
EnvironmentalREACH,RoHS 2011/65/ EU
