Kramer CP-AOCH/PF Pure fiber Optical Armored 4K HDMI Cable
CP-AOCH/PF cable is a pure fiber high-speed HDMI active optical cable (AOC) designed with heavy-duty durability perfectly suited for the medical and sensitive EMI applications. CP-AOCH/PF supports resolutions up to 4K@60 (4:4:4) 18 Gbps over long cable runs up to 100 meters. High Resolution over Long Range - Active cable supports resolutions up to 4K@60 (4:4:4) over long cable runs up to 100 meters. High Data Transfer Rate - Up to 18 Gbps. EDID and HDCP support. Deep Color and x.v.Color, 5.1/7.1 lossless Dolby TrueHD and DTS-HD Master Audio High-quality connectors: 24K gold-plated, corrosion-resistant and best possible connectivity Pull-resistant - K-Lock connectors with 15 lbs. of restraining force Plug & Play operation Cable construction - 8xMM fiber in a 4.0mm plenum rated jacket. Extremely Durable - integrated. stainless steel, corrugated tube with Kevlar reinforcement protects the internal optical fibers. A TPU jacket, heavy duty connectors and robust waterproof & impact resistant connector covers ensure high pulling strength and compression load. Dispensed from a solid, mobile plastic spool. Varied Selection of Lengths - Available in versions from 10 to 100m (33 to 328ft).
| Video Resolution | Up to 4K 60Hz 4:4:4 (3840x2160 & 4096x2160) |
|---|---|
| Data Rate | Up to 18 Gbps |
| HDMI Compliance | HDCP and EDID |
| Supported audio formats (when Audio is enabled) | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD |

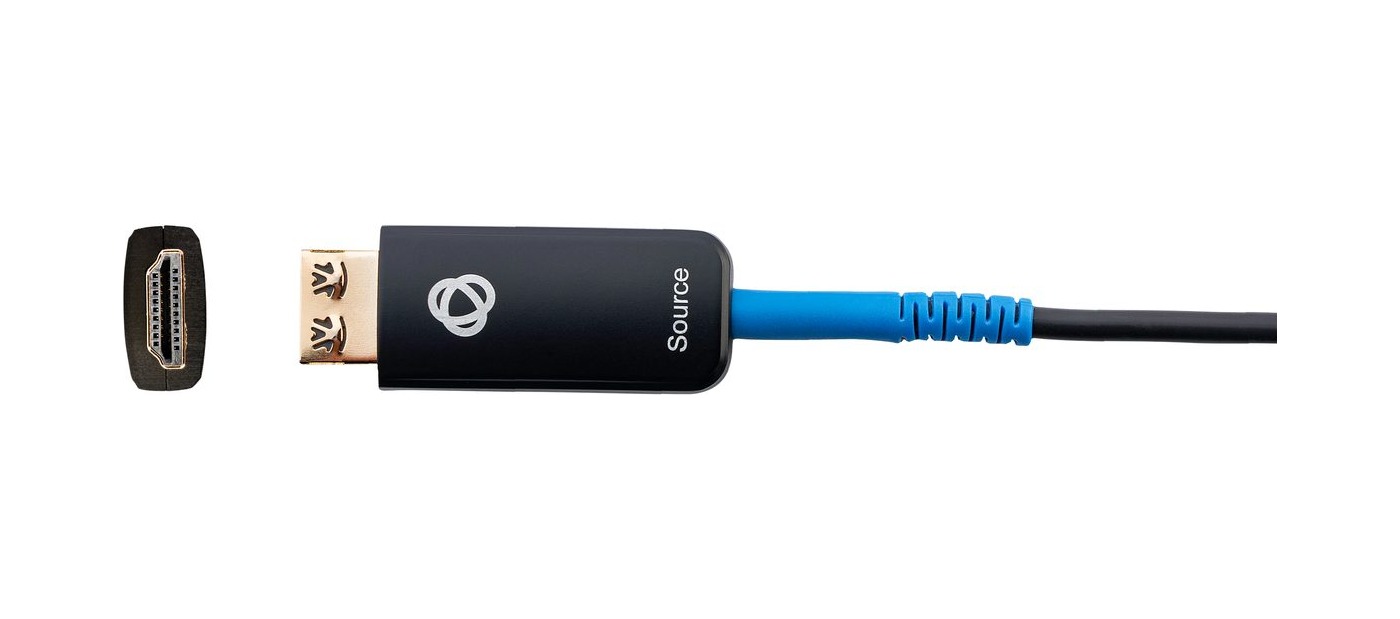

| Connector-1 (source end) | Male HDMI Type A, 24K gold-plated |
| Connector-2 (display end) | Male HDMI Type A, 24K gold-plated K-Lock |
| Cable material | Plastic shell with aluminum shield over the PCBA |
| Cable construction | 8xMM fiber cable OM3 |
| Long term crush resistance | 500N(50kg) |
| Short term crush resistance | 2000 (200kg) |
| Bending radius | 20mm Min |
| Long term tensile strength test | 80(8kg) |
| Short term tensile strength test | 150(15kg) |
| Strain Relief (SR) pulling force | 12kg max |
| Material | PVC Plenum rated |
| Color | Black |
| Diameter | 4.0+/-0.3mm |
| Source | No external power supply is needed (draws current from the video source) |

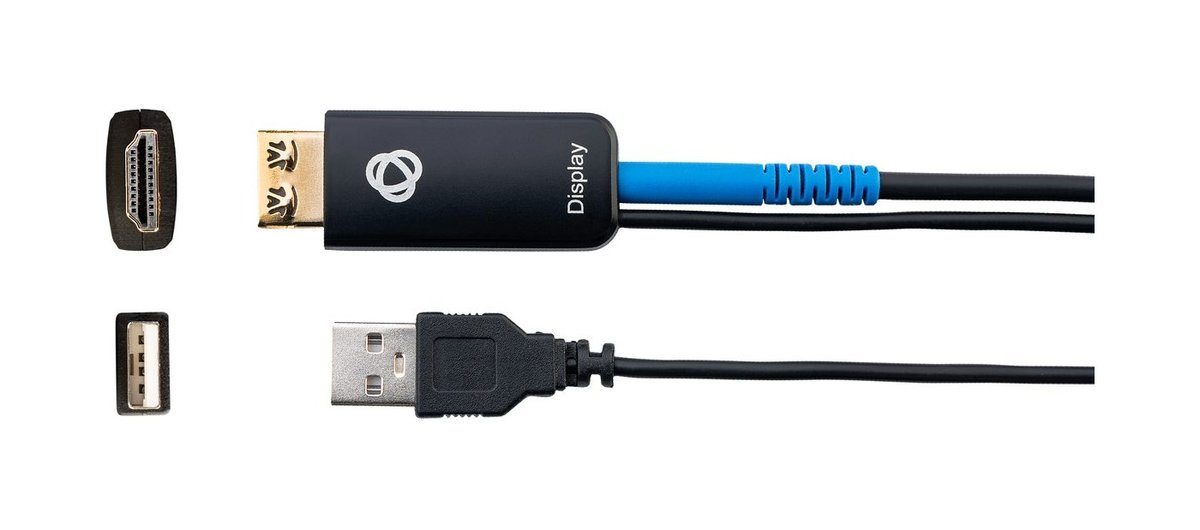

| Display | Need to connect the USB type A connector for external power supply |
| Operating Temperature | +32~+122F (0~+50C) |
| Storage Temperature | -40~+158F (-40~+70C) |
| Operating Humidity | 10 ~ 80% |
| Environmental | CE, FCC, TUV for UL 62368-1:2019 CSA C22.2 NO. 62368-1:19 |
| Safety | RoHS 2011/65/ EU |
