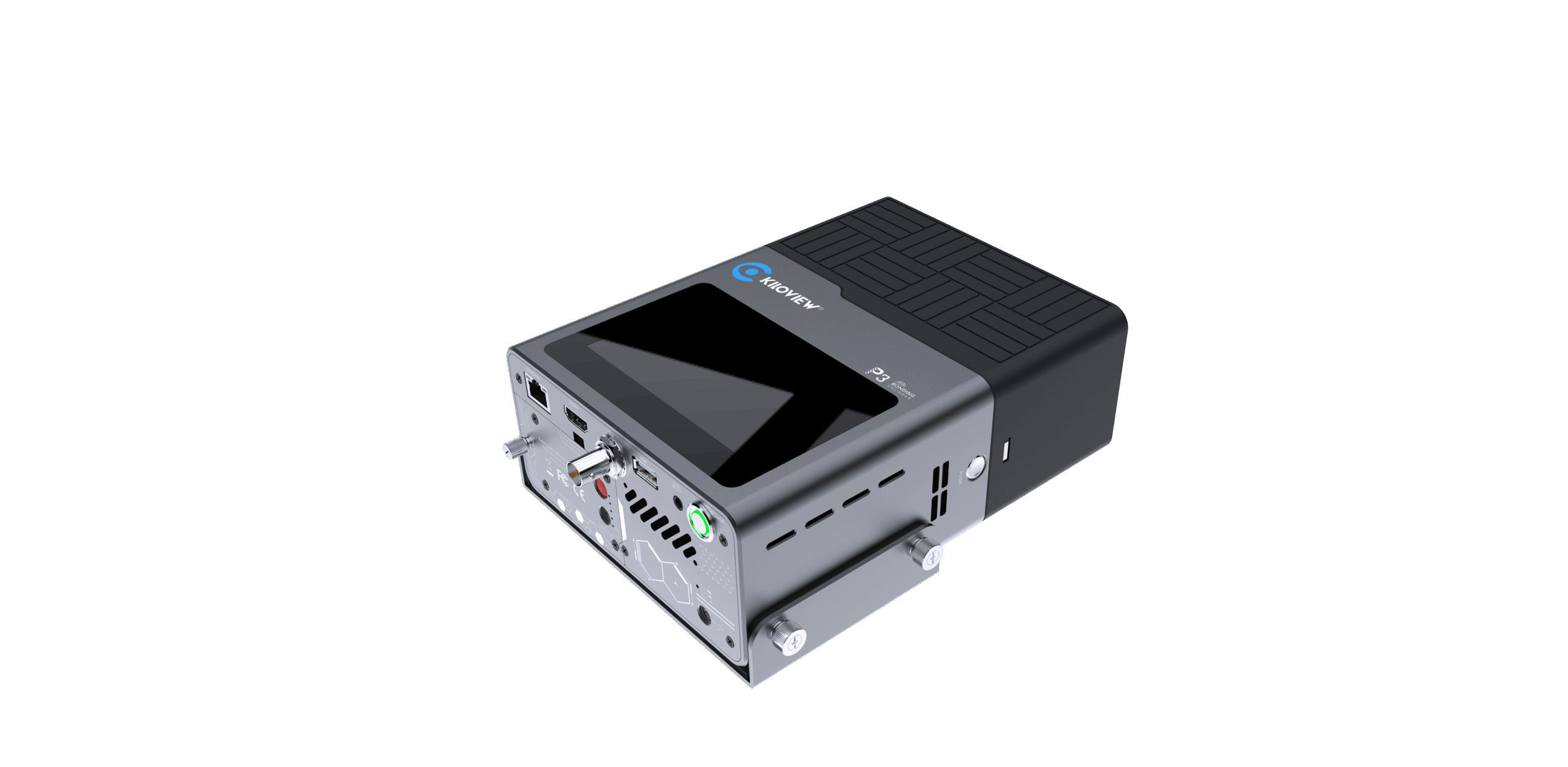

Kiloview P3 5G Wireless Bonding Encoder

The P3 is built for streaming from places with no reliable connection. It bonds multiple 5G, Wi-Fi and wired links into one aggregate path, so a single carrier going soft does not take the broadcast with it. That is the difference between a live shot from a stadium concourse and an apology.

Inputs are 3G-SDI, HDMI 1.4b and USB-A, encoded as H.265, H.264 or M-JPEG at up to 4K30 on HDMI. Output protocols cover NDI HX2 and HX3, SRT, RTMP, RTMPS, HLS, WHIP, TS over UDP and RTSP. Audio arrives on a 3.5mm line input and encodes as AAC or G.711.

Video Port	1x 3G-SDI 1x HDMI 1.4b 1*USB-A
Video Encoding	H.265(HEVC), H.264(AVC), M-JPEG
Streaming Protocols	NDI HX2/NDI HX3/SRT/RTMP/ RTMPS/ HLS/WHIP/TS over UDP/RTSP
Audio Port	1*3.5mm Line in
Audio Encoding	AAC, G.711
Audio Channels	* 4-channel SDI embedded audio * 4-channel HDMI embedded audio * 4-channel USB embedded audio * 1*3.5mm Line in 2-channel audio
Bonding Performance	4 channels of 5G/4G cellular network, WiFi (2.4G/5G), Ethernet
Network Port	1 x 1000Mbps Ethernet Ports
