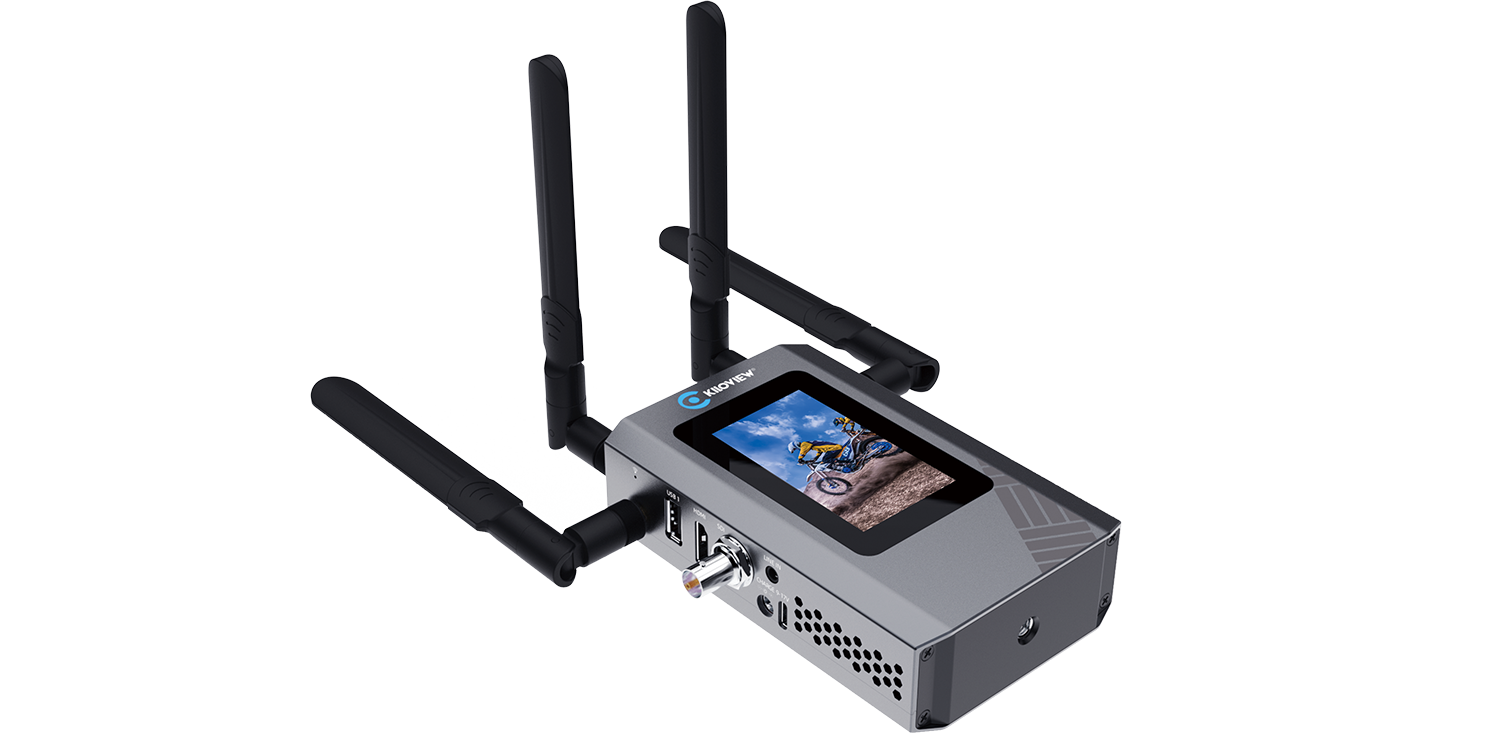

Kiloview P3 Mini 4G Wireless Bonding Encoder

The P3 Mini is the compact member of Kiloview's bonding encoder line. It aggregates 4G, Wi-Fi and wired connections into a single resilient uplink, which is what lets a one-person crew go live from a location with no venue network to borrow.

It takes 3G-SDI, HDMI 1.4b and USB, encodes in H.265, H.264 or M-JPEG, and streams as NDI HX2 or HX3, SRT, RTMP, RTMPS, HLS, TS over UDP or RTSP. HDMI input handles 1080p up to 60fps. A 3.5mm line input carries audio, encoded as AAC or G.711.

Video Port	1x 3G-SDI 1x HDMI 1.4b 1* USB-A USB-C
Video Encoding and Decoding	H.265(HEVC), H.264(AVC), M-JPEG
Streaming Protocols	NDI HX2 / NDI HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTSP
Audio Port	1*3.5mm Line in
Audio Encoding	AAC, G.711
Audio Channels	* 4-channel SDI embedded audio * 4-channel HDMI embedded audio * 4-channel USB embedded audio * 1*3.5mm Line in 2-channel audio
Bonding Performance	3 channels of 4G cellular network, WiFi (2.4G/5G), Ethernet
Network Port	1 x 1000Mbps Ethernet Ports
