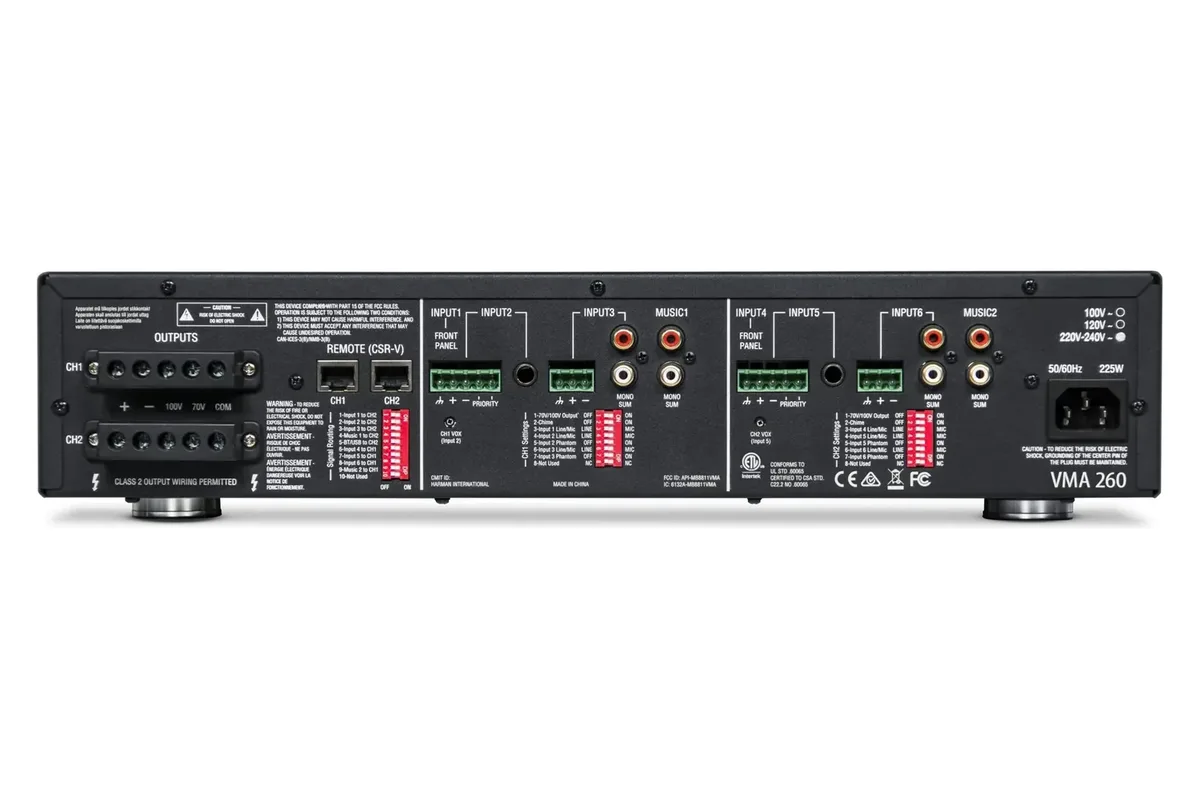

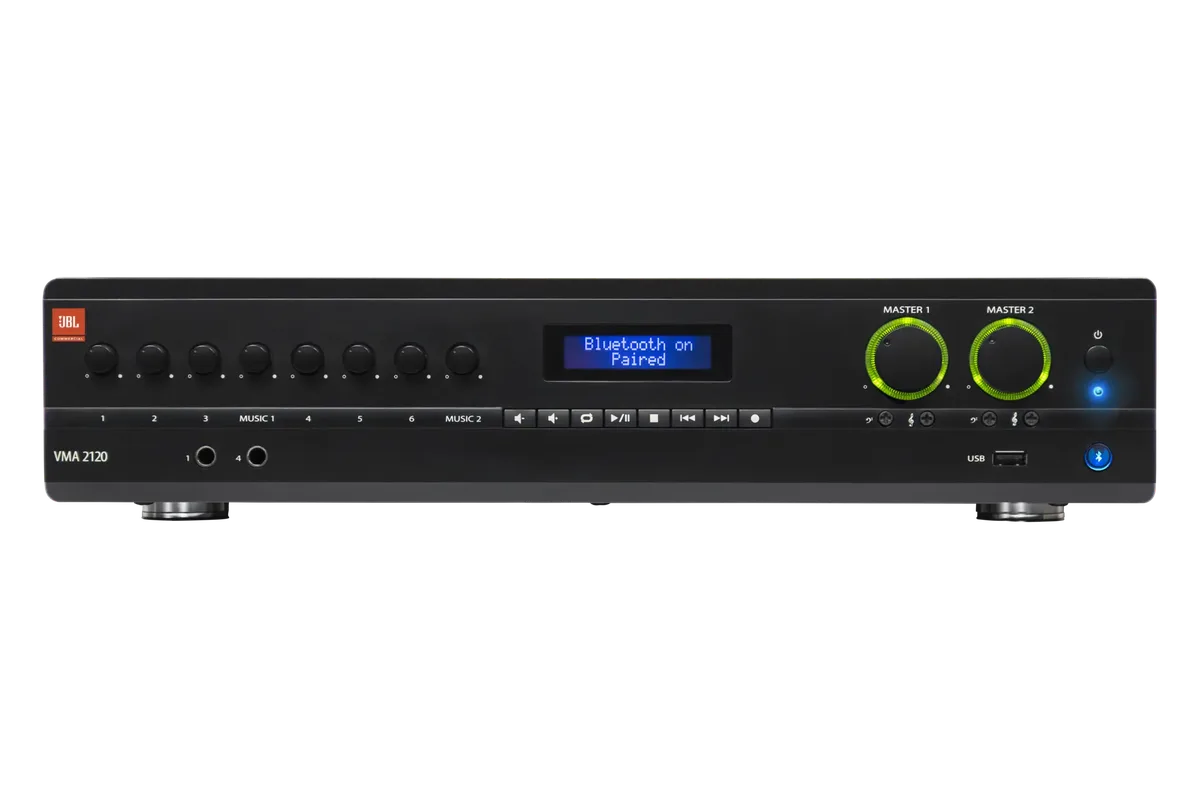

JBL VMA 260/2120 8 input x 60/120W output Mixer/Amplifiers

The VMA 260/2120 is a 8 input x 60/120W output Mixer/Amplifiers, from JBL's Commercial Series electronics range. Frequency range is (measured at 2.83VRMS into rated load impedance at any output) 4/8 Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB. JBL rates it at into 4 or 8; 1kHz, 0.5% THD - VMA260: 60W VMA2120: 120W.

It measures Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm). Net weight is VMA260: 25.5 lb (11.6 kg) VMA2120: 29.3 lb (13.3 kg). Ordering covers VMA260 and VMA2120; pick the one you need above and the SKU and price follow your choice.

Type	8 input x 60/120W output Mixer/Amplifiers
Max Output Power per Channel	Into 4 or 8; 1kHz, 0.5% THD - VMA260: 60W VMA2120: 120W
Insertion Loss	(70V & 100V outputs) 1dB maximum
Number of Inputs	8
Number of Outputs	2
Tone Controls	(Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity	(to obtain full rated power into 8 load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response	(measured at 2.83VRMS into rated load impedance at any output) 4/8 Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD)	(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
