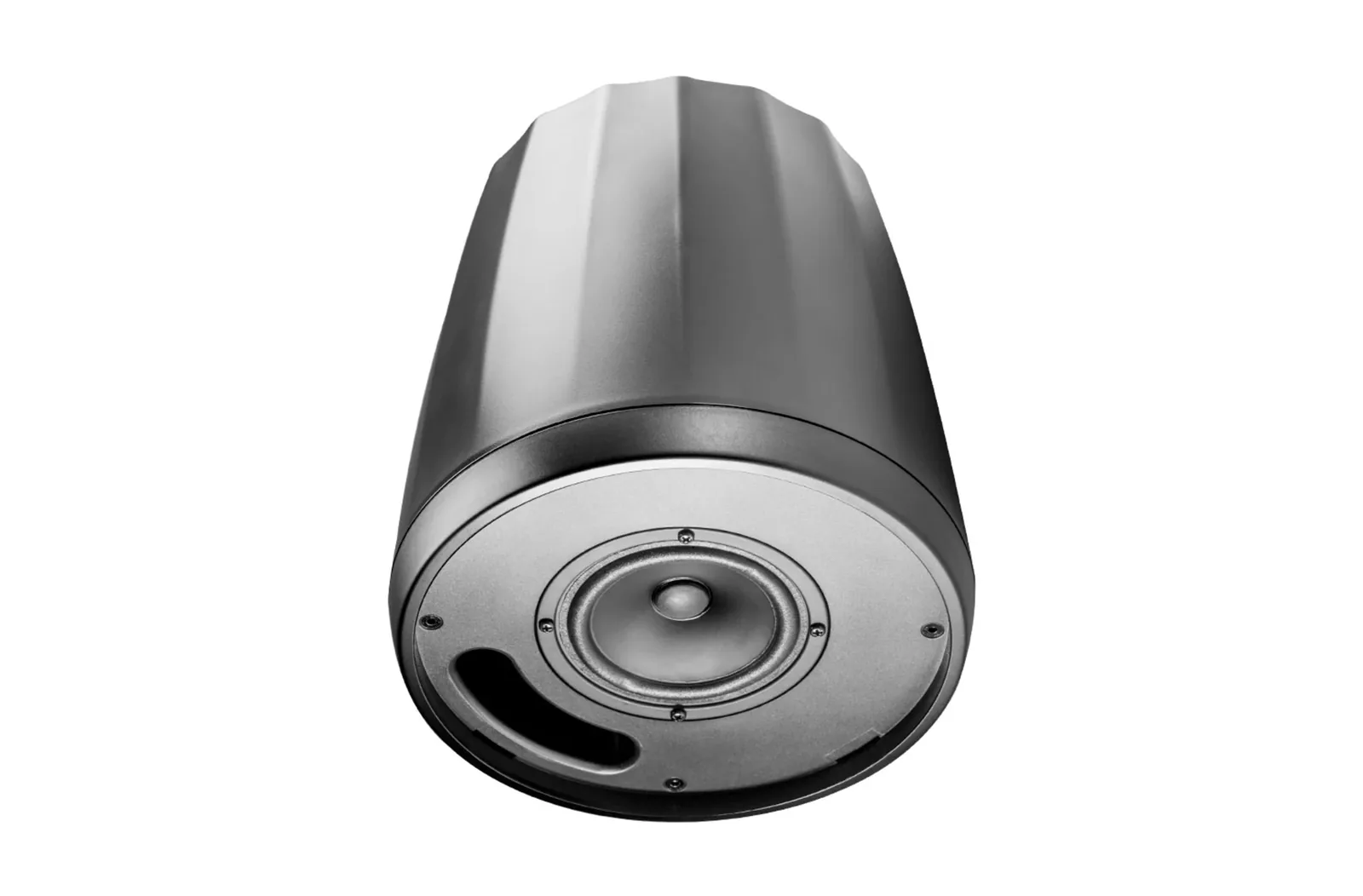

JBL Control 64P/T Compact Full-Range Pendant Loudspeaker

The Control 64P/T is a compact full-range pendant loudspeaker, from the Control Contractor installed range. Transducers are 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil. Nominal coverage is 120 degrees conical. Frequency range is 65 Hz - 15 kHz. JBL rates it at 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs). Maximum SPL at 1 m is 105 dB continuous pink noise, 111 dB peak.

The enclosure is High impact polystyrene. The grille is Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting). Transformer taps are 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W. It measures 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket. Net weight is 2.35 kg (5.2 lbs). In the box: Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
