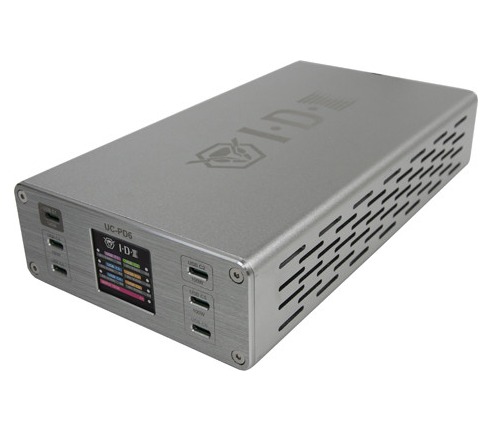

IDX UC-PD6 6-Port USB-C PD Charger

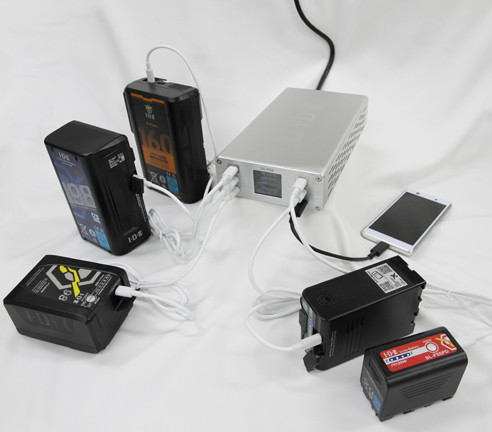

The UC-PD6 scales the UC-PD line up to six USB-C Power Delivery ports for a truck or charging station serving a full battery inventory: DUO-CP V-mount, Imicro-P, Zenith Gold Mount, SB-U, SL-F and HV B-mount packs. The lead port runs PD3.1 at up to 140W, and the remaining five ports pair up at 100W combined per pair, so several packs charge at meaningful speed at once instead of queueing on a single-port brick.
At 440W total output and a compact footprint, it replaces a shelf of single chargers with one unit that plugs into a standard outlet.
| Ports | 6x USB-C PD |
|---|---|
| Port 1 Output | Up to 140W (USB PD3.1) |
| Ports 2-6 Output | Up to 100W each, 100W combined per pair |
| Total Output | 440W max |
| Input | AC 100-240V, 50/60Hz |
| Dimensions | 4.72 x 1.85 x 8.85 in (W x H x D) |
| Weight | 2.65 lbs |
| Compatible Batteries | DUO-CP, Imicro-P, Zenith (ZEN-CG), SB-UPD, SL-FPD, HV B-mount |
