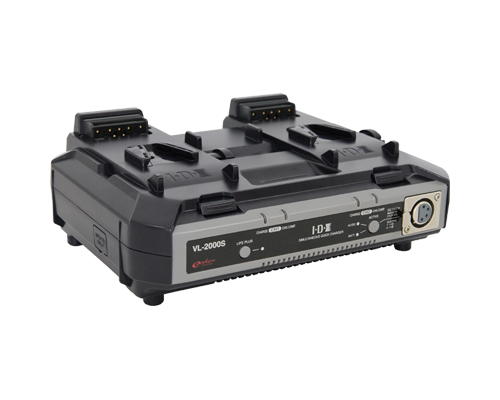

IDX VL-2000S 2-Channel Simultaneous V-Mount Charger with 100W DC Output

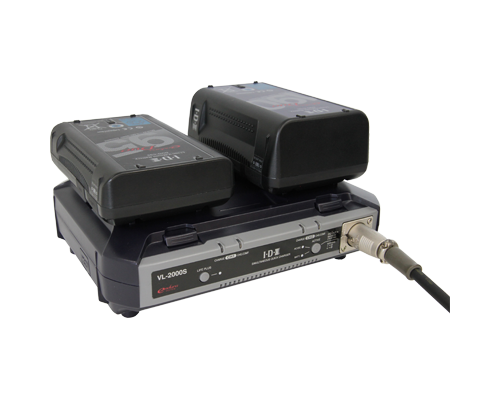

The VL-2000S charges two V-Mount lithium-ion packs at the same time rather than one after the other, at 4A on a single battery or 3A each on two, which is the difference between a full set overnight and a full set by lunch. It also carries a 100W DC output on 4-pin XLR at 14.5V and 6.7A.

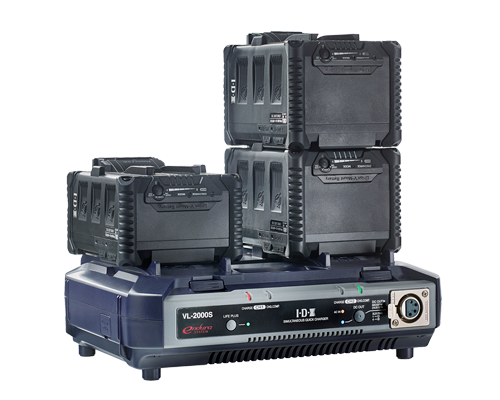

That output feeds from Power Base mode, where the mounted batteries themselves supply the XLR, so the charger becomes a bench supply on location. LIFE PLUS mode extends usable battery life by up to 20 percent, Recovery Charge safely brings low-voltage packs back with a reduced pre-charge current, and automatic power management shuts the unit down when it is left idle.
| Channels | 2, fully simultaneous |
|---|---|
| Mount | V-Mount |
| Chemistry | Lithium-ion |
| Charge Current | 4A with 1 battery, 3A each with 2 batteries |
| DC Output | 100W on 4-pin XLR (14.5V, 6.7A) |
| Power Base Mode | Mounted batteries supply the DC output |
| LIFE PLUS Mode | Extends battery life by up to 20 percent |
| Recovery Charge | Safely charges low voltage batteries |
| Power Management | Automatic shutdown when inactive |
