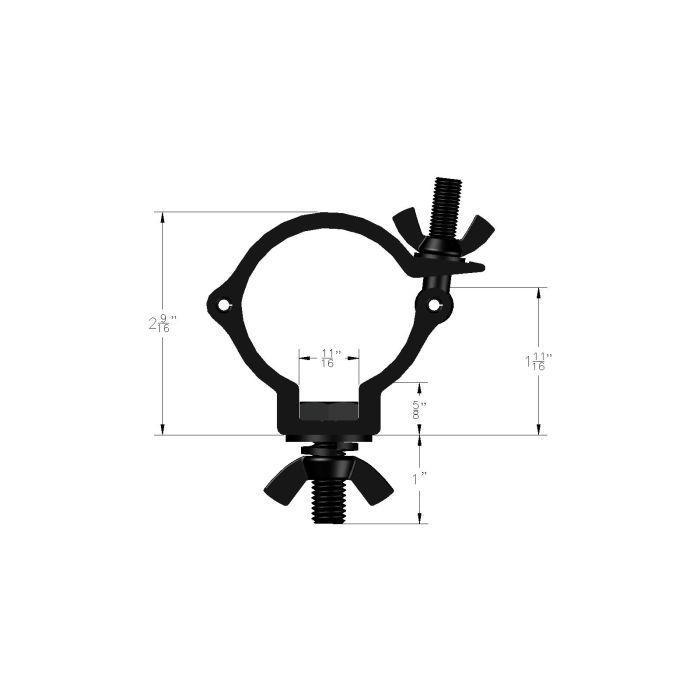

Global Truss Mini 360 Blk

Compact 360 degree clamp, black powder coat. It is built for F31, F32, F33, F34, DT44P truss.

Manufacturer part number CLM0378. Rated load capacity is 100 kg. Unit weight is 0.32 lbs.

Compatible WithF31, F32, F33, F34, DT44P truss
Minimum Tubing Diameter48mm
Maximum Tubing Diameter51mm
Profile Width30mm
Load Capacity100 kg
Bolt SizeM10 x 30mm, 1.5 coarse pitch
FinishBlack powder coat
Unit Weight0.32 lbs
Case Qty80
