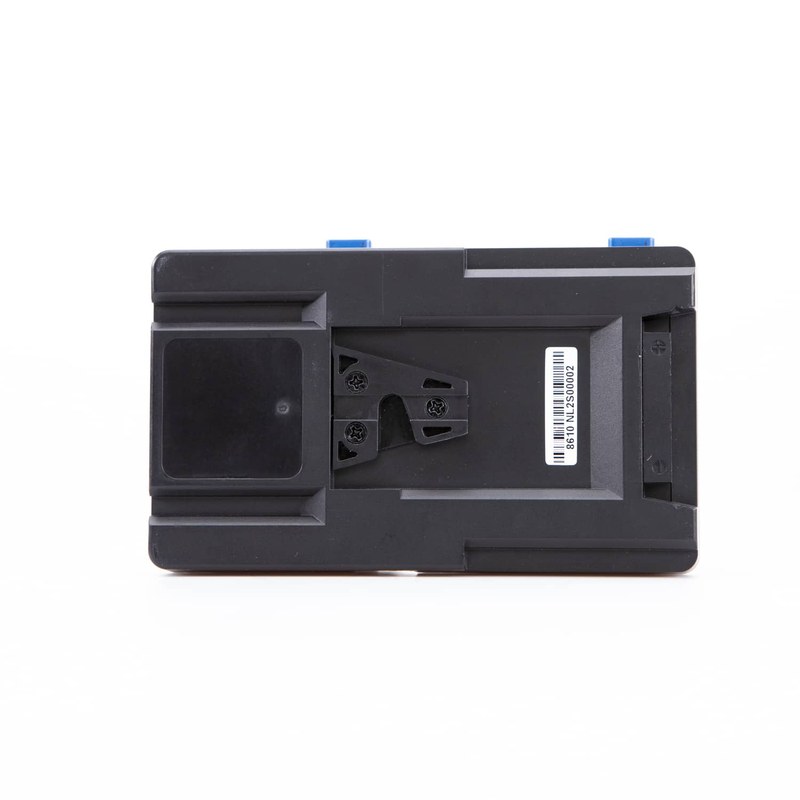

FXLION NANO Dual V-Mount Plate

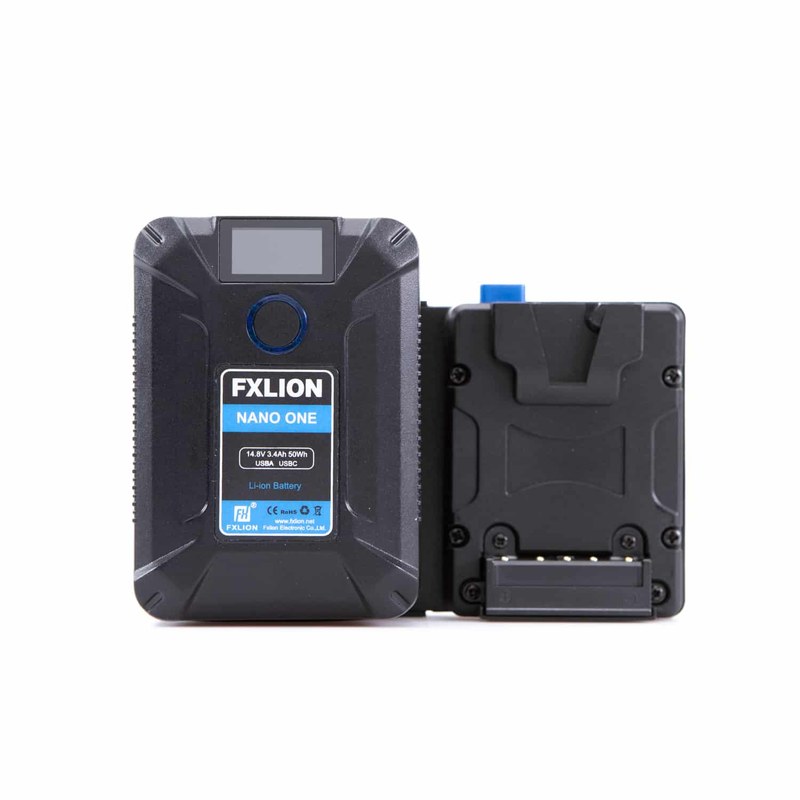

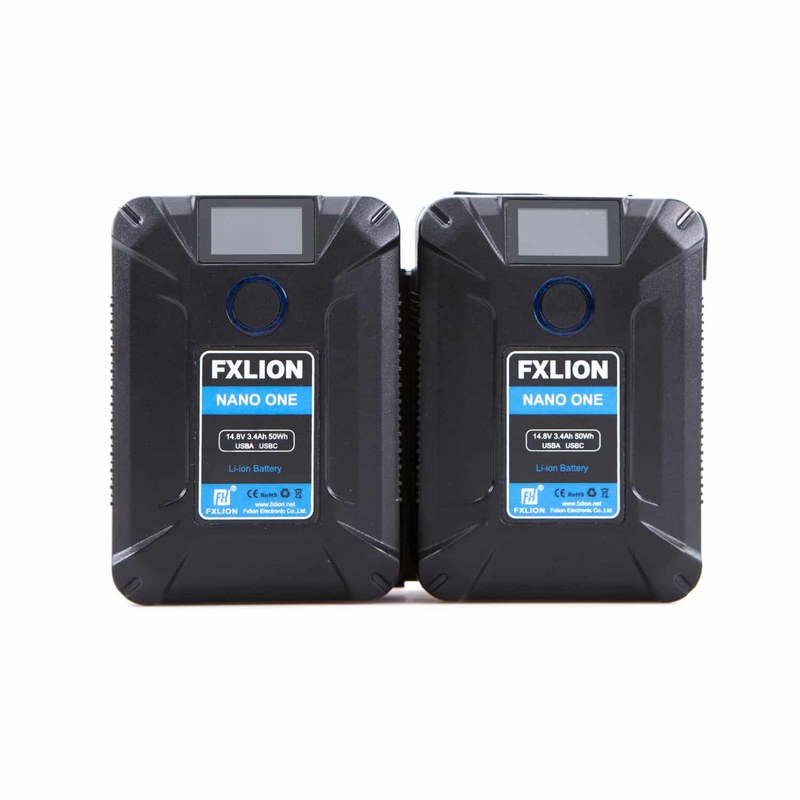

The NANOL2S NANO Dual V-Mount Plate holds two FXLION NANO ONE or NANO TWO batteries on a single V-Mount plate. The two packs discharge at the same time, doubling the runtime of a single small battery while keeping each pack light enough to fly, and the back of the plate fits any V-Mount compatible camera, monitor or light. FXLION recommends pairing two batteries of the same capacity, since they drain equally.
The plate takes 10-16.8V from the two NANO batteries and outputs 10-16.8V at up to 8A. Three D-Tap outputs on the plate feed accessories at 10-16.8V. It measures 141 x 89 x 42 mm and weighs 251 g. FXLION offers a hot-swap version for continuous power.
- Dimensions141(L)mm*89(W)mm*42(H)mm
- Input10-16.8V NANO V-Mount batteries (2x)
- Output10-16.8V
- D-Tap OutputsYes (3x) 10-16.8V
- Weight251g
| Input | 10-16.8V NANO V-Mount batteries (2x) |
|---|---|
| Output | 10-16.8V |
| Features | Double Capacity, simultaneous discharging |
| D-Tap Outputs | Yes (3x) 10-16.8V |
| Working current | 8A (max.) |
| Dimensions | 141(L)mm*89(W)mm*42(H)mm |
| Weight | 251g |
| Manufacturer Part Number | NANOL2S |
| Compatible Batteries | FXLION NANO ONE, NANO TWO |
