FXLION NANO PRO 98WH Battery

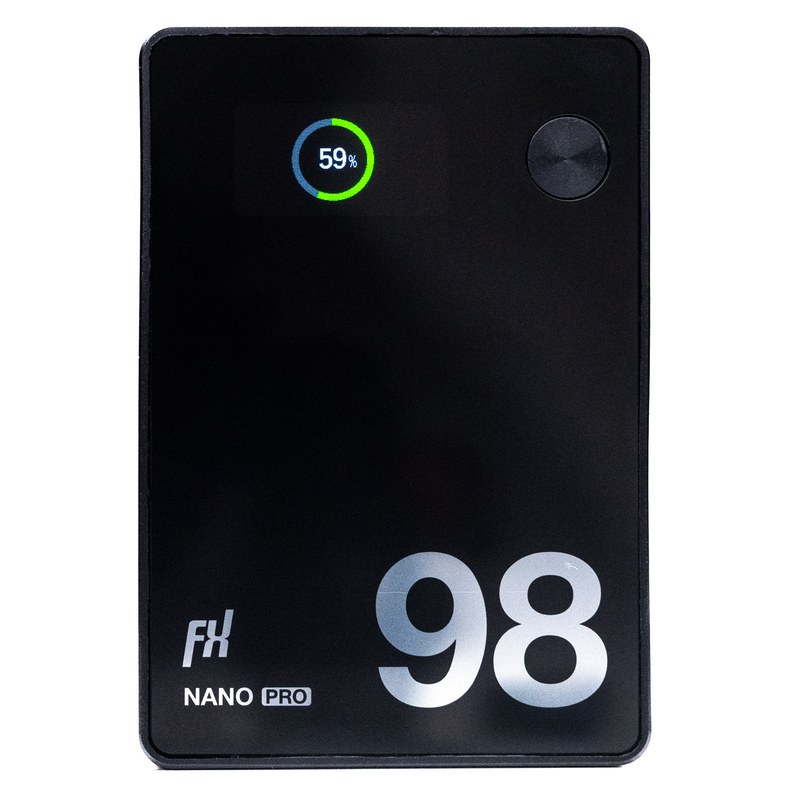

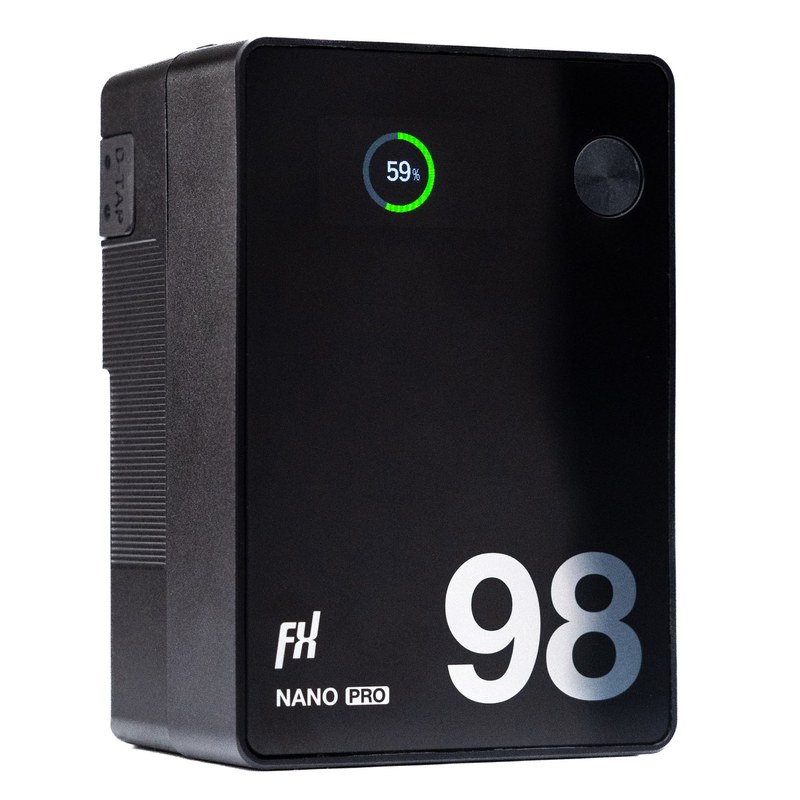

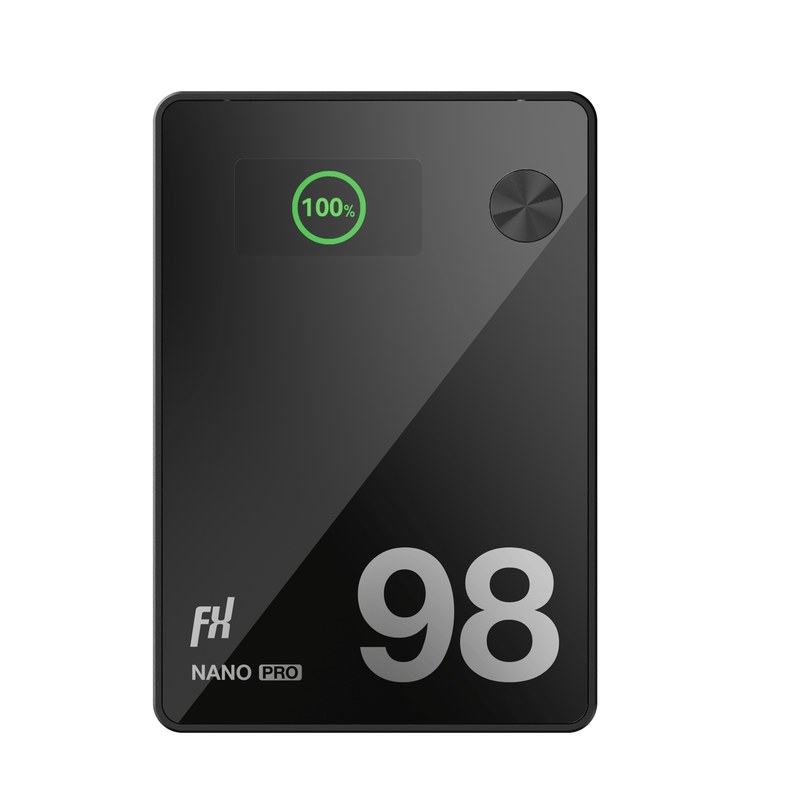

The NANO PRO 98WH is a V-Mount lithium battery of 6.8Ah / 98Wh, built for camera and lighting packages that draw hard and stay powered through a long shooting day. The fuel gauge sits on the pack, so a battery can be checked without mounting it on a camera first.

Nominal voltage is 14.4 V. Maximum draw is 13A / 156W (Max). D-Tap in and out is rated 2* 10-16.8V / 13A. USB output is 5V/3A 9V/3A 12V/3A 15V/3A 20V/5A 100W(Max). The pack measures 108.7(L)mmx74(W)mmx54.4(H)mm. Weight is 612g.

Mount Type	V-Mount
Voltage	14.4 V
Capacity	6.8Ah / 98Wh
Load	13A / 156W (Max)
D-Tap In- & Output	2* 10-16.8V / 13A
USB-A Output	5V/3A 9V/2A 12V/1.5A Supports fast charging protocols including QC2.0, QC3.0, FCP, and BC1.2.
USB-C1 Input/Output	5V/3A 9V/3A 12V/3A 15V/3A 20V/5A 100W(Max)
USB-C2&C3 Output	5V/3A 9V/2A 12V/1.5A 18W(Max)
Operating Temperature	-20 degC to +55 degC
Charging Temperature	0 degC to +40 degC
Storage Temperature	-20 degC to +45 degC
Dimensions	108.7(L)mmx74(W)mmx54.4(H)mm
Weight	612g
Manufacturer Part Number	NANO PRO
