Furman PL-PRO DMC 20A Power Conditioner with Digital Meter

The PL-PRO DMC runs the same 9-outlet, two-bank layout as the rest of Furman's Classic line but steps the breaker up to 20A with a high-inrush magnetic circuit breaker, sized for a rack full of amps or lighting dimmers that would trip a 15A unit. Extreme Voltage Shutdown, Series Multi-Stage Protection, and non-sacrificial surge suppression with zero ground contamination carry over unchanged, rated for 6,500 A of surge current at a 1-nanosecond response.

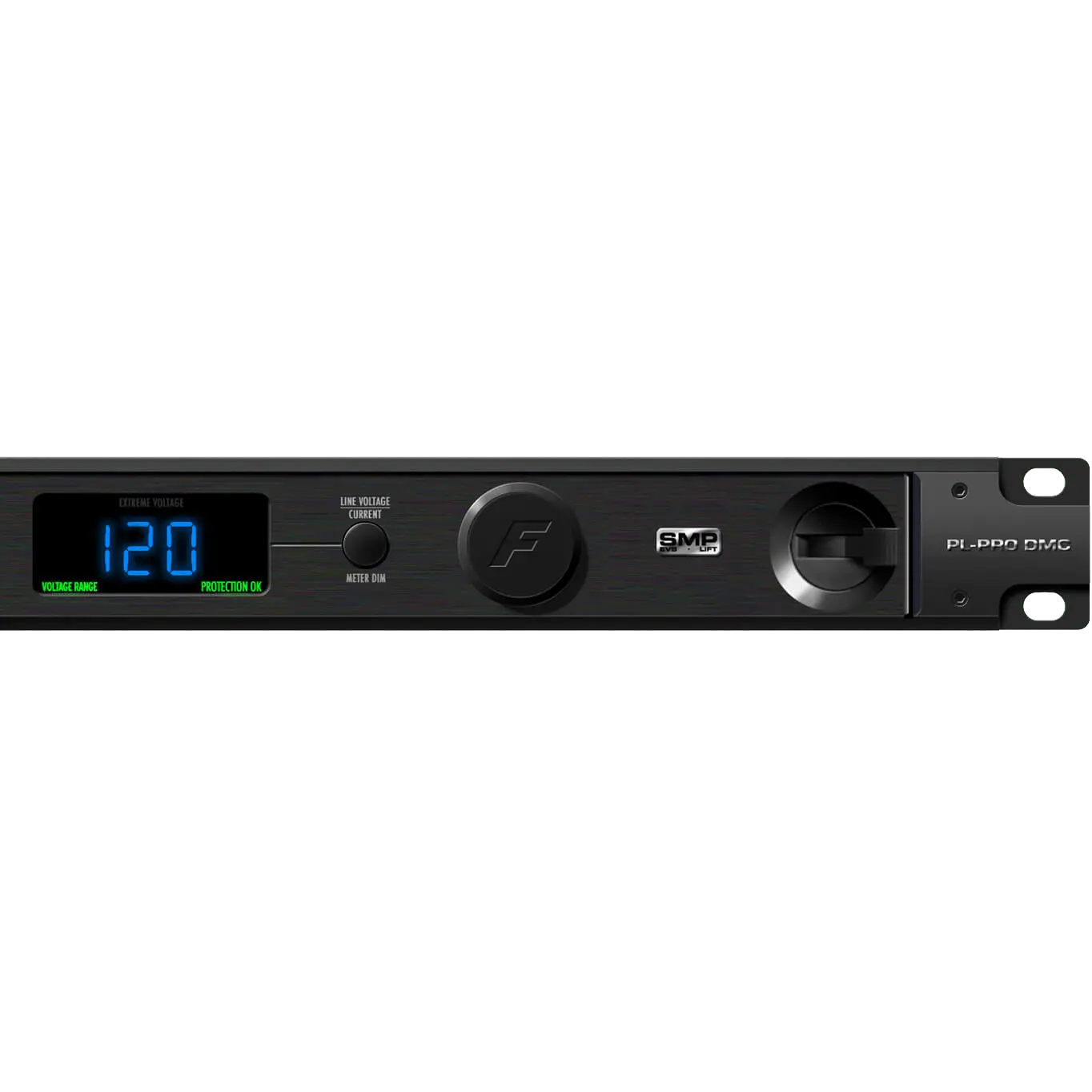

A front-panel LED display reads incoming voltage and true RMS current draw with a discrete dimmer control, so an overloaded circuit shows up on the meter before it trips. Dual retractable LED lights, a rear BNC connector for an external lamp, and a front-panel USB charging port round out the same convenience features as the 15A PL-PLUS DMC, in the higher-current chassis a bigger rig needs.

Amperage20A
Outlets9 total: 8 rear + 1 front convenience
ProtectionSMP surge suppression, EVS shutdown, non-sacrificial, zero ground contamination
MeteringFront-panel LED voltage and true RMS current display
Voltage Shutoff90V / 140 VAC under/over-voltage
USB ChargingFront-panel USB port
Lighting2x dimmable retractable LED lights, rear BNC lamp output
Dimensions19 in W x 10.5 in D x 1.75 in H
Weight12 lb
