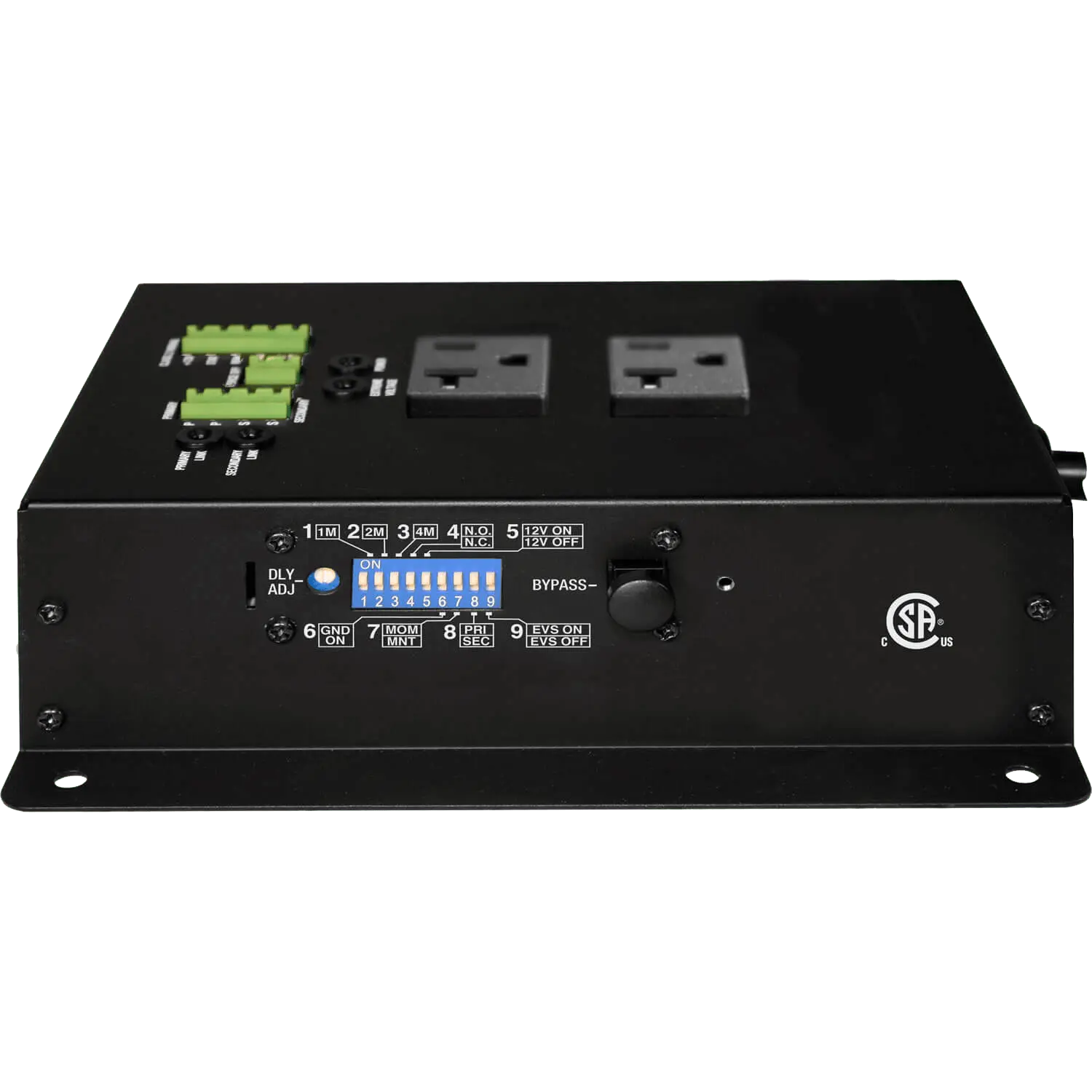

Furman CN-20MP Contractor Series MiniPort Relay

The Furman CN-20MP is a relay for 120 Volts supplies. Outlets: 2 NEMA 5-20R's (1 duplex).

Front panel metering: Available with SmartSequencing, +/-2VAC accuracy. Cord length is 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug. Power consumption is 10 Watts. Compliance: CSA, RoHS Compliant.

FamilyContractor Series
Line Voltage120 Volts
Number of Outlets2 NEMA 5-20R's (1 duplex)
Over-Voltage ShutoffEVS, 140VAC+/-5VAC
Undervoltage ShutoffEVS, 77VAC+/-3VAC
Front Panel Meter(s)Available with SmartSequencing, +/-2VAC accuracy
Power Consumption10 Watts
Cord Length3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug
InfoComm 2012: Furman Sound on its MiniPorts
