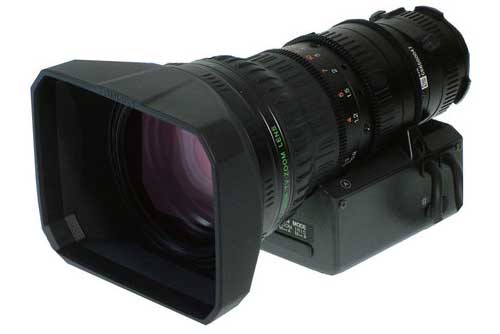

Fujinon XT17Sx4.5BMD
1/3" HDTV eXceed SERIES Zoom Lens

The Fujinon XT17Sx4.5BMD 4.5-77mm f/1 .6 Exceed Series HDTV Videoconferencing Lens is an HD remote control lens. It is suitable for videoconferencing, tower cam, and other applications requiring remote control of zoom, focus, and iris functions. It can be remote controlled via Fujinon controllers, pan/tilt units or third party controllers.

• Zoom Ratio / Format: 17X / 1/3”
• Focal Length: 4.5 to 77 mm
• Maximum Relative Aperture: 1:1.6 (4.5 ~ 77 mm)
• M.O.D. from the Front of Lens: 0.95 m
• Angular Field of View (Hor.x Ver. in °):
  • 4.5 mm 60° 19’ x 36° 11’
  • 77 mm 3° 53’ x 2° 11’
• 16:9 Aspect Ratio: 77 mm 3° 53’ x 2° 11’
• M.O.D. from Image Plane: 1.16 m
• Filter size: 82mm P=0.75
• Inner focus: Yes
• Macro: Yes
• Size (Dia x Length w/o Hood): 85 × 175.6 mm / 3.35 x 6.91 in
• Weight: 1.38 kg / 3.04 lbs
