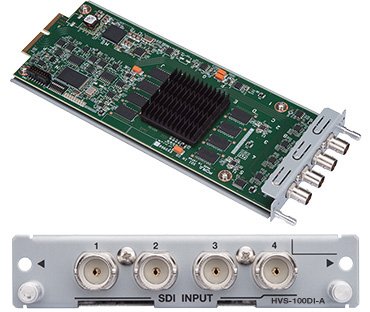

FOR.A HVS-100DI-A 4-Channel SDI Input Card

The HVS-100DI-A is an SDI input card that expands the HVS-100 beyond its eight standard inputs. A single card adds four HD/SD-SDI channels on 75-ohm BNC connectors, each running HD-SDI at 1.5 Gbps or SD-SDI at 270 Mbps. A frame synchronizer sits on all four inputs and a re-sizing engine on two of them, and SD sources are processed internally as HD so they mix seamlessly with the rest of the switcher's inputs.

The card can be installed in slot A or slot B of the HVS-100 main unit; used in slot B it expands two of its four channels. Two of these cards take the switcher to its 14-input maximum. It is compatible with both the HVS-100 and the HVS-100 Express.
