FieldCast Panel One

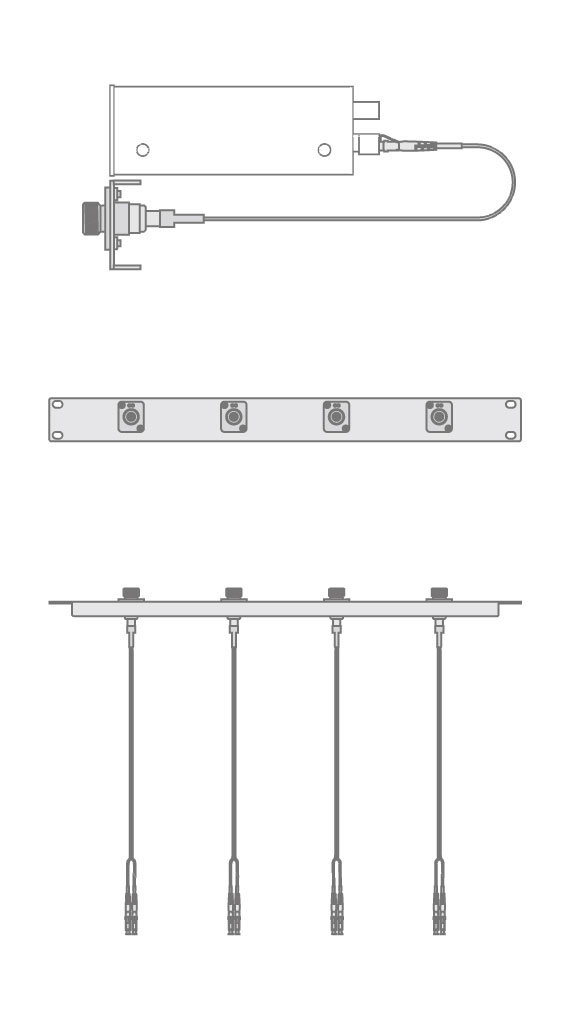

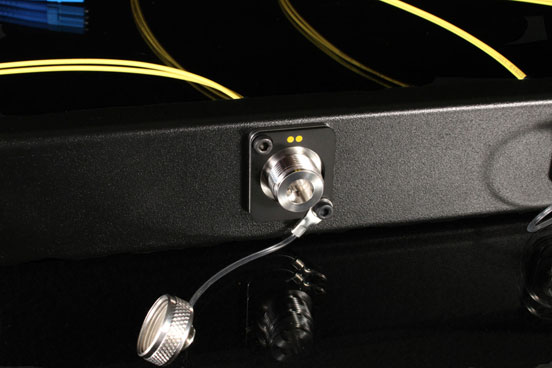

Panel One is a standard 1RU rack panel built for patching multi-channel converter devices, most commonly a Blackmagic Design ATEM Studio Converter, into FieldCast fiber. Four color-coded FieldCast 2Core SM chassis connectors on the front, each with a D-size flange, face four LC Duplex connectors with internal dust caps on the back, so the whole rack of converters patches through one panel.

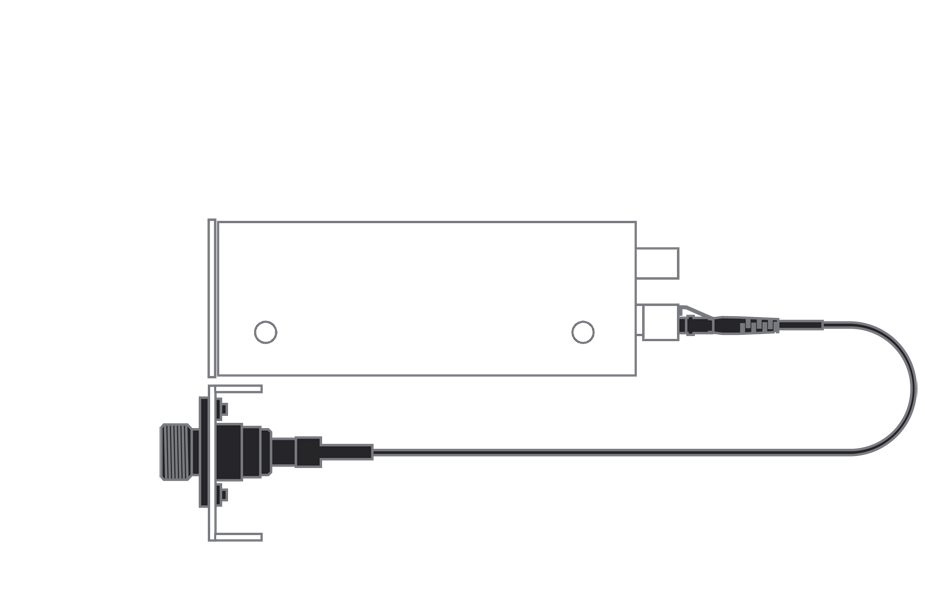

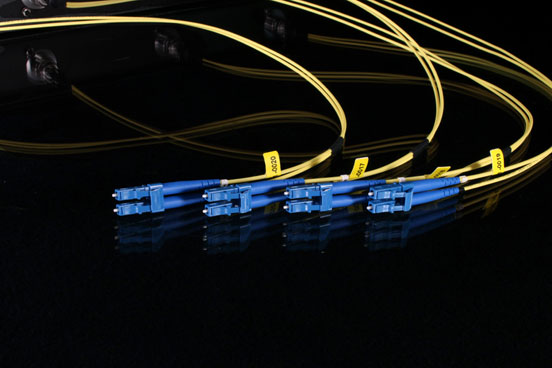

Fifty-centimeter, bend-insensitive patch cable outlets on the rear give enough slack to route to nearby converters without strain, and the four D-size cutouts sit on a 105mm horizontal punch spacing that matches standard rack layouts. Built from 1.8mm steel with rounded edges and a black paint finish, it ships with an online manual for rack installation.
