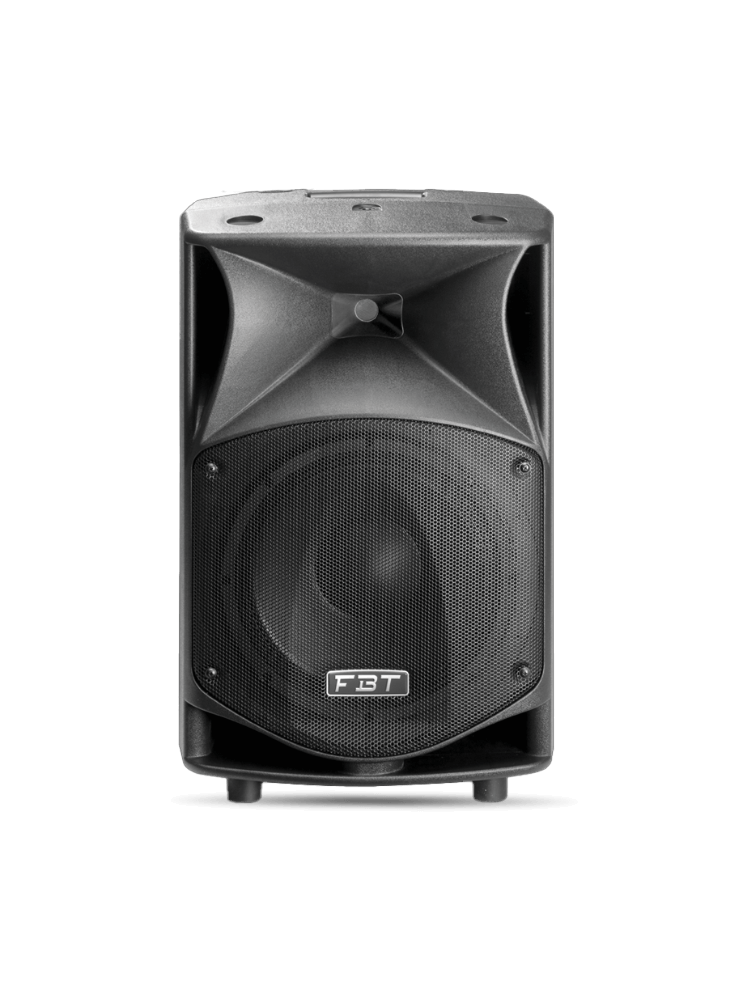

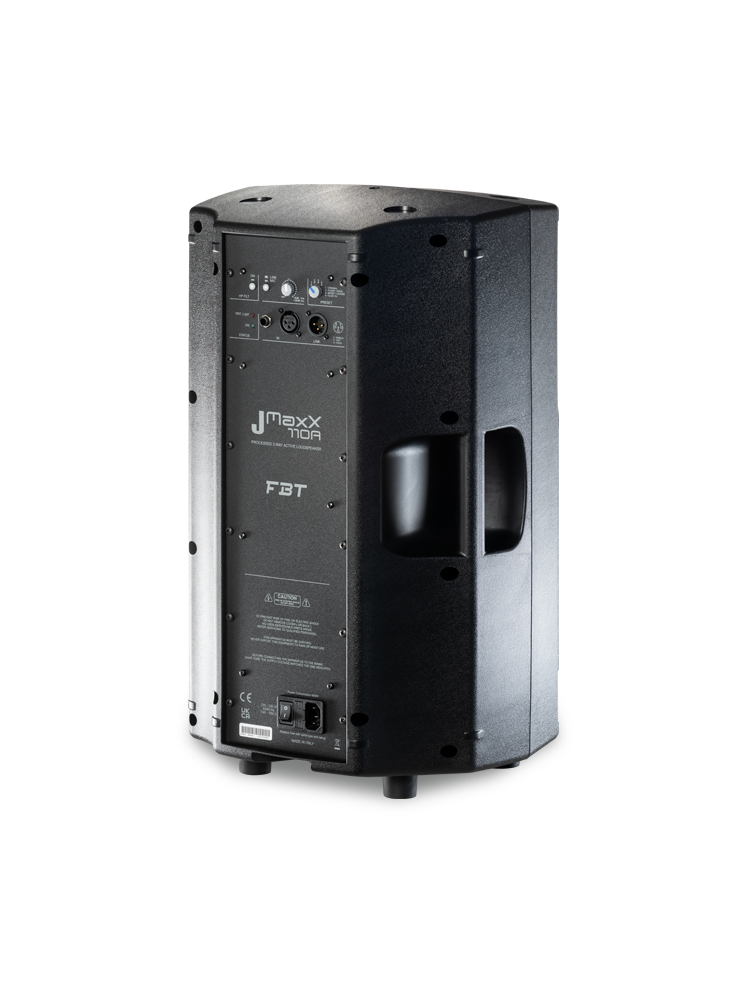

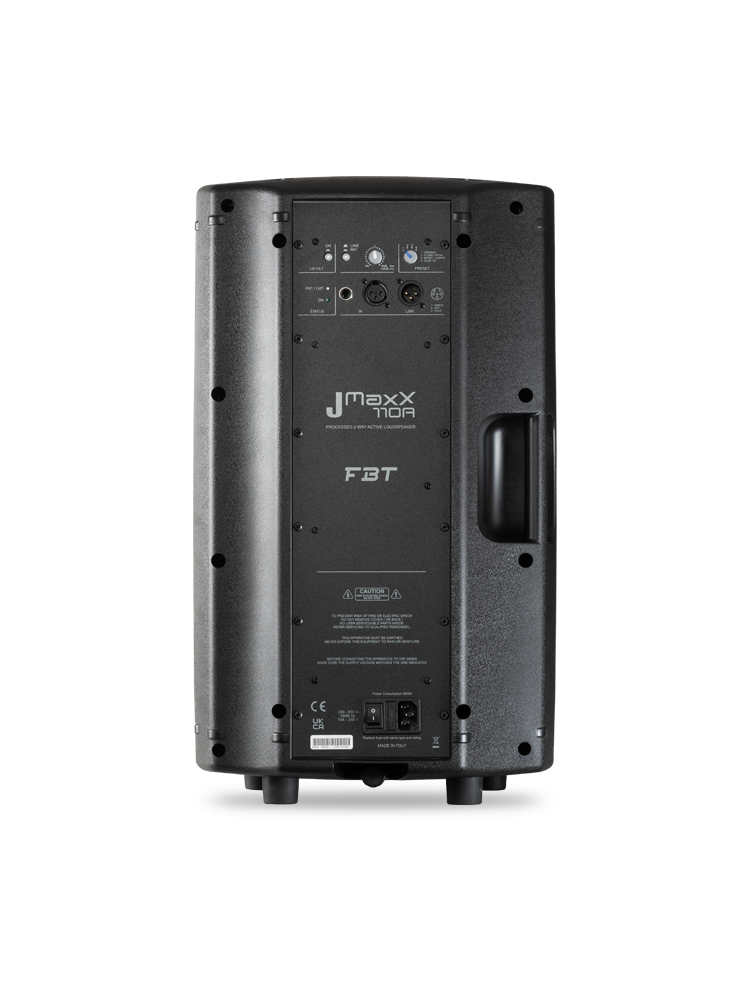

FBT JMAXX 110A Active Point Source 10 Inch
The JMAXX 110A is FBT's powered 10-inch two-way speaker for bands, DJs, presenters and small installs that need one box to work on a pole, on the floor or on a wall. A custom 10-inch woofer with a 2-inch voice coil and a 1-inch compression driver on a 90 x 60 degree constant-directivity horn give clear mids and controlled bass from 58 Hz to 20 kHz, and the built-in Class D amplifier puts 700 W RMS on the low end and 200 W RMS on the highs, for up to 129.5 dB peak.
Four EQ presets set it up for the job at hand. The polypropylene cabinet keeps it to 11.5 kg (25.3 lb), with integrated handles, M10 rigging points and a 35 mm pole socket, and a combo XLR/jack input takes a mic or line feed. A 5 m power cord comes with it.
- Net dimensions (W x H x D)320 x 550 x 275 mm / 12.6 x 21.6 x 10.8 in
- Input connectorXLR - Jack
- Input impedance22 kOhm
- Frequency response58Hz - 20kHz -6dB
- Low frequency woofer10 in - 2 in coil
| Code | 42604 |
|---|---|
| Configuration | 2-way active bass reflex |
| Built-in amplifier LF/HF | 700 / 200W RMS, Class D |
| Frequency response | 58Hz - 20kHz -6dB |
| Low frequency woofer | 10 in - 2 in coil |
| High Frequency driver | 1 in compression driver |
| Maximum SPL cont/peak | 123.5 / 129.5dB |
| Dispersion | 90 deg x 60 deg H x V |
| EQ Presets | 4 |
| Input connector | - Jack |
| Input impedance | 22 kOhm |
| Cabinet | Polypropylene with integrated handles, M10 rigging points and 35 mm pole mount |
| Power cord | 5 m / 16.4 ft |
| Net dimensions (W x H x D) | 320 x 550 x 275 mm / 12.6 x 21.6 x 10.8 in |
| Net weight | 11.5 kg / 25.3 lb |

- JMAXX 110A speaker
- 5 m power cord
