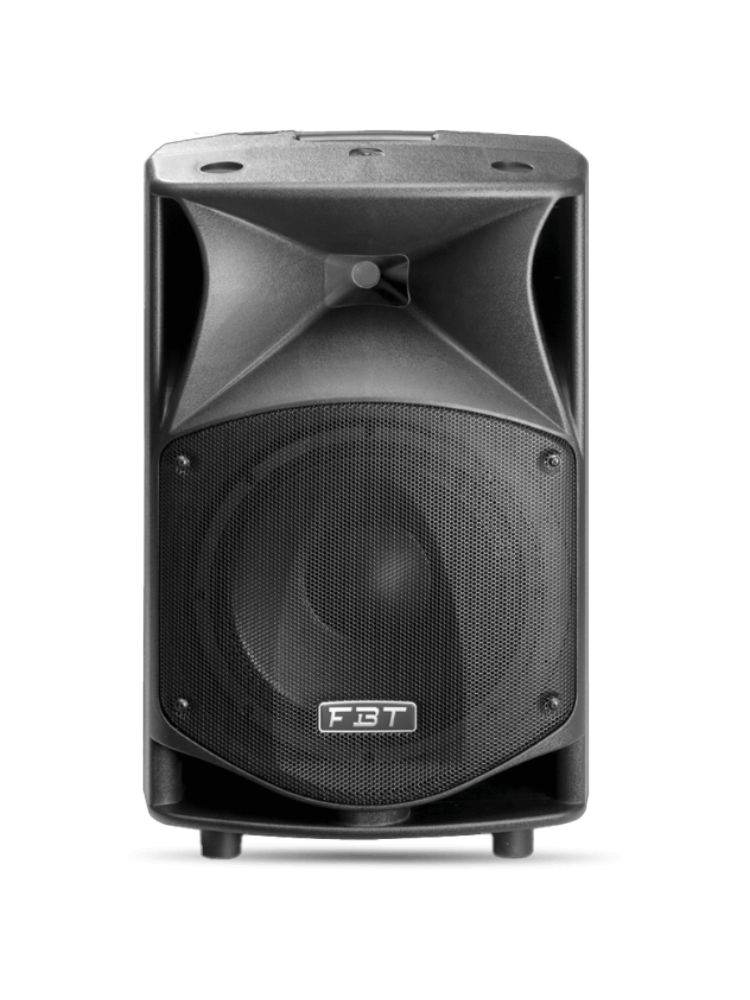

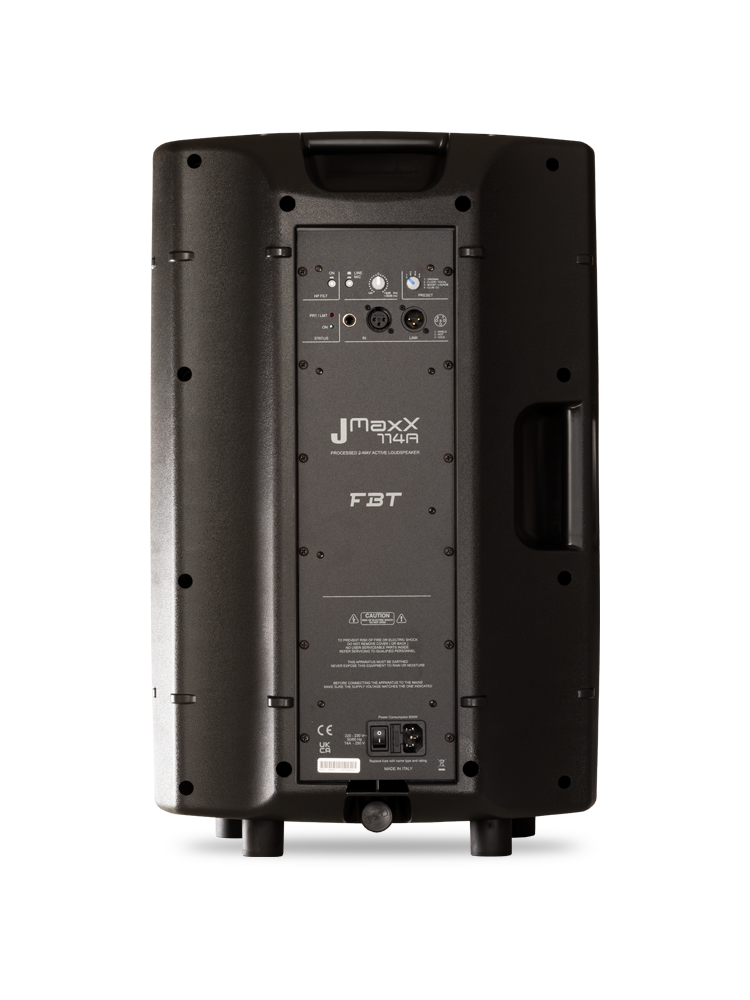

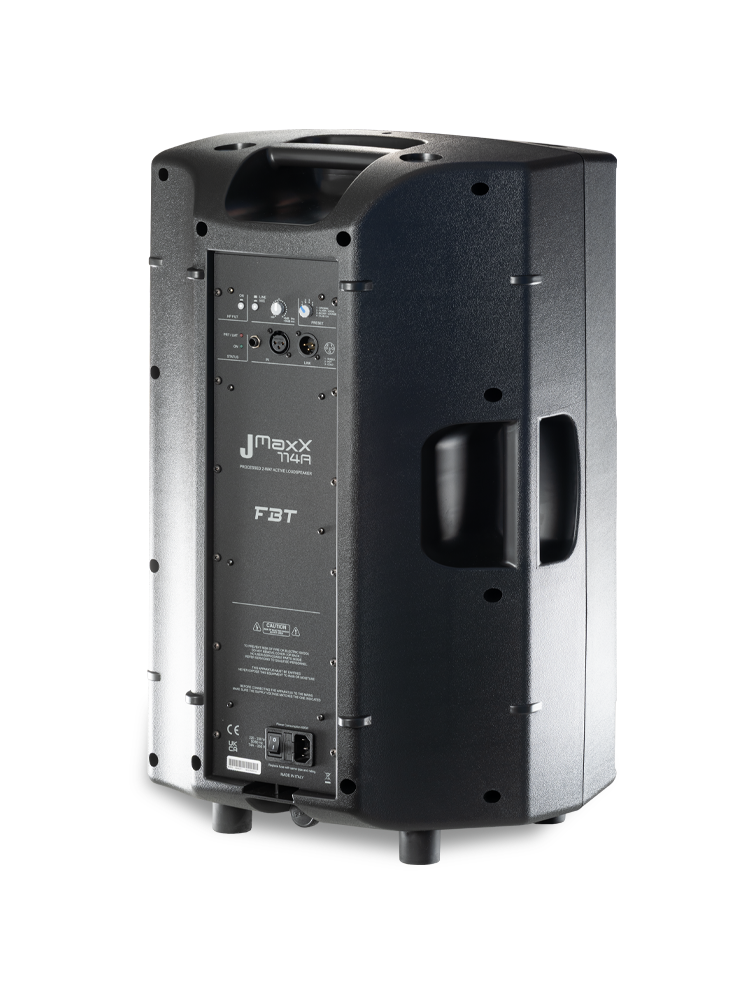

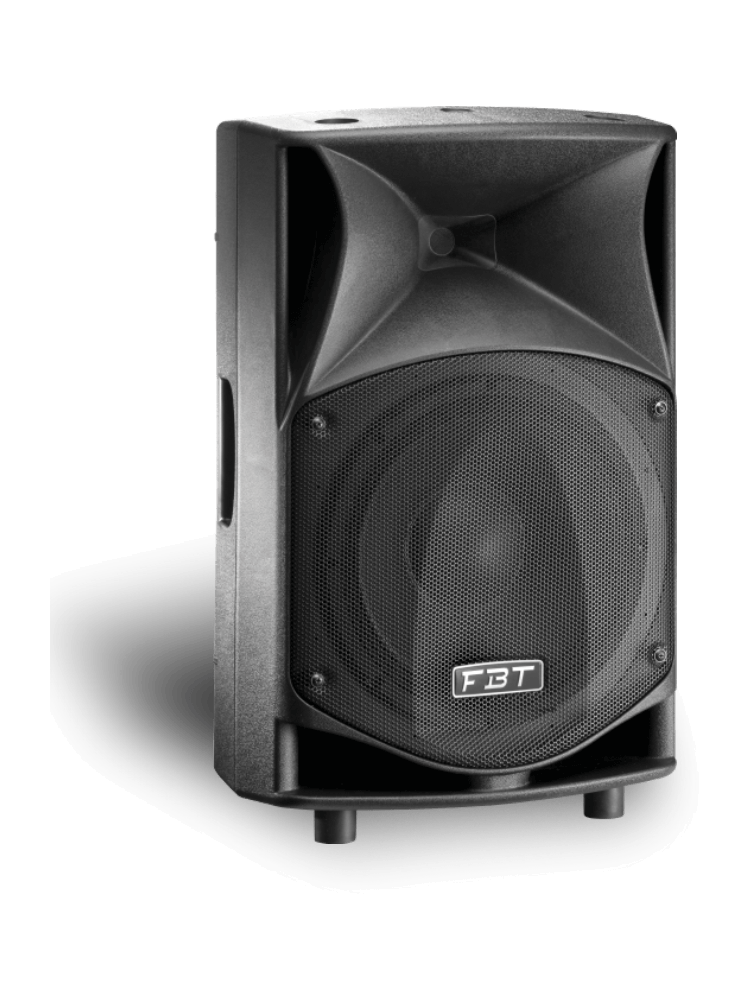

FBT JMAXX 114A Active Point Source 14 Inch

FBT builds the JMAXX 114A as active point source 14 inch. It is a 2 way design with a 700 / 200W RMS built-in amplifier. Frequency response is 45Hz - 20KHz -6dB with a maximum SPL of 126 / 132dB and 90 deg x 60 deg H x V dispersion. The low frequency driver is a 14 in - 2.5 in coil and the high frequency driver a 1 in - 1.4 in coil.

Inputs are on XLR - Jack with a 22 kOhm input impedance. The supplied power cord is 5 m / 16.4 ft. It measures 402 x 644 x 345 mm / 15.8 x 25.4 x 13.6 inch and weighs 16.6 Kg / 36.5 lLb.
