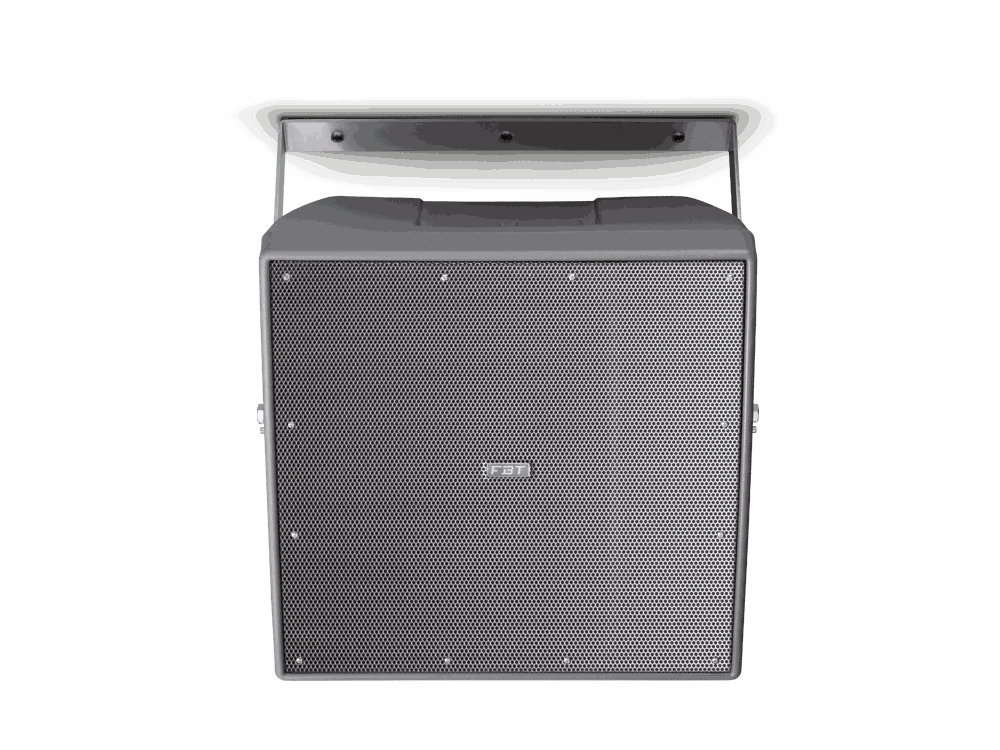

FBT SHADOW 112CT Passive Point Source 12 Inch
FBT builds the SHADOW 112CT as passive point source 12 inch. It is a 2 way design. Frequency response is 70Hz - 20Khz -6dB with a maximum SPL of 124/128 dB and 90 deg conical HxV dispersion. The low frequency driver is a 12 - 2.5 coil inch and the high frequency driver a 1 - 1.7 coil inch crossing over at 1.6 KHz.
Inputs are on 4 wire cable. It measures 464 x 430 x 479 mm -/ 18.2 x 16.9 x 18.8 inch and weighs 18.2 Kg / 40.1 lb.
- Frequency response70Hz - 20Khz -6dB
- Low Frequency woofer12 - 2.5 coil inch
- High frequency driver1 - 1.7 coil inch
- Sensitivity98 dB
- Long Term power300 W
| Configuration | 2 way |
|---|---|
| Recommended Amplifier | 600 W RMS |
| Long Term Power | 300 W |
| Short Term Power | 1200 W |
| Nominal Impedance | 8 ohm |
| Frequency Response | 70Hz - 20Khz -6dB |
| Low Frequency Woofer | 12 - 2.5 coil inch |
| High Frequency Driver | 1 - 1.7 coil inch |
| Max SPL | : 128 dB |
| Sensitivity | 98 dB |
| Dispersion | 90° conical HxV |
| Weight | 18.2 Kg / 40.1 lb |
