Electro-Voice R300-HD Wireless System

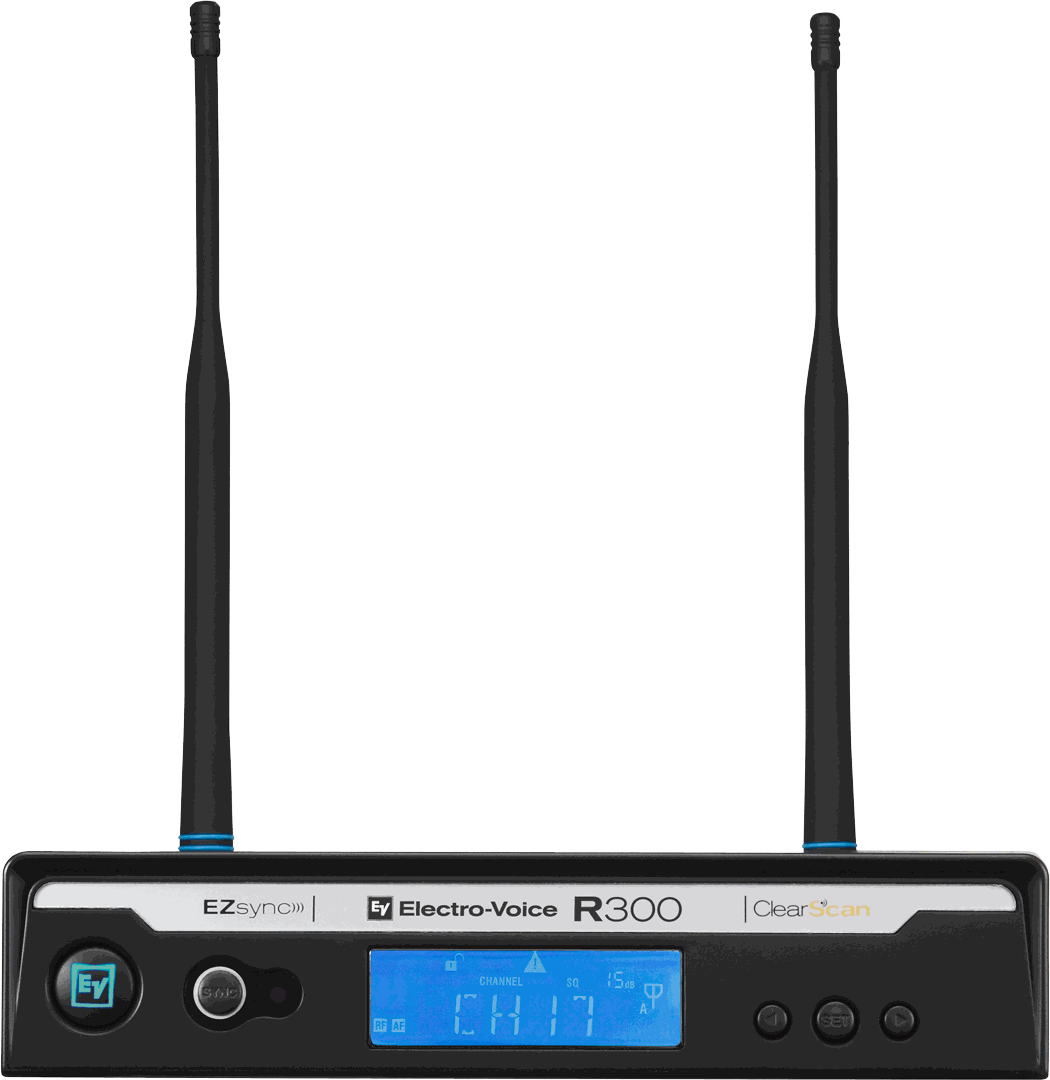

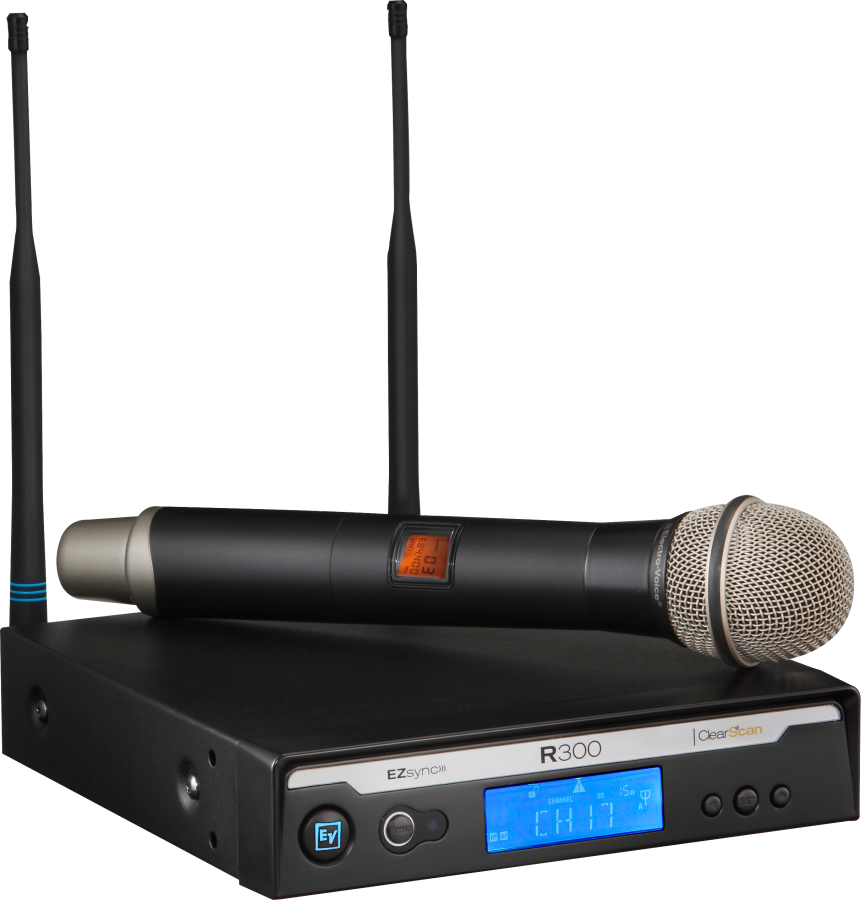

The R300-HD is the handheld configuration of the R300 UHF wireless family: a metal receiver chassis and the HT-300 metal handheld transmitter, supplied with the PL22 cardioid dynamic handheld. It is the set for rooms that need one reliable channel rather than a managed multi-channel rack.
ClearScan finds the clearest channel in the band by itself and EZsync copies it to the transmitter in one step, which keeps setup out of the hands of whoever happens to be running the room that night. True antenna diversity and tone-code squelch keep the link quiet. Two AA alkaline cells run the transmitter for about 14 hours. The receiver takes an optional rack mount. This listing is band C.
| Microphone supplied | PL22 cardioid dynamic handheld |
|---|---|

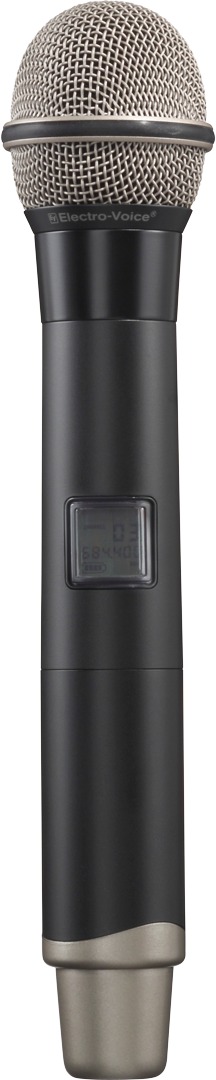

| Transmitter | HT-300 metal handheld transmitter |
| Receiver type | Synthesized PLL |
| Diversity | True Antenna |
| Number of channels | 32 |
| Dynamic range | > 95 dB |
| Squelch | Tone Code plus Amplitude |
