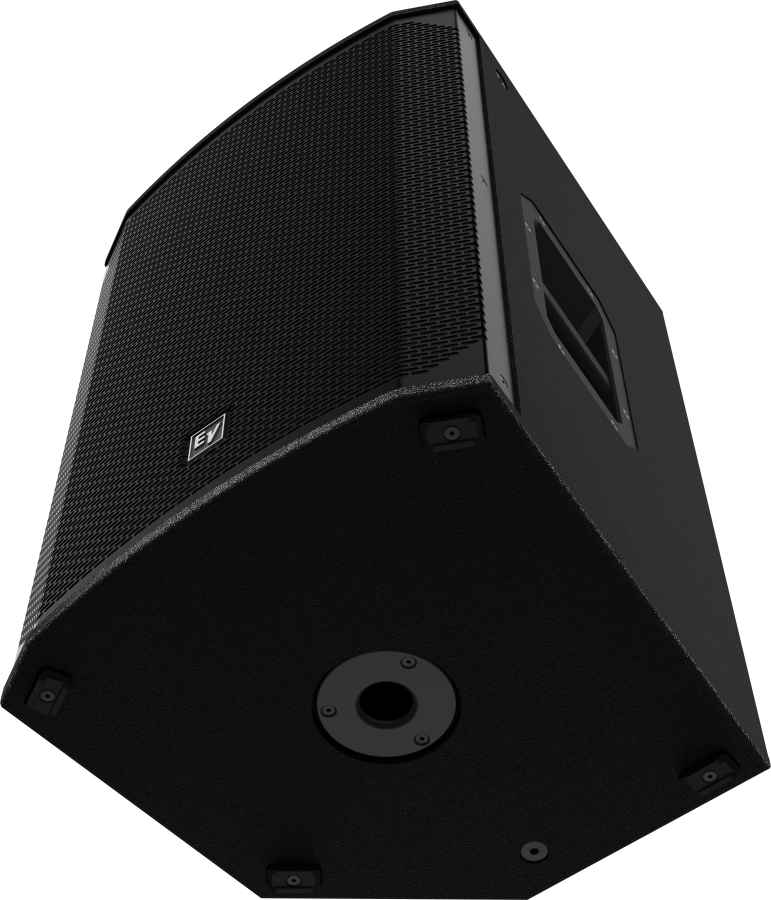

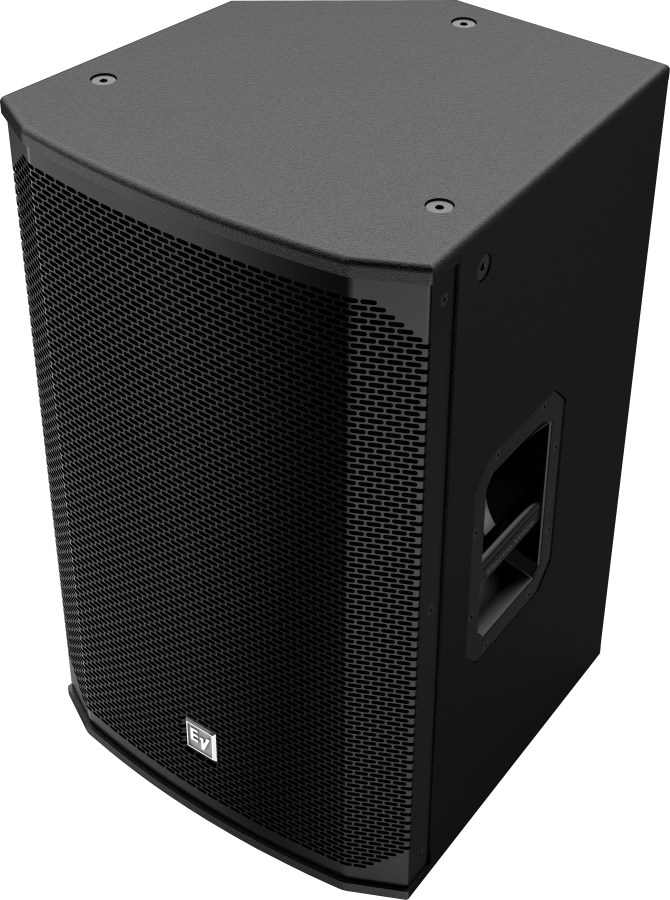

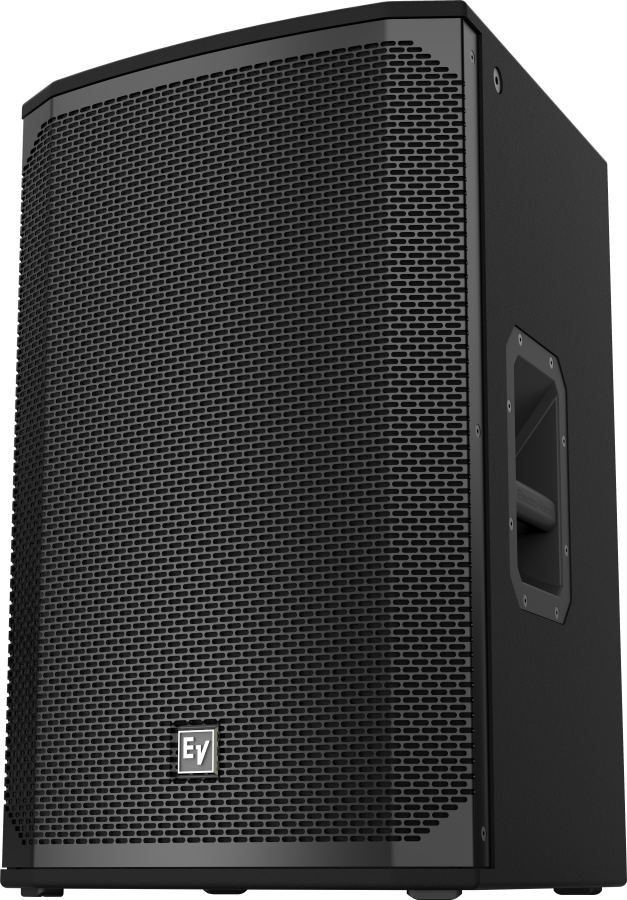

Electro-Voice EKX-15 15-Inch Two-Way Passive Loudspeaker

The EKX-15 trades the 12-inch woofer for an EVS-15M and picks up about 7 Hz of low end and 1 dB of sensitivity in the process. Coverage stays at 90 by 60 degrees and the DH-1M titanium compression driver is unchanged, so a 12 and a 15 voice the same way across a room - handy when you mix cabinet sizes on one system.

Power handling is 400 W continuous into 8 ohms. The cabinet is 15 mm plywood with an EVCoat finish, a steel grille, an aluminium pole socket and eight M10 threaded points for flying or bracket mounting. Dual NL4 connectors handle daisy-chaining.

Type	15-inch two-way passive loudspeaker
Frequency response (-3 dB)	75 Hz - 18 kHz
Coverage (H x V)	90 x 60 degrees
Maximum SPL	132 dB peak
Power handling	400 W continuous / 1600 W peak
Nominal impedance	8 ohms
Axial sensitivity	96 dB SPL, 1 W at 1 m
Transducers	EVS-15M 381 mm (15 in) woofer; DH-1M 1-inch titanium compression driver
Crossover frequency	1.6 kHz
Connectors	Dual NL4
Dimensions (H x W x D)	685 x 432 x 429 mm
Net weight	23.2 kg
Rigging	(8) M10 threaded mounting points; aluminium pole mount
