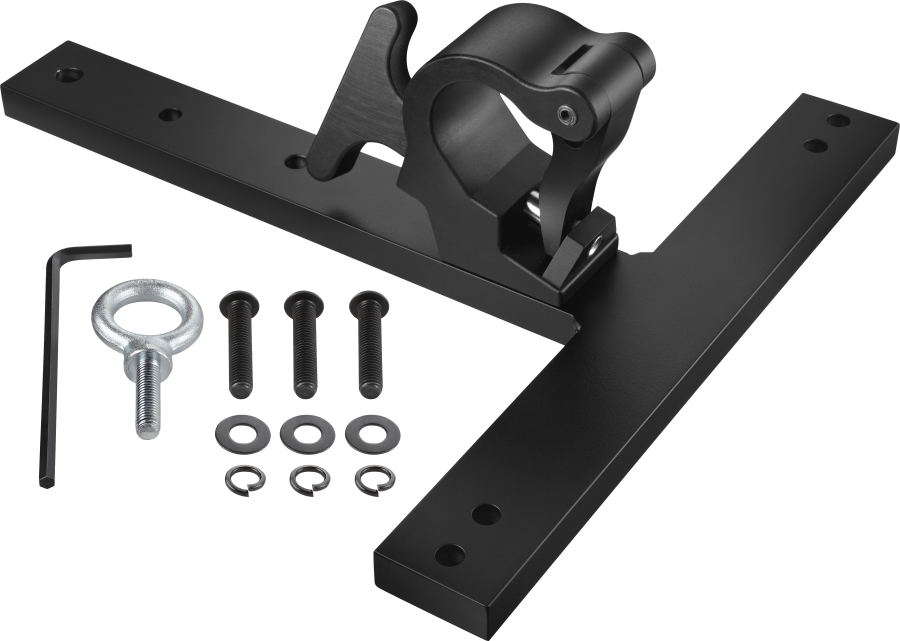

Electro-Voice EKX-TCA Truss Adapter
The EKX-TCA is the truss adapter for the EKX range. It takes an EKX-12 or EKX-15 onto a truss in either the front or the rear orientation, so the cabinet can be aimed from wherever the truss actually is rather than where you would have liked it.
It is a rigging component, so treat it as one: the cabinet's suspension points and the venue's load calculation both still apply. At 2.8 kg it adds little to the flown weight.
| Fits | EKX-12 and EKX-15 loudspeakers, front or rear orientation |
|---|---|
| Type | Truss adapter |
| Shipping dimensions (H x W x D) | 419 mm x 419 mm x 114 mm |
| Net weight | 2.8 kg (6.17 lb) |
| Shipping weight | 3.4 kg (7.5 lb) |
