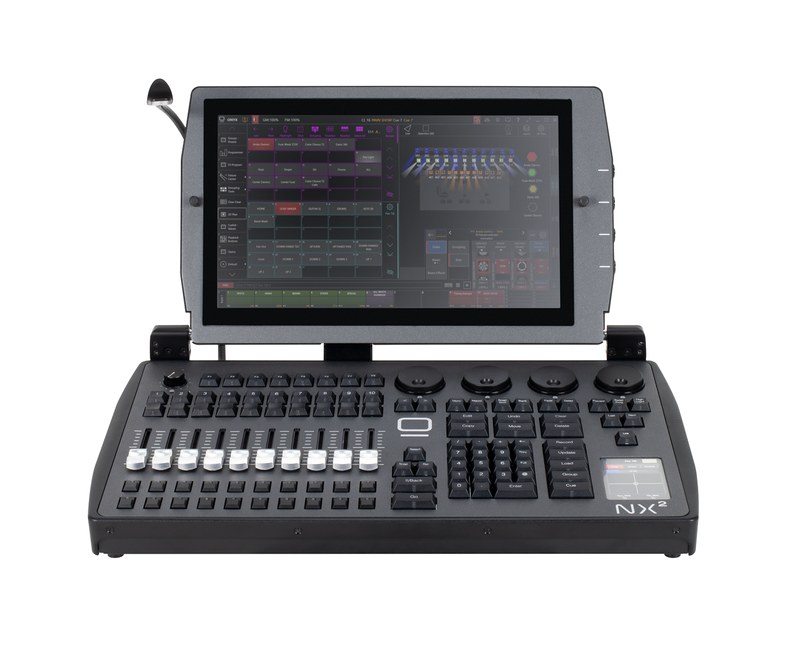

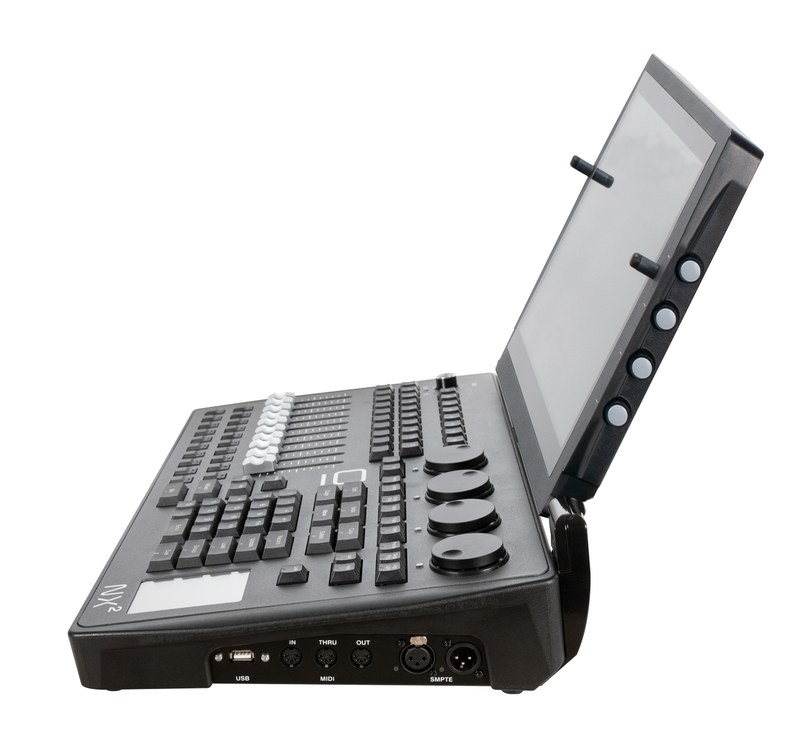

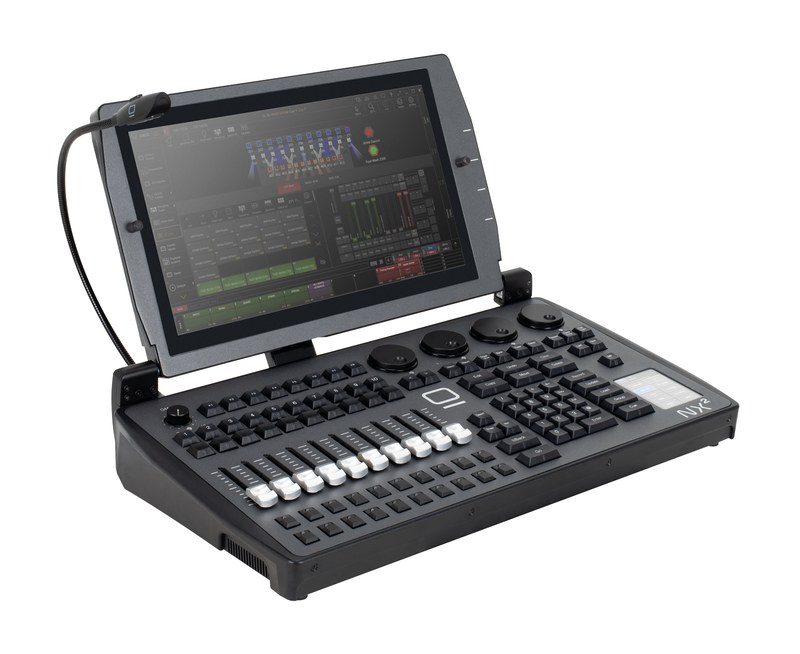

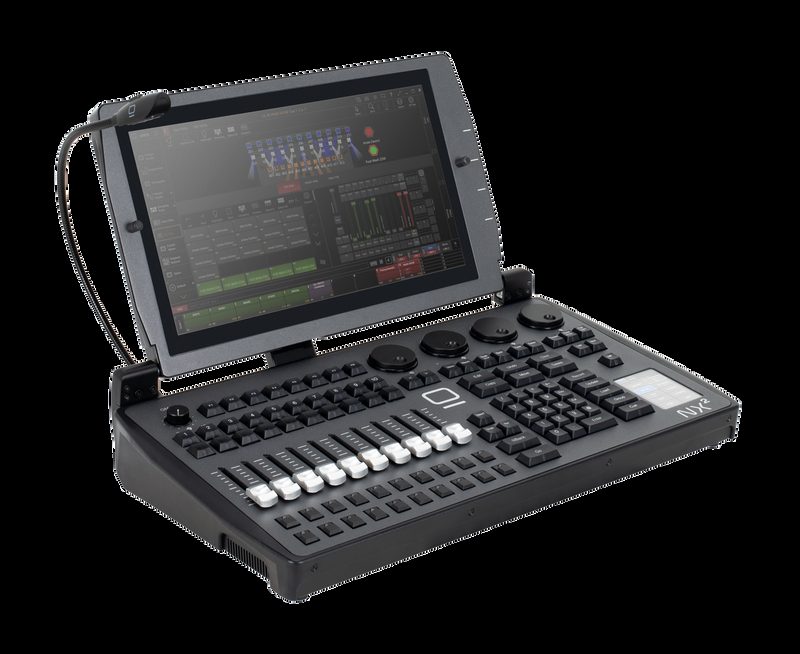

Elation NX2 Lighting Control Surface,

The Elation NX2 is a lighting control surface from Elation. Elation lists the desk lamp as XLR 12V.

External display covers 2x DisplayPort, up to 4K. Ordering code NX2.

16 Gb Ddr4 RamIntegrated graphics processor, Windows 10 IoT Embedded Operating System, OS installation by USB 3.0 storage device, Supports Windows USB touchscreens, Connections, 4x DMX / RDM Universe I...
External Display2x DisplayPort, up to 4K
Network2x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
Storage and Peripherals4x USB 3.0, 1x USB 2.0
Audio Out, Mic In2x 3.5 mm jack
MIDI In / Out / Thru5-pin DIN, supporting MIDI Show Control, MIDI Notes and MIDI Timecode
SMPTE Timecode In/Out3-pin XLR
Desk LampXLR 12V
