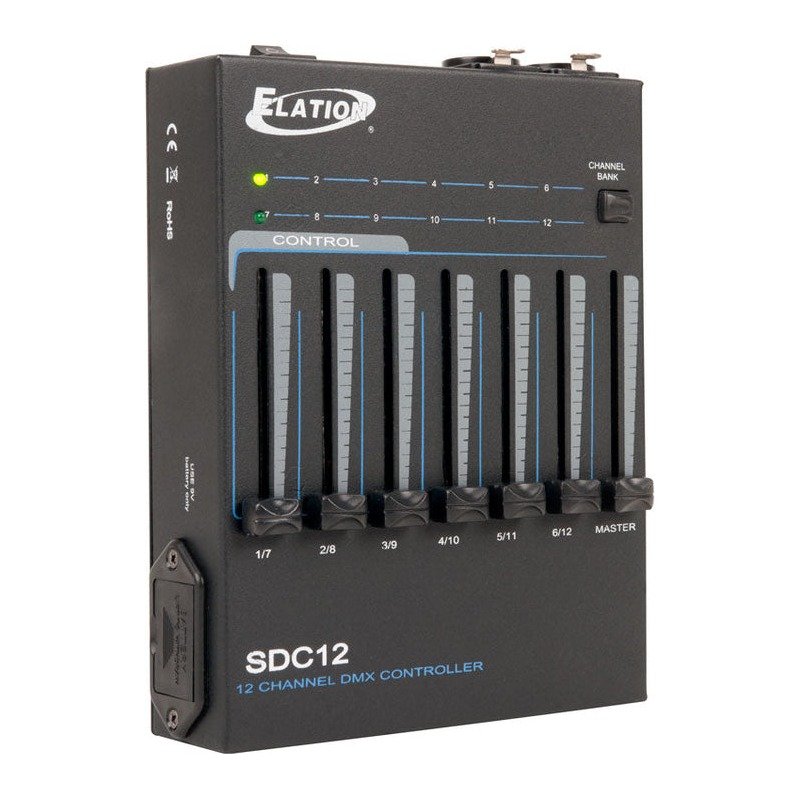

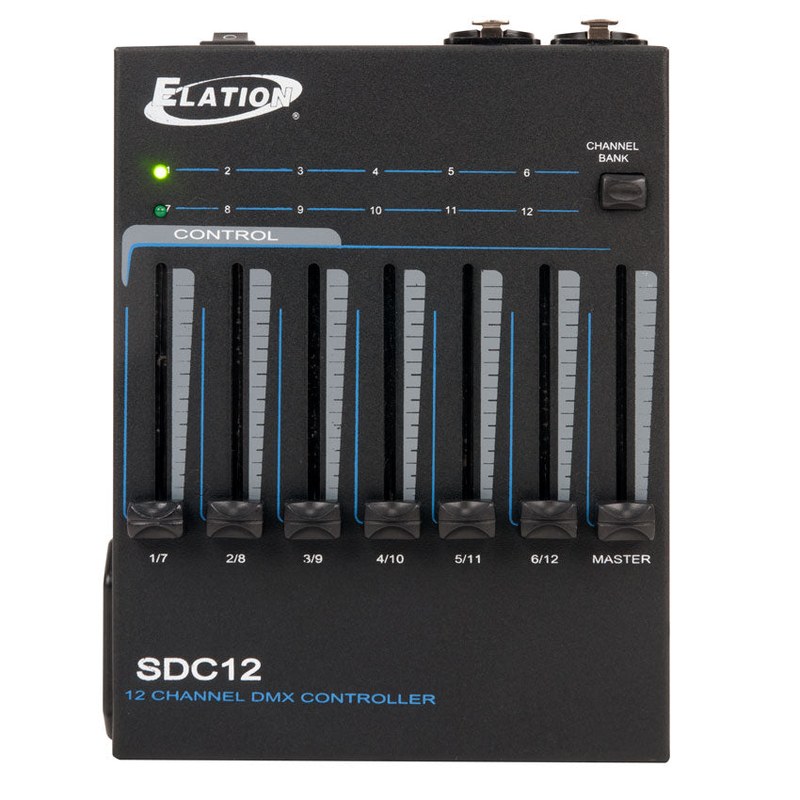

Elation SDC12 Lighting Control Surface,

The Elation SDC12 is a lighting control surface from Elation. Rated features: 12 DMX Channels Faders, Master Dimmer Fader, Portable Handheld Or Wall Mountable, Operates via 12VDC Power Supply (Included) Or. Rated width: 5.9" (149mm).

Control / connections covers DIP Switches To Set Starting DMX Channel, 3pin 5pin DMX Outputs, On/Off Switch, LED Channel Bank Indicator, DC 12V Power Supply Input. Electrical is quoted at DC 12V 500mA min OR 9V Battery (Not Included). Listed length: 7.5" (191mm). Ordering code SDC12.

Features	12 DMX Channels Faders, Master Dimmer Fader, Portable Handheld Or Wall Mountable, Operates via 12VDC Power Supply (Included) Or, 9VDC Battery (Not Included)

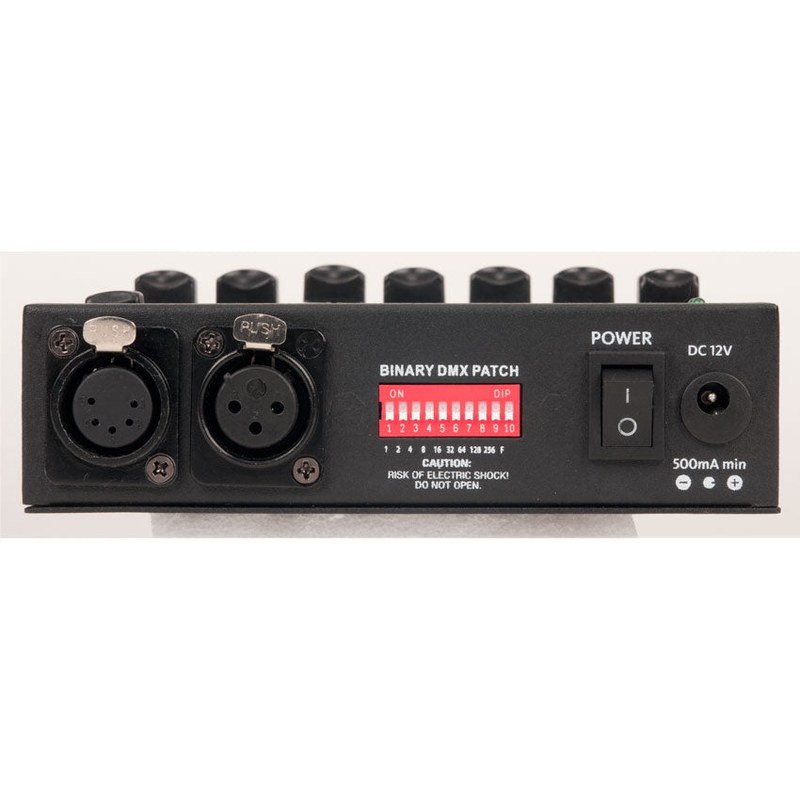

Control / Connections	DIP Switches To Set Starting DMX Channel, 3pin 5pin DMX Outputs, On/Off Switch, LED Channel Bank Indicator, DC 12V Power Supply Input
Length	7.5" (191mm)
Width	5.9" (149mm)
Height	1.6" (41mm)
Weight	2.0 lbs. (0.9kg)
Electrical	DC 12V 500mA min OR 9V Battery (Not Included)
Approvals / Ratings	CE Approved, RoHs Compliant
