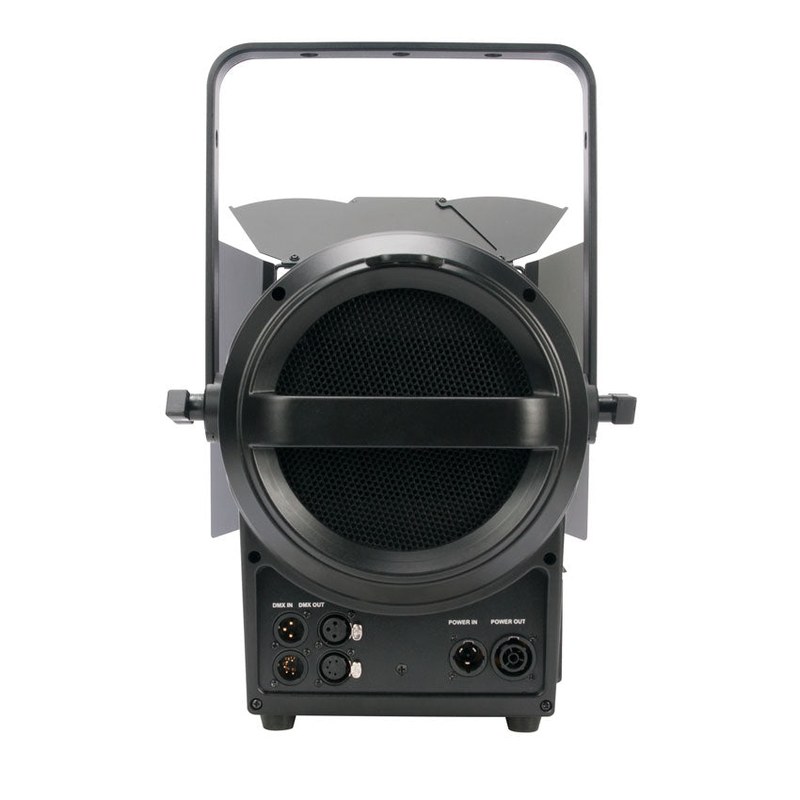

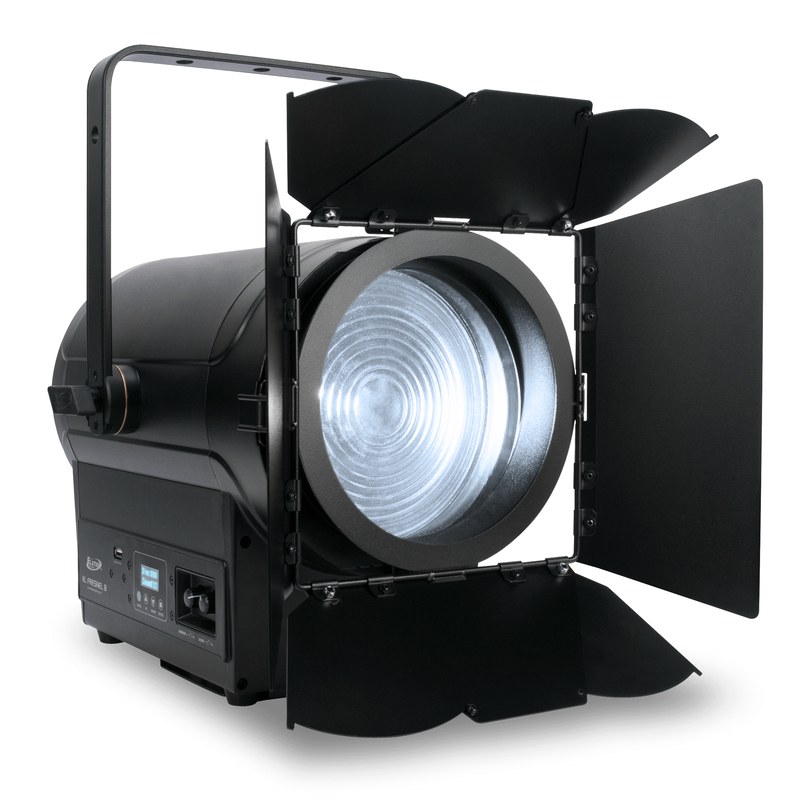

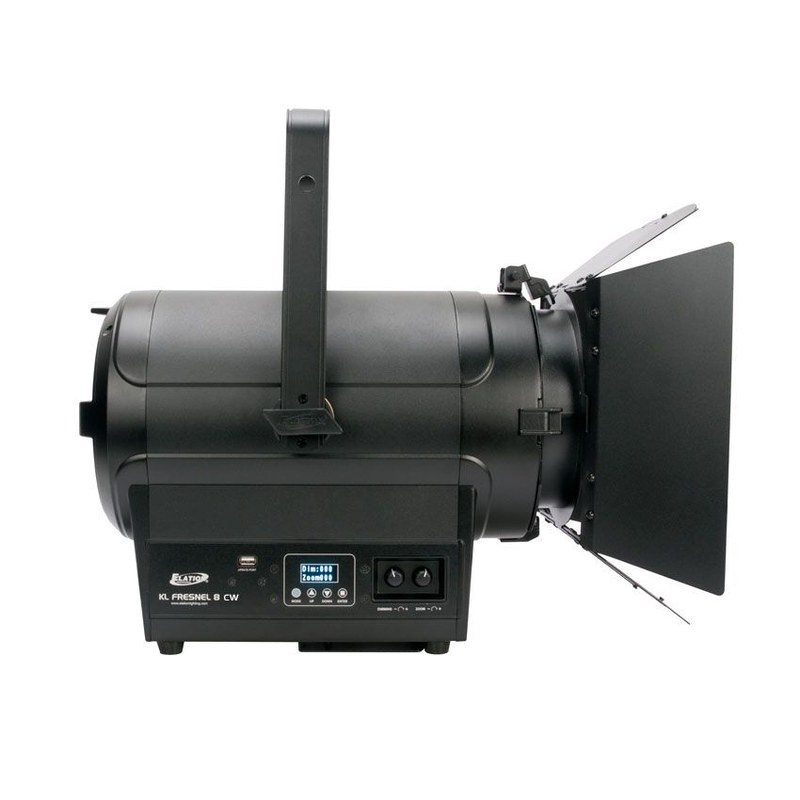

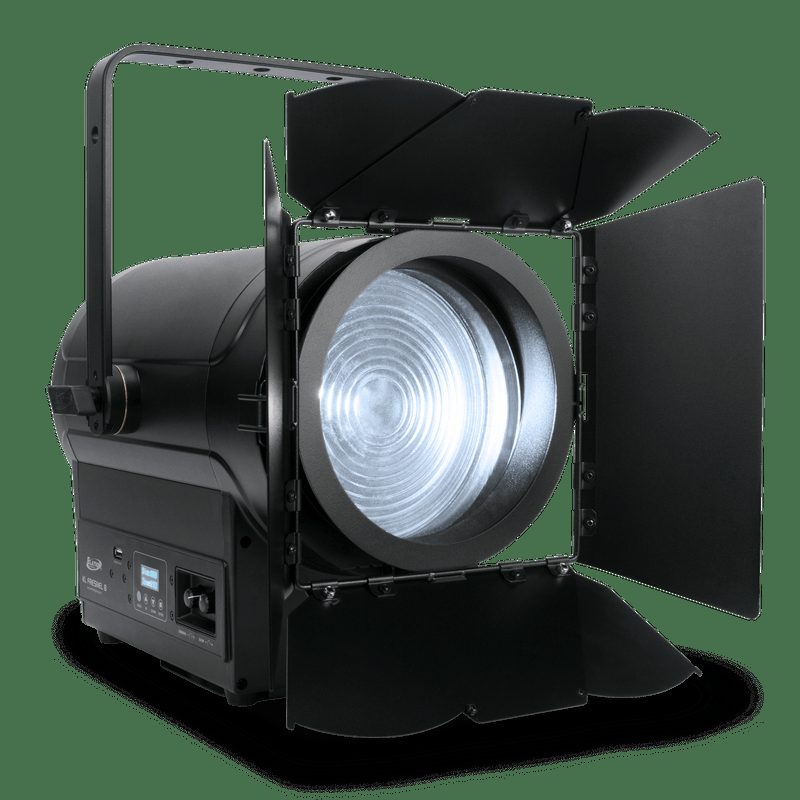

Elation KL FRESNEL 8 CW

The Elation KL FRESNEL 8 CW is an LED Fresnel from Elation. Elation lists the source as 350W Cool White LED Engine, 5,600K, 97CRI, 50,000 Hour Average LED Life. Published photometric data: up to 14,000 Total Lumen Output, 16,762 LUX 1,557 FC @ 9.8' (3m) (Min. Zoom), 1462 LUX 136 FC @ 9.8' (3m) (Max. Zoom), Zoom Range 11 deg - 56 deg.

Control / connections covers Manual and DMX Controlled Dimmer, Shutter and Zoom, Dimmer and Zoom Rotary Dials, (5) DMX Channel Modes (2 / 3 / 3 / 6 / 7). Listed length: 17.5" (445mm). Ordering code KL FRESNEL 8 CW.

Source	350W Cool White LED Engine, 5,600K, 97CRI, 50,000 Hour Average LED Life
Photometric Data	up to 14,000 Total Lumen Output, 16,762 LUX 1,557 FC @ 9.8' (3m) (Min. Zoom), 1462 LUX 136 FC @ 9.8' (3m) (Max. Zoom), Zoom Range 11 deg - 56 deg, Beam Angle 11 deg - 56.2 deg, Field Angl...
Effects	Motorized Zoom, Electronic Dimmer and Strobe, Variable 16-bit Dimming Modes and Curves
Color	5,600K Cool White LED
Control / Connections	Manual and DMX Controlled Dimmer, Shutter and Zoom, Dimmer and Zoom Rotary Dials, (5) DMX Channel Modes (2 / 3 / 3 / 6 / 7), 4 Button Control Panel LCD Menu Display, RDM (Remote Device Ma...
Length	17.5" (445mm)
Width	12.89" (327.5mm)
Vertical Height	17.95" (456mm)
