Eiki WPG02 EIKIShare Wireless Presentation Gateway
The EIKIShare gateway puts a display on the network instead of at the end of a cable run: connect it to a projector or screen over HDMI, and up to 8 laptops or mobile devices can share their screen over Wi-Fi at once, with up to 4 shown simultaneously. It reads native Miracast and AirPlay on Android and iOS, and pairs with the WPG02-T USB transmitter for one-click sharing from a Windows or Mac laptop that would rather plug in a dongle than dig through a Wi-Fi menu.
Output runs up to 4K at 30Hz over HDMI 2.0, with a wired gigabit Ethernet port to put the gateway itself on the house network for control or a hotspot connection when no house Wi-Fi is available. Frame rate scales from 30 to 60fps depending on how many sources are sharing, with 90-150ms of latency, and a 165-foot (50m) wireless range covers a full classroom or boardroom without a repeater.

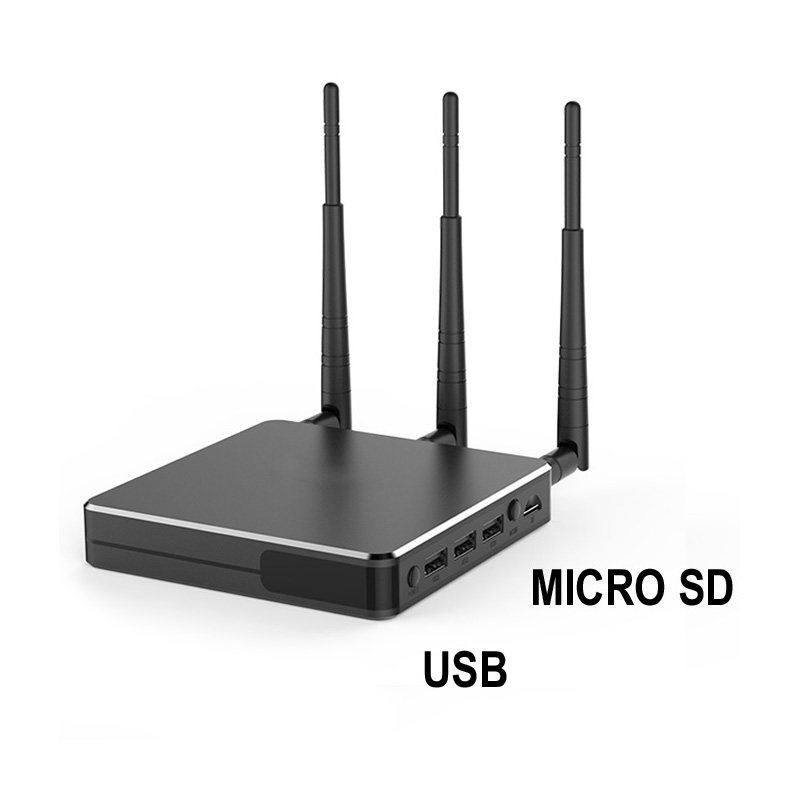

| Inputs | 3x USB-A, 1x Micro SD/TF card |
|---|---|

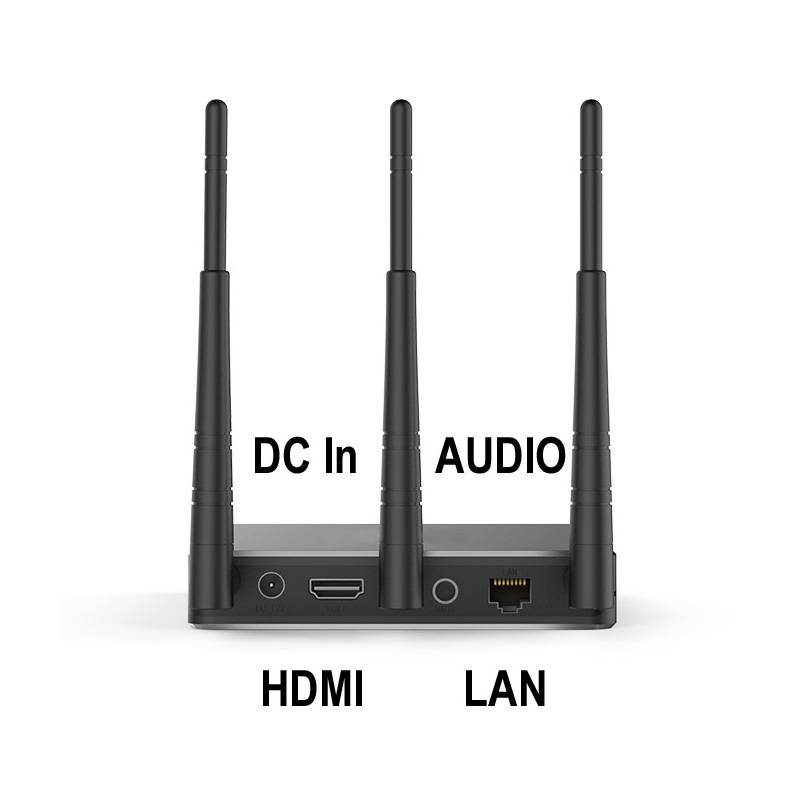

| Outputs | 1x HDMI 2.0, 1x 3.5mm mini-stereo |
| Output Resolution | Up to 4K @ 30Hz |
| Max Simultaneous Screens | 4 (up to 8 connected devices) |
| Wireless | 2.4/5GHz Wi-Fi and Wi-Fi hotspot, 165 ft (50m) range |
| Wired Network | 1x RJ45 (100/1000 Mbps) |
| Mobile Support | Android/iOS via Miracast and AirPlay |
| Transmitter Support | Windows 7+ and Mac via WPG02-T USB transmitter |
