DVDO Splitter-12-SE 4K 1x2 HDMI Splitter with Scaler and Audio Extract

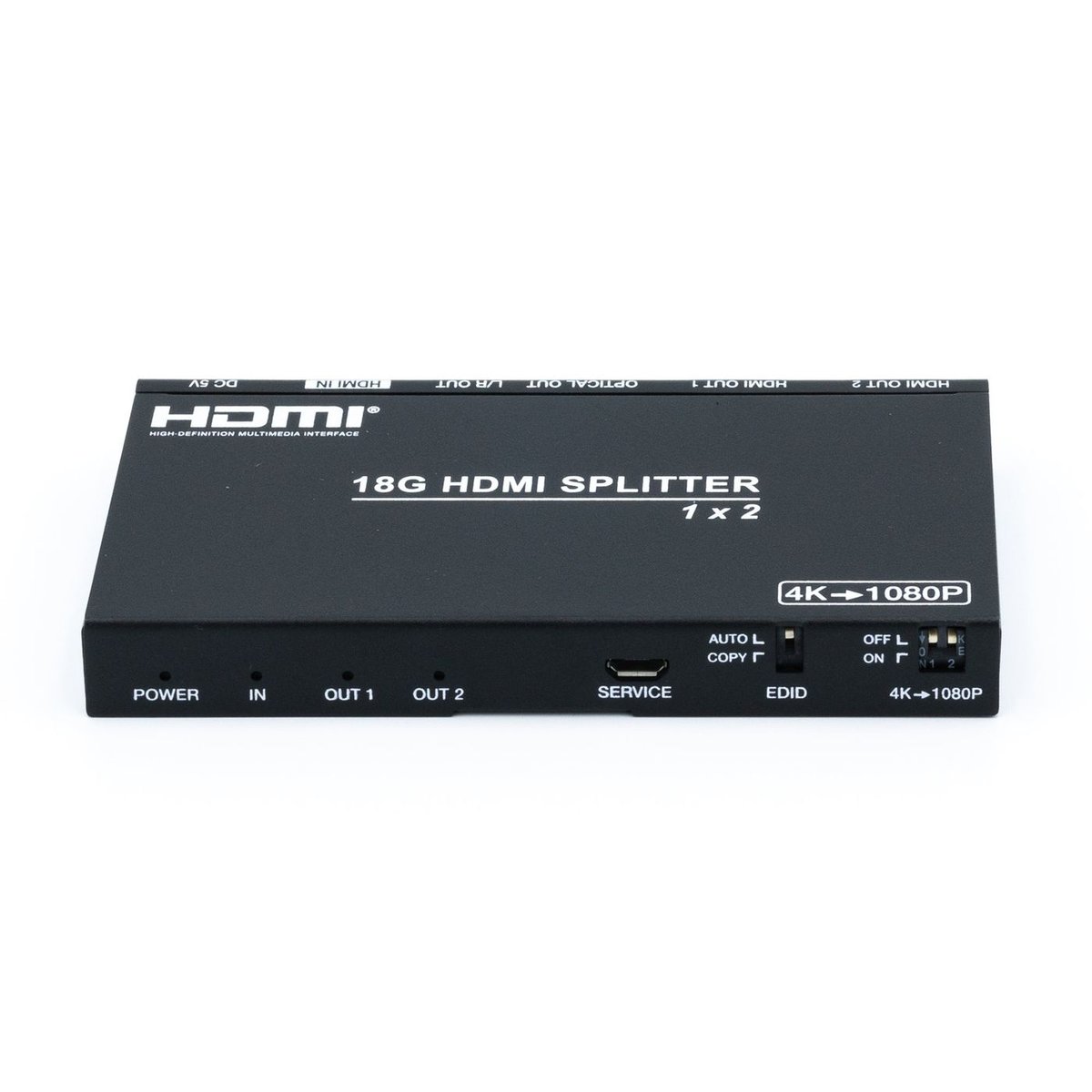

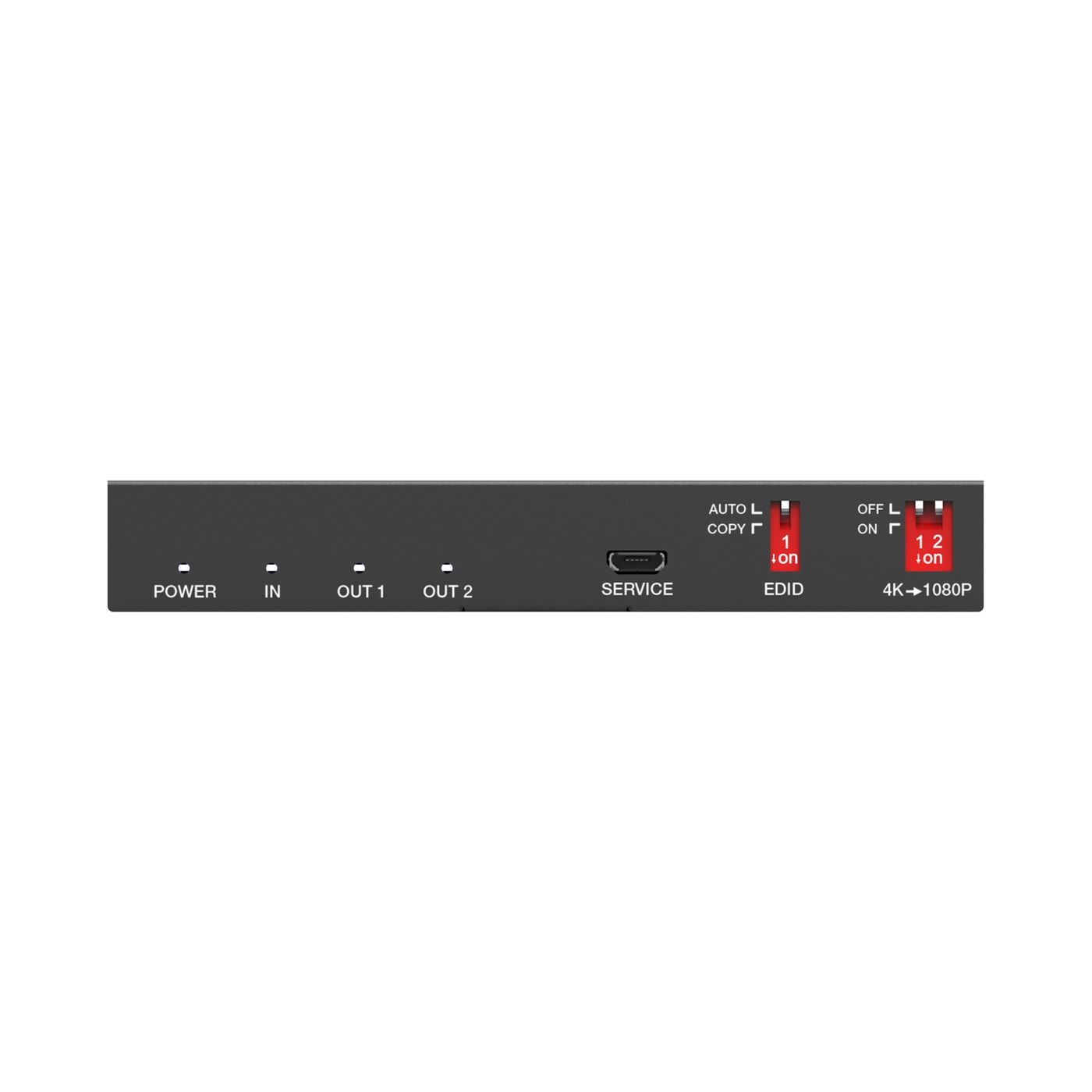

The Splitter-12-SE sends one HDMI source to two displays at up to 4K2K 50 or 60 Hz in 4:4:4, with HDCP 2.2. A dial switch on the panel selects bypass or a 4K to 1080p downscale, which is the setting that saves an install where one of the two displays is older than the other.

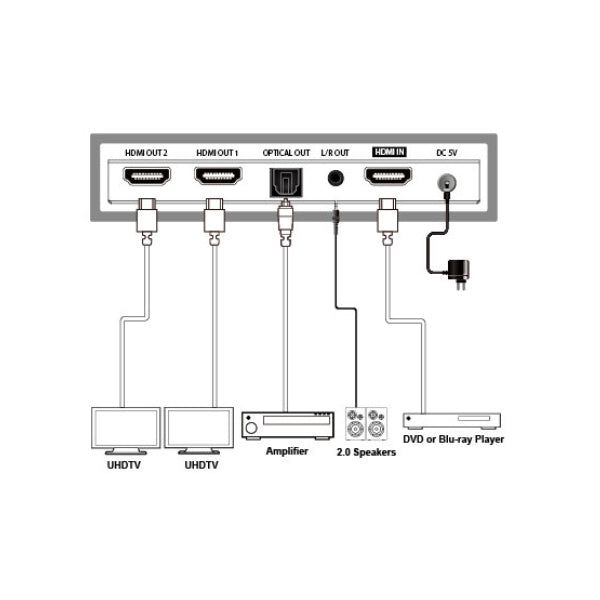

Audio extraction is on board, pulling the HDMI audio out to separate optical and analog outputs for a soundbar or an amplifier. EDID handling has two panel-selected modes: COPY takes the EDID from OUT 1 and applies it to both outputs, while AUTO compares both displays and settles on the best resolution they share. Supported pass-through formats include LPCM, Dolby Digital and Plus, Dolby TrueHD, DTS, DTS-HD Master Audio and DSD.
