Datavideo iCAST Mini 4K Dual Channel Presentation Switcher

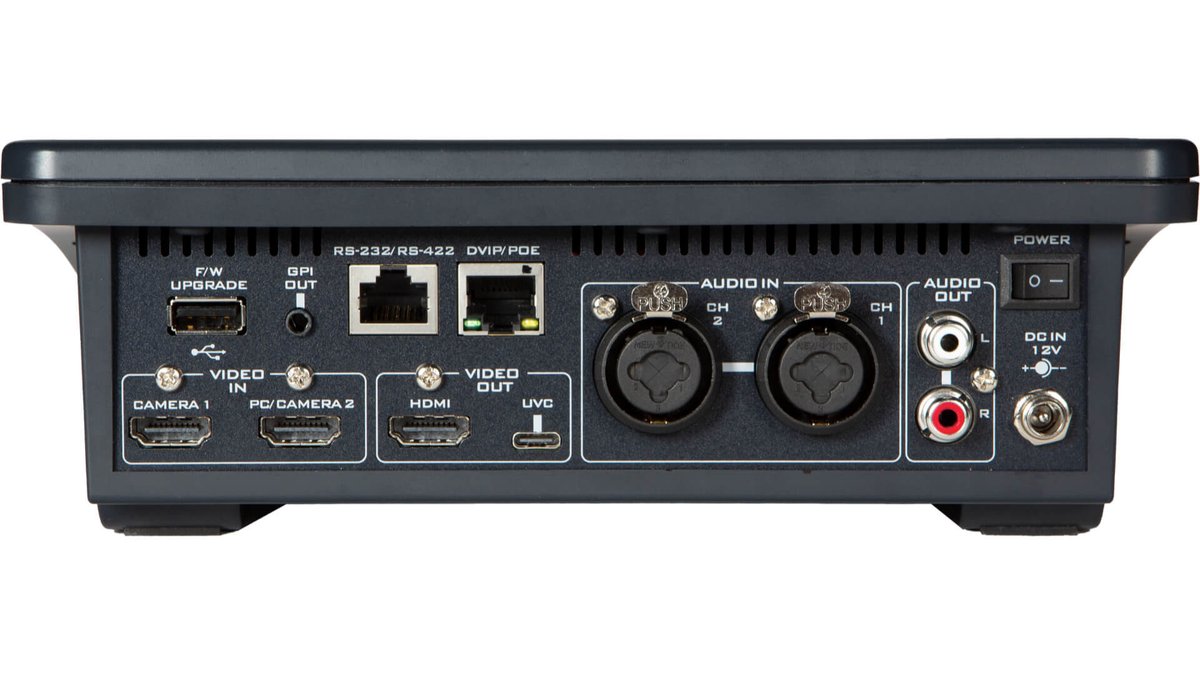

The iCAST mini is aimed squarely at the single operator running a training session or a hybrid classroom: two HDMI 1.4 inputs for a camera and a slide feed, one HDMI output for the room, and a USB 3.0 Type-C UVC output so the mixed program appears in Zoom or Teams as a webcam.

Audio is handled properly rather than as an afterthought, with two XLR and 1/4 inch combo inputs for real microphones. Video processing is 4K and 2K/30 at 4:4:4 8-bit with a down-converted output available. The touch panel uses one button per function, so a presenter who is not an operator can still cut between camera and slides without a rehearsal.

  • Video Input2 x HDMI 1.4
  • Computer Graphic Interface2 via HDMI
  • Analogue Audio Input2 x 3-pin XLR / 6.3mm combo socket
  • Down Converted OutputYes
  • PowerDC 12V 18.7W
Video Standard4K and HD
Video Input2 x 1.4
Video Output1 x HDMI 1.4, 1 x USB 3.0 Type-C (UVC)
Video Processing4K, 2K/30 4:4:4 8-bit
Computer Graphic Interface2 via HDMI
Analogue Audio Input2 x 3-pin / 6.3mm combo socket
Down Converted OutputYes

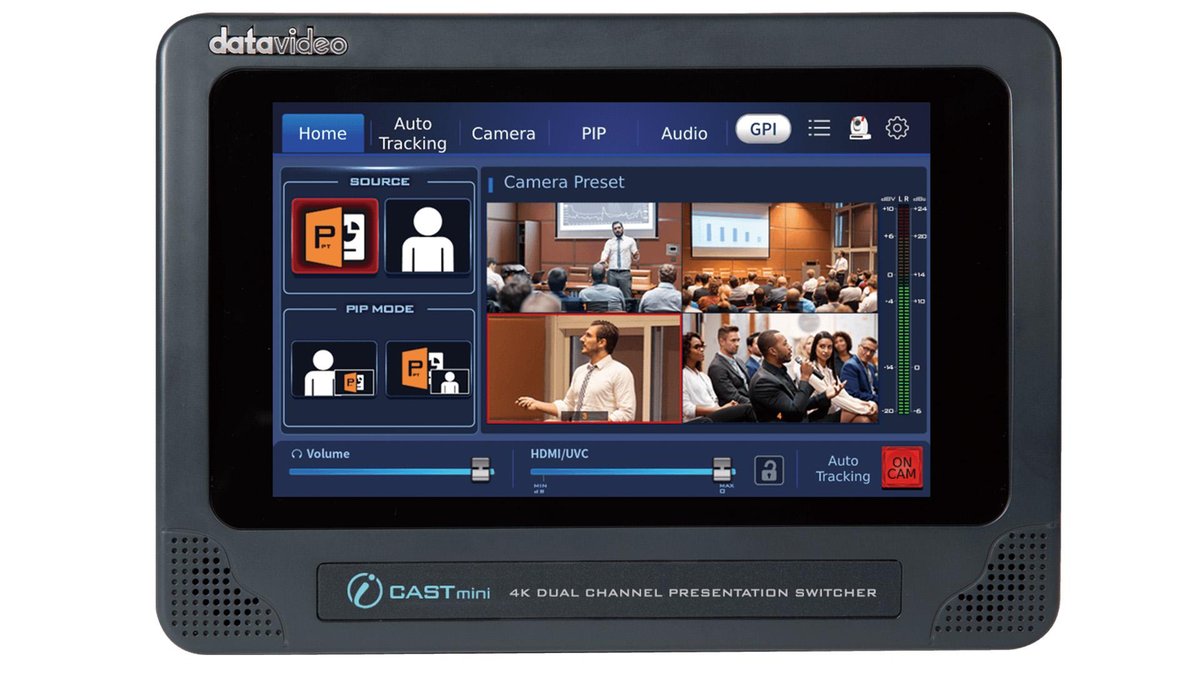

ControlIntegrated touch panel, one button per function
Weight1.1 kg
PowerDC 12V 18.7W
