DAS Audio HQ-212.95-CX Two-Way Passive Loudspeaker

The DAS Audio HQ-212.95-CX is a two-way passive loudspeaker built around the 12LQN4C low-frequency driver with the M-78N compression driver on a BCH-9050-7037 waveguide. It covers 63 Hz - 18 kHz, and it reaches 140 dB peak at one metre. Nominal coverage is 90 deg horizontal by 50 deg vertical.

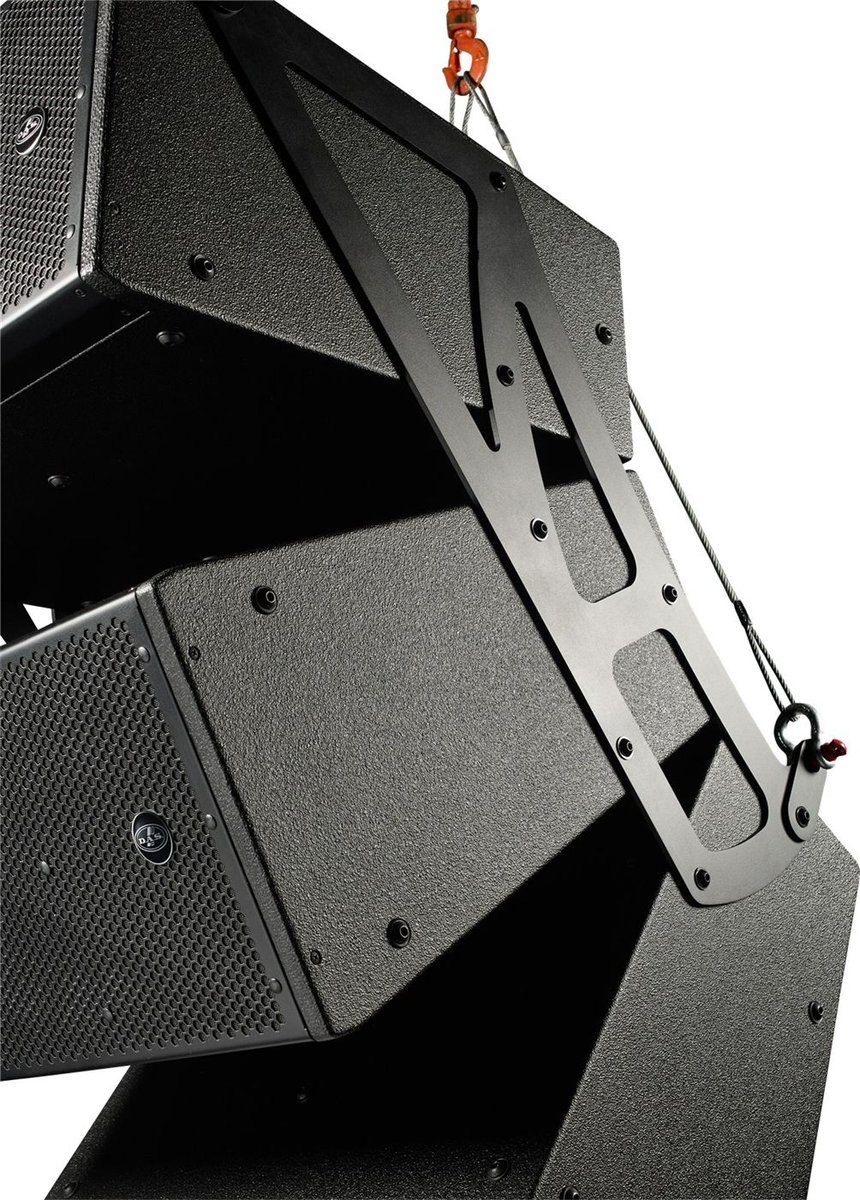

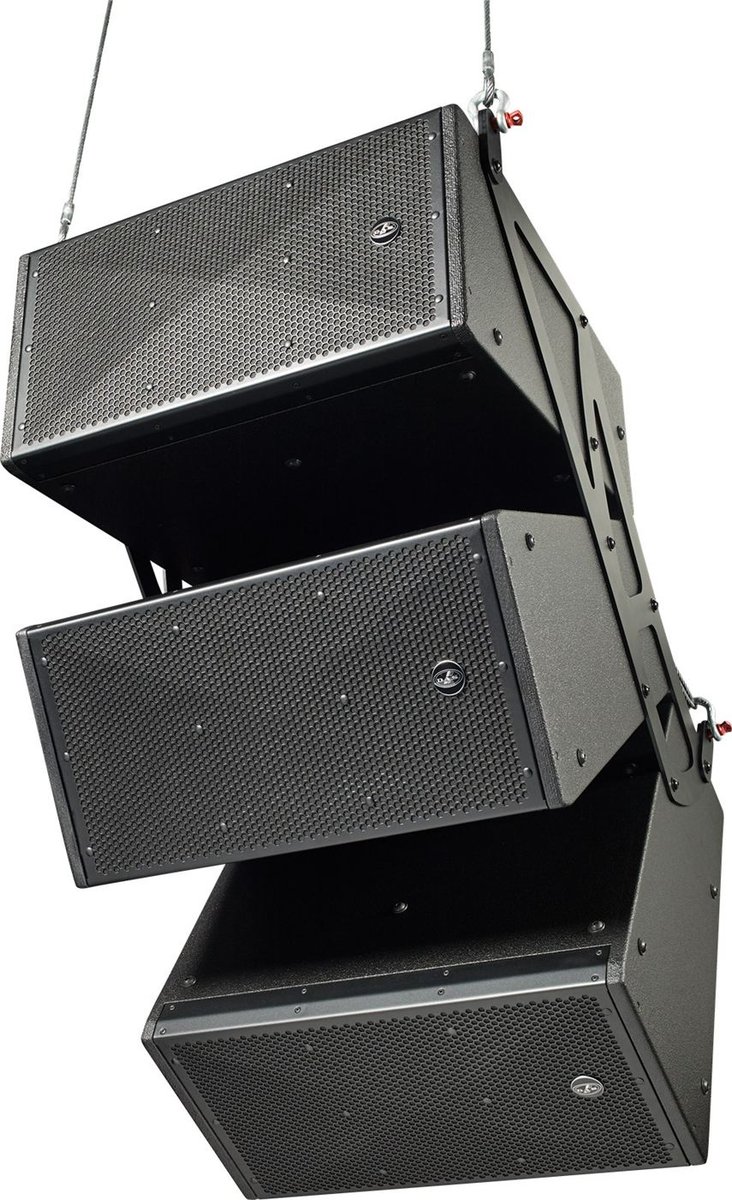

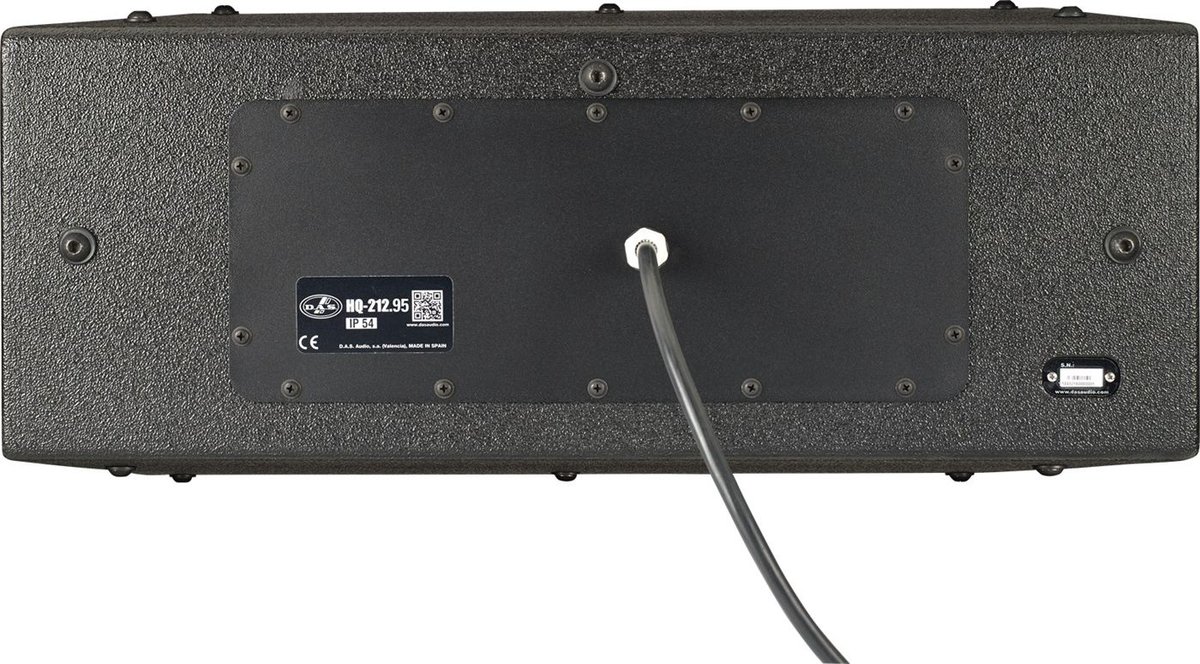

It is a passive box, 8 ohms nominal, handling 800 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 49.0 kg (85.9 lb).

Frequency Range (-10 dB)	63 Hz - 18 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	50 deg
Nominal Impedance	8 ohms
RMS Power Handling	800 W
Peak Power Handling	3200 W
On-axis Sensitivity 1W/1 m	105 dB
Maximum Peak SPL at 1 m	140 dB
