DAS Audio HQ-212.64-DX Two-Way Passive Loudspeaker

The DAS Audio HQ-212.64-DX is a two-way passive loudspeaker built around the GM-12LQN4 low-frequency driver with the M-78N compression driver on a BCH-6040-7037 waveguide. It covers 63 Hz - 18 kHz, and it reaches 141 dB peak at one metre. Nominal coverage is 60 deg horizontal by 40 deg vertical.

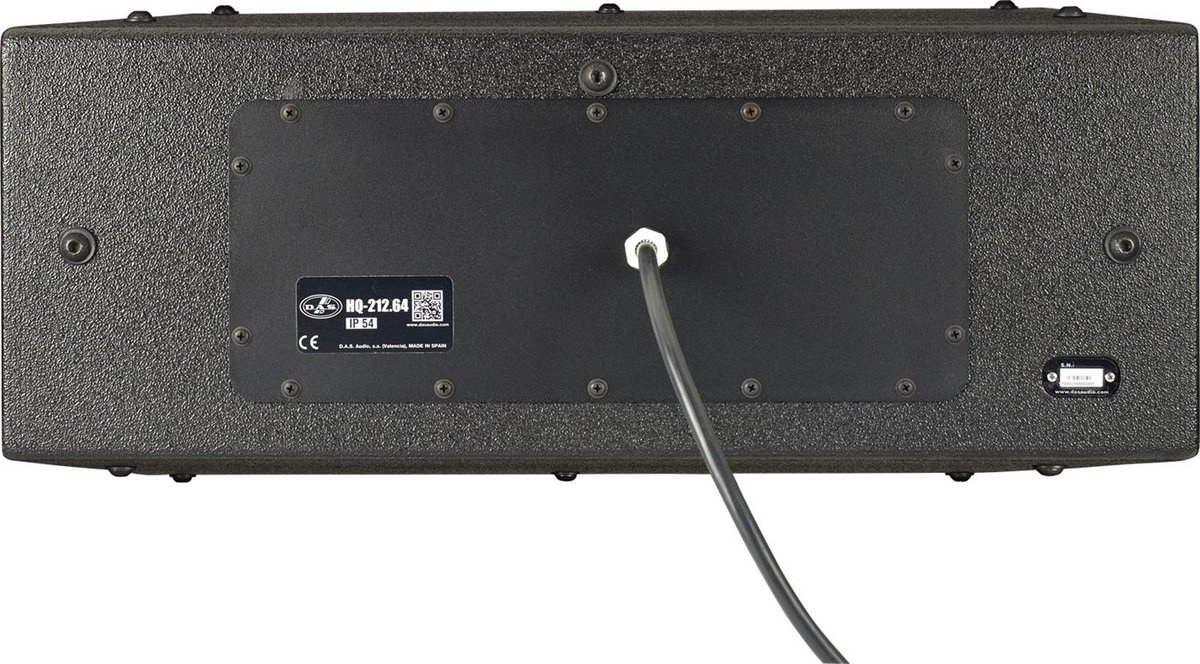

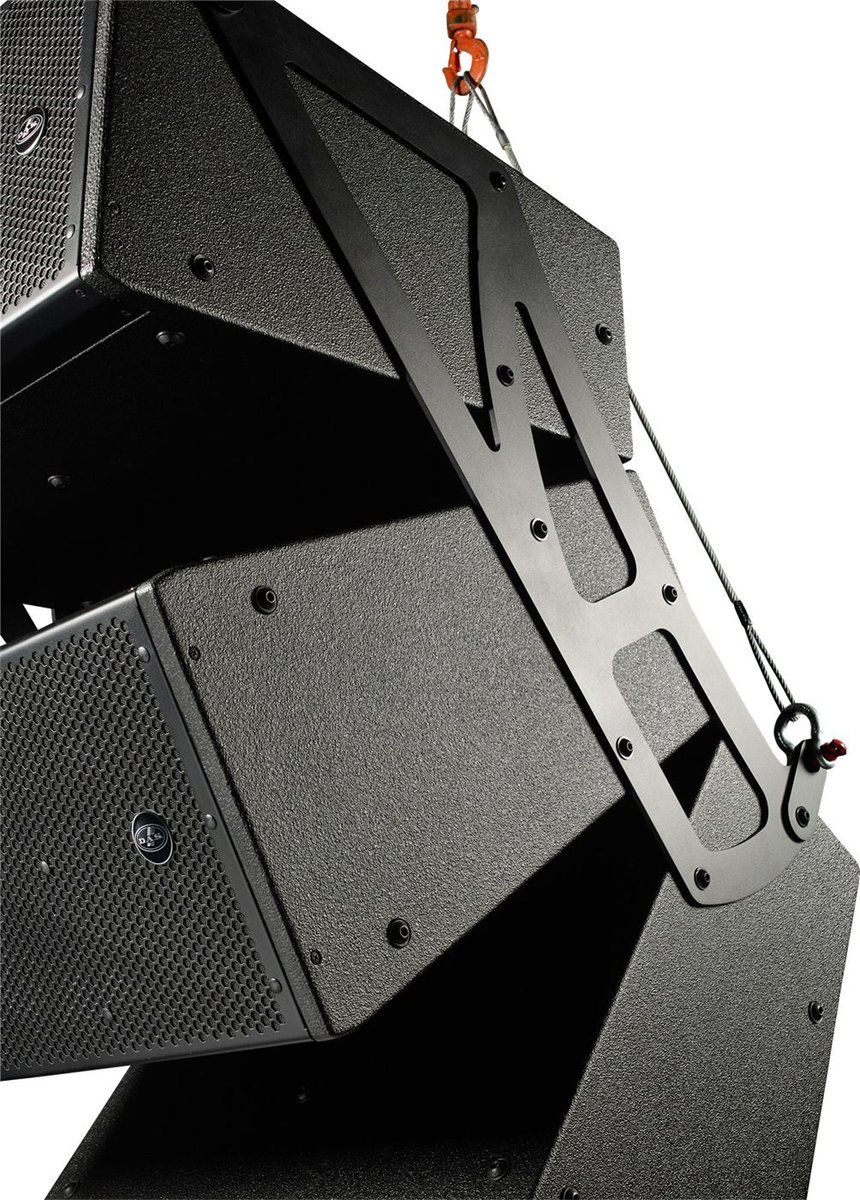

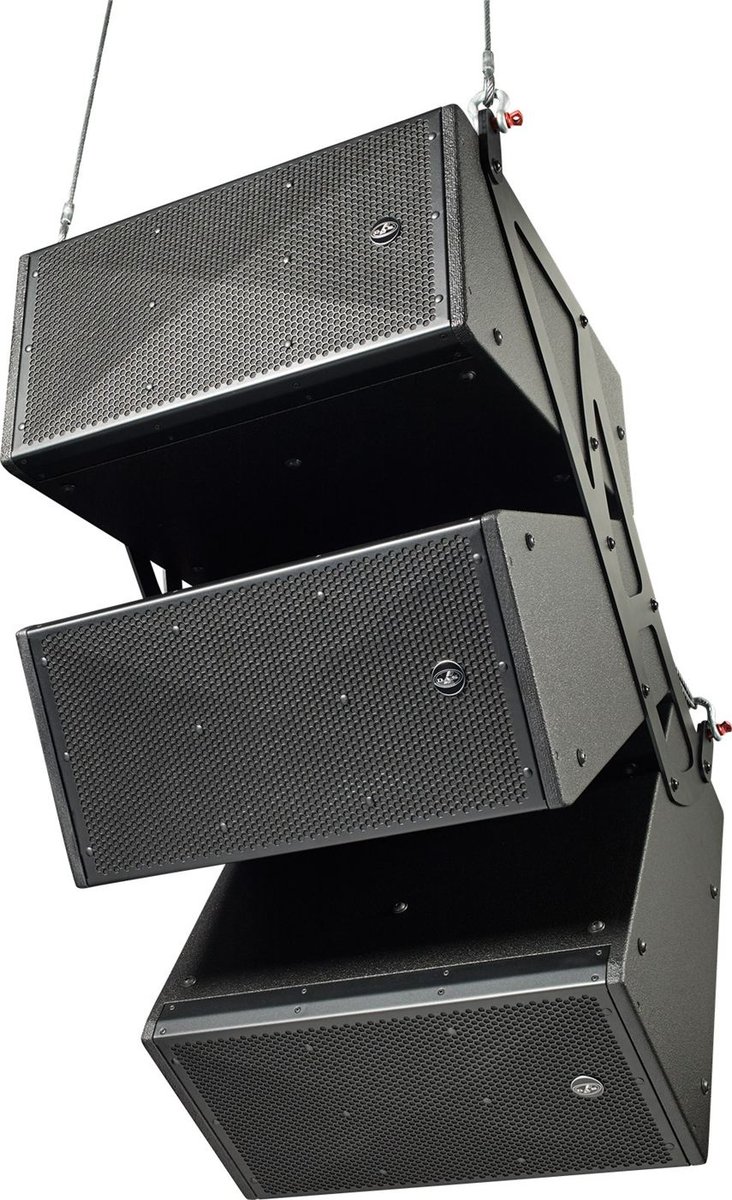

It is a passive box, 8 ohms nominal, handling 800 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. The enclosure is built in Birch Plywood, finished in Fiberglass. Rigging provision: M10 Rigging Points. Net weight is 49.0 kg (85.9 lb).

Frequency Range (-10 dB)	63 Hz - 18 kHz
Horizontal Coverage (-6 dB)	60 deg
Vertical Coverage	40 deg
Nominal Impedance	8 ohms
RMS Power Handling	800 W
Peak Power Handling	3200 W
On-axis Sensitivity 1W/1 m	106 dB
Maximum Peak SPL at 1 m	141 dB
