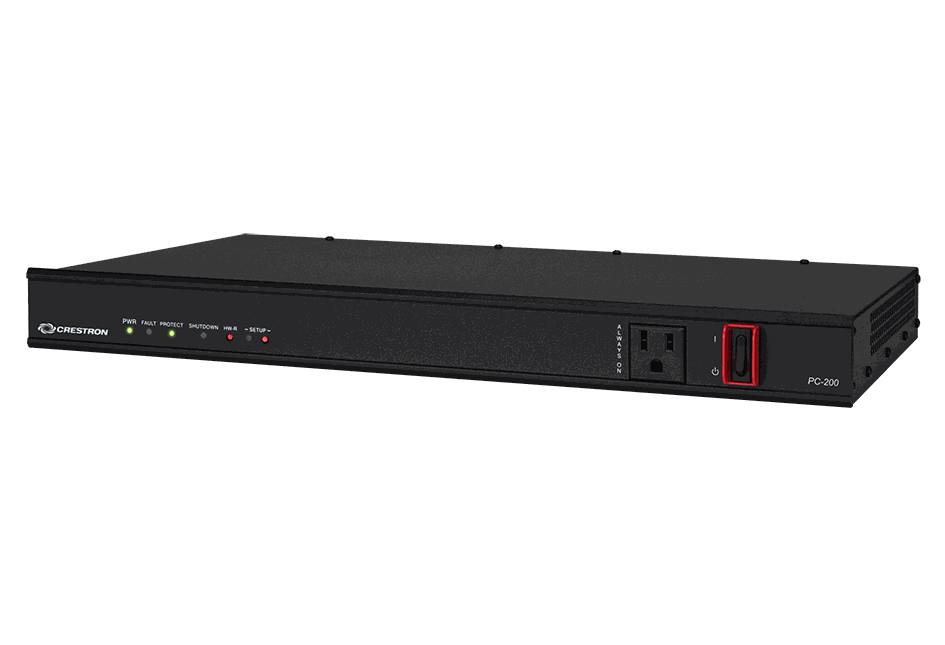

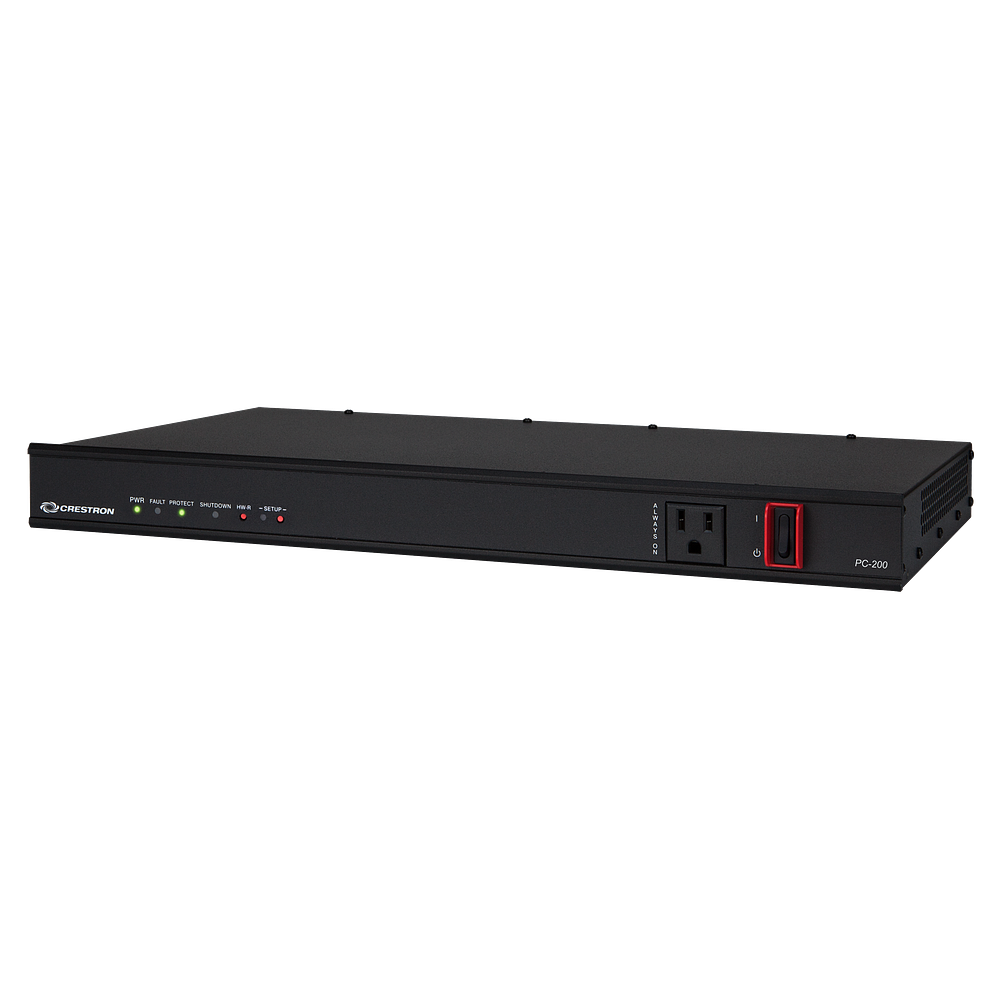

Crestron PC-200 Energy Monitoring Power Conditioner and Controller 200

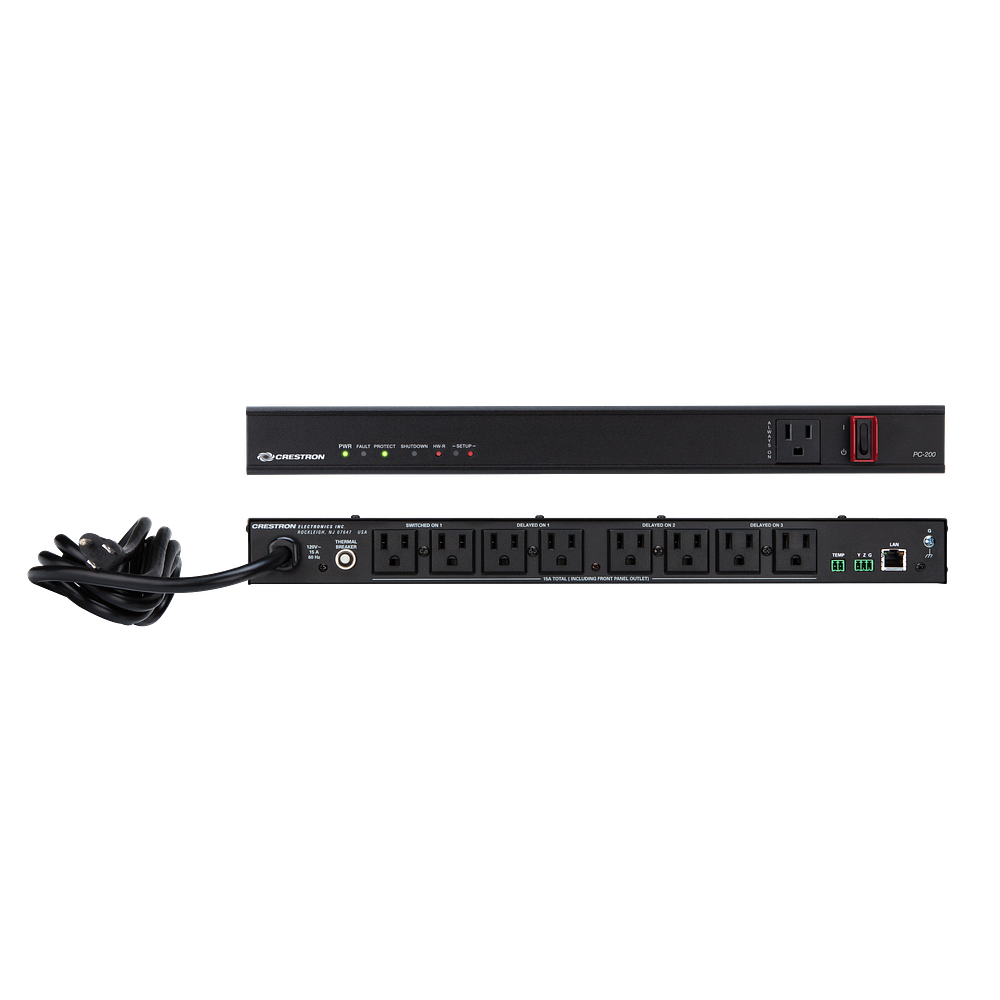

The PC-200 is a 1RU power conditioner that also acts as a controllable, instrumented power strip for a rack. Eight switched outlets sit on the rear in four banks of two, with a ninth unswitched convenience outlet on the front; all nine are protected, filtered and monitored. Three of the four banks take an independently adjustable turn-on delay up to 10 seconds, so equipment powers up in the right order and the main breaker is not asked to swallow every inrush at once, and those same three banks switch remotely for load shedding and selective power control.

Protection is UL 1449 Type 3 Listed surge suppression at 2000 J per mode, EMI and RFI filtering, a thermal breaker, adjustable over and under voltage cutoff, and wiring fault detection that shuts the rear outlets down until an input miswire is corrected. RMS voltage and current sensing at the input feeds energy logging in watts, amps and watt-hours; an included external temperature sensor watches the rack, with an adjustable over temperature cutoff. Ping monitoring reboots the bank feeding an unresponsive device after four failed tries. Setup runs in a browser, with integration to a Crestron control system over Ethernet or Cresnet, plus myCrestron, Crestron Fusion and SNMP.
