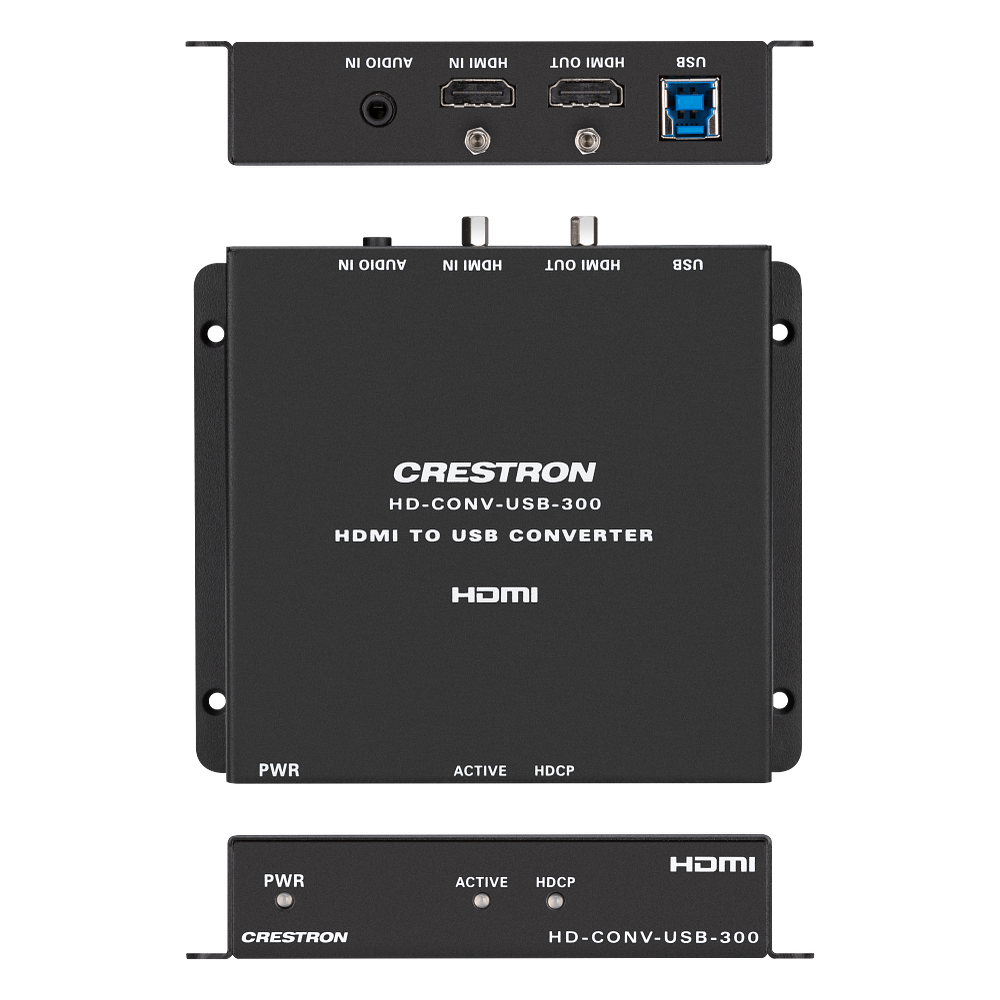

Crestron HD-CONV-USB-300 HDMI to USB 3.0 Converter
The HD-CONV-USB-300 converts an HDMI signal to USB 3.0, capturing uncompressed 1080p60 video with digital or analog stereo audio. It presents itself as a USB Video Class and USB Audio Class device, so Teams, Zoom, OBS and the rest see it as a camera and a microphone with no driver to install.
Sources above Full HD, up to 4K UHD, are scaled to 1080p for capture, and video timing stabilization keeps the USB stream steady when the source changes format. Use it standalone to get a camera, player or PC into a soft codec, or as the capture stage of an integrated Crestron UC system.
| Dimensions | 4.55 in. (116 mm) H x 5.04 in. (128 mm) W x 0.98 in. (25 mm) D |
|---|---|
| Input Signal Type | HDMI 2.0 (DVI 1.0 compatible) |
| Output Signal Type | USB 3.0 supporting UVC; HDMI 2.0 (DVI 1.0 compatible) loop out port with support for HDCP 2.2/1.x |
| USB | USB 3.0 device supporting UVC and UAC |
| HDMI IN | (1) HDMI Type A connector, female; Digital video/audio input |

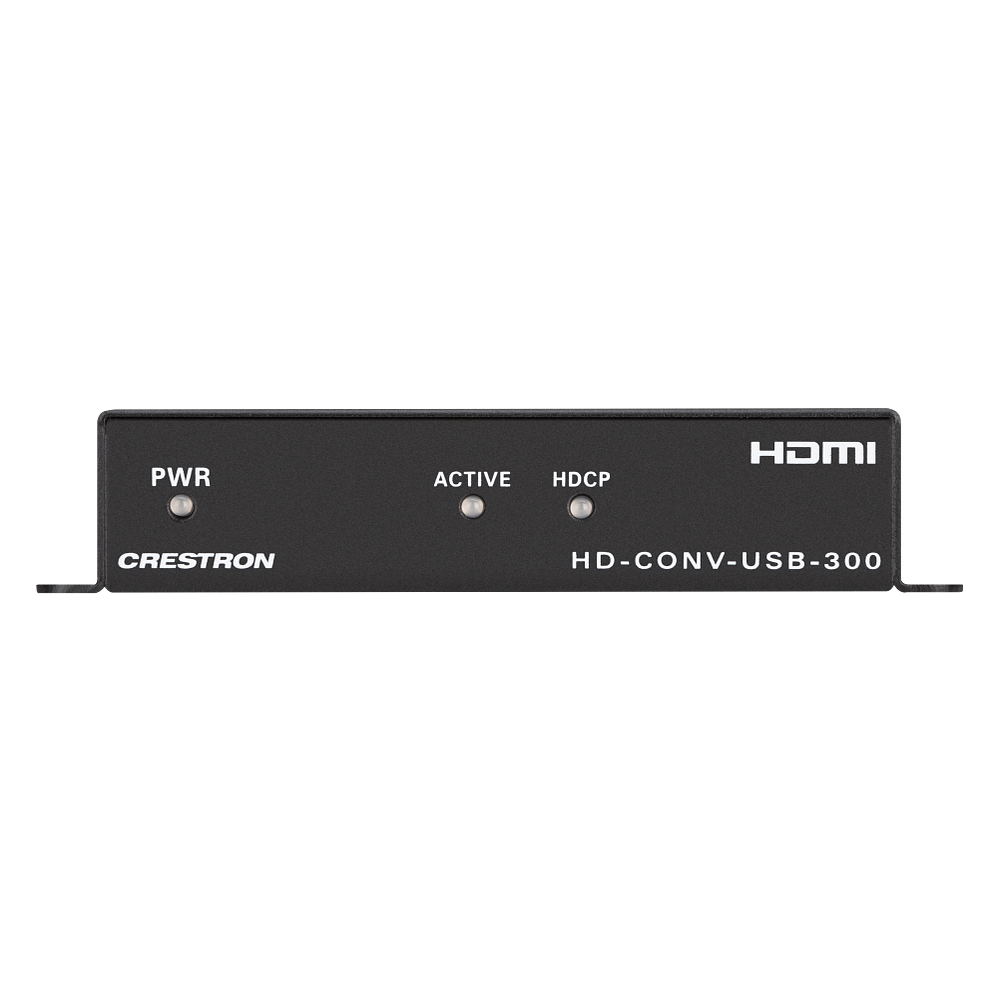

| PWR | (1) LED; Green indicates that there is an HDMI source. Red indicates that there is no HDMI source. |
| Power | USB bus powered |
| Temperature | 32 deg to 104 deg F (0 deg to 40 deg C) |
