Crestron DMF-CI-8 DigitalMedia Card Chassis for DM-NVX-C & DMCF, 8 Slots

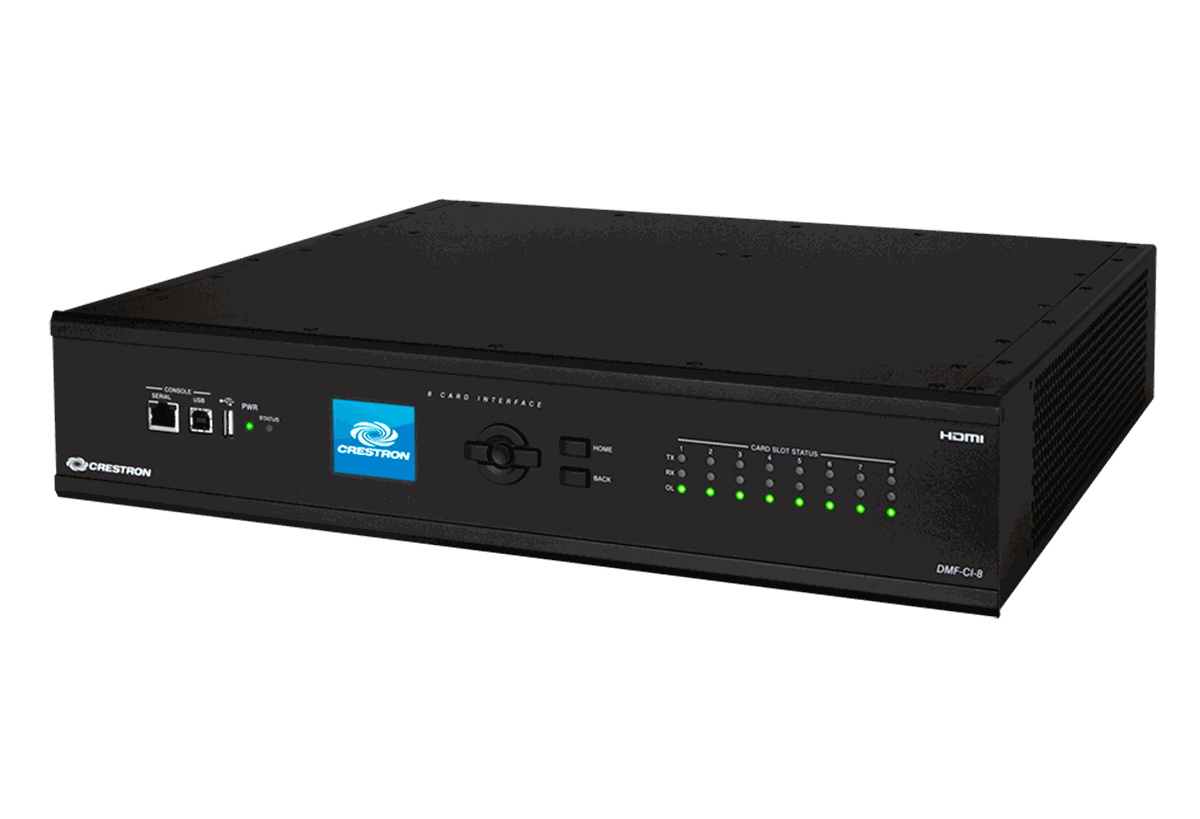

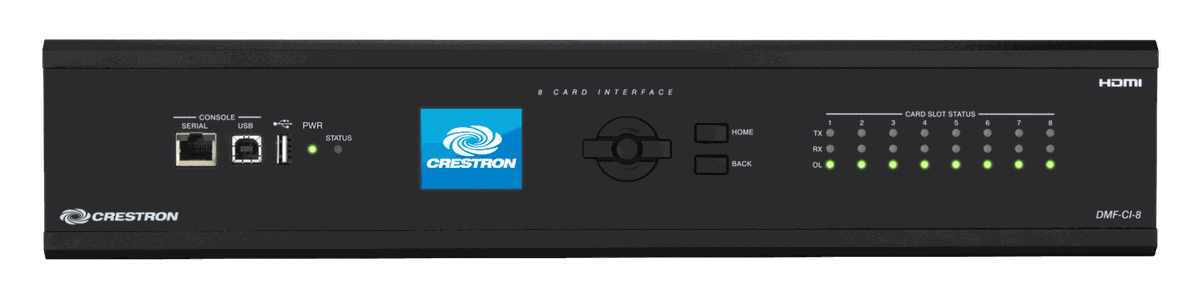

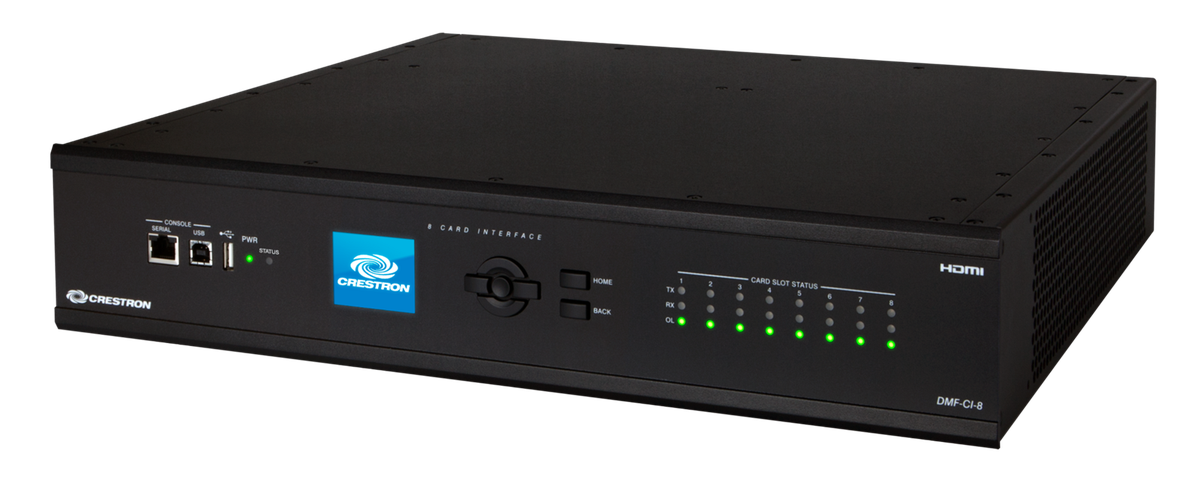

The Crestron DMF-CI-8 is an eight-slot DigitalMedia card chassis. Populate it with the card versions of the DM NVX endpoints and with DMCF fiber cards, and eight standalone boxes collapse into one rack-mounted frame with shared power and one management address.
It runs on (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included. Power consumption is 350 Watts fully loaded. Mounting is freestanding or 2 RU 19-inch rack-mountable (rack ears included). The chassis is managed as one device, so the cards inside it inherit its network address and firmware campaign.

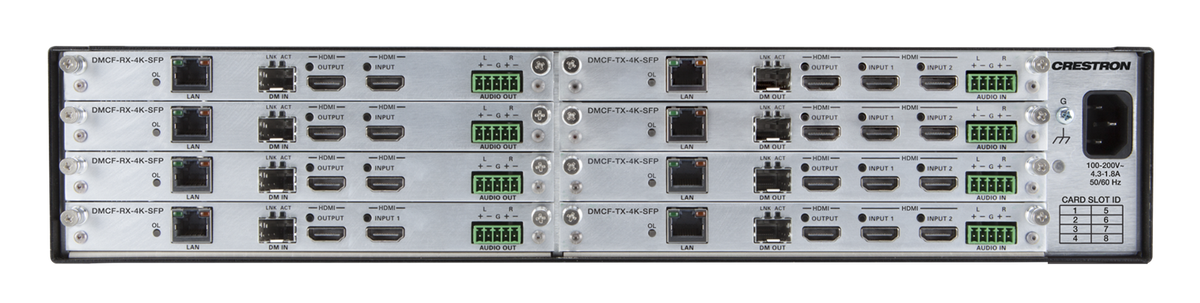

| CARD SLOT ID 1 - 8 | (8) Card slots; Each slot accepts (1) DM-NVX-C series encoder/decoder card or (1) DMCF series transmitter or receiver card |
|---|---|
| Main Power | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
| Power Consumption | 350 Watts fully loaded |
| USB Host | For loading of firmware via a USB mass storage device |
| Chassis | Metal with black finish, vented sides, fan-cooled |
| Mounting | Freestanding or 2 RU 19-inch rack-mountable (rack ears included) |
| Acoustic Noise | 43 dBA typical @ 70 degF (21 degC) ambient temperature |
| Heat Dissipation | 1195 BTU/hr fully loaded |
