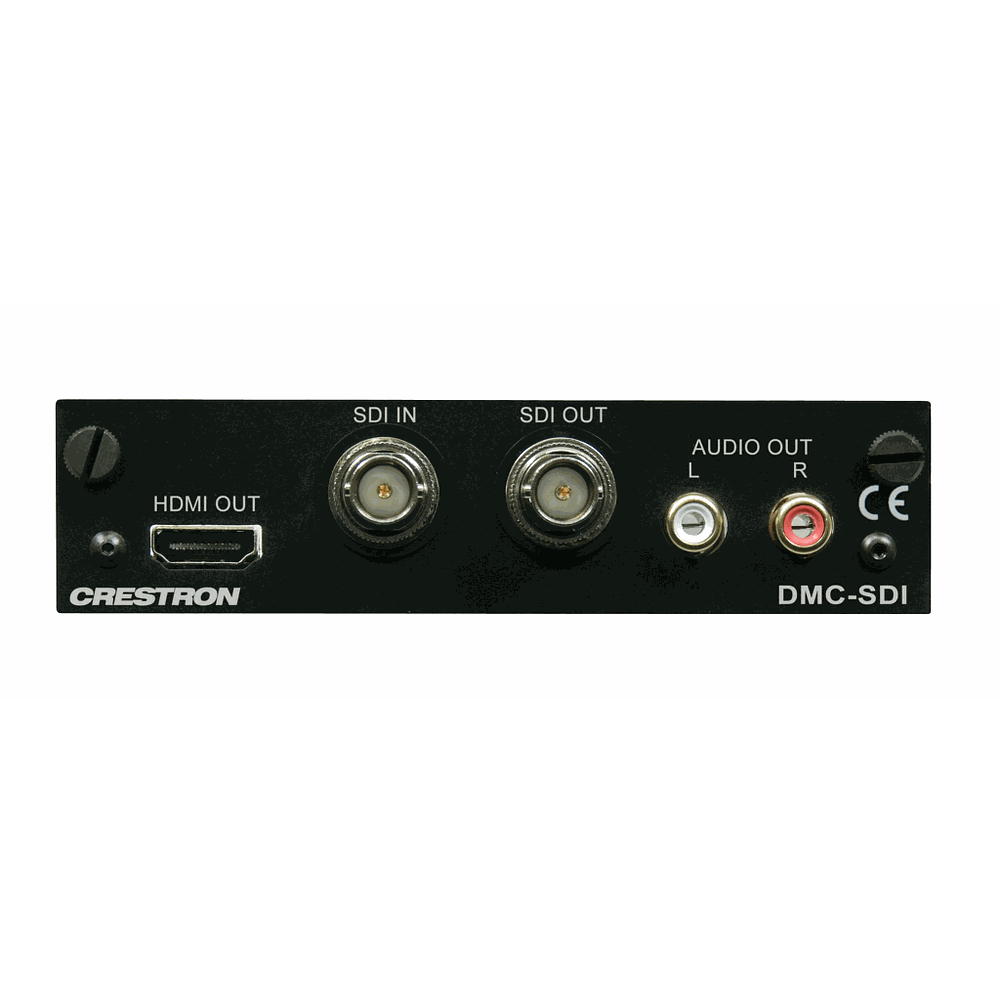

Crestron DMC-SDI

The DMC-SDI is an SDI input card for any card-based Crestron DigitalMedia switcher. It provides one SDI input with complementary SDI loop-through, HDMI pass-through, and analog audio outputs. The input supports SD-SDI, HD-SDI, and 3G-SDI formats, handling high-definition video up to 1080p60 and two channels of 24-bit digital audio through a single coaxial cable. Support for 3G-SDI lets a DM system accept signals from high-end professional cameras, broadcast switchers, and other AV equipment.

An SDI loop-through output feeds a local monitor or other SDI device, and the HDMI pass-through can send the input signal to a local audio processor or monitor or feed a second DM switcher for output expansion. The card also includes an unbalanced analog audio output for extracting stereo audio to a sound or multiroom system, with volume adjustable from a control system. The card installs in a DM switcher chassis.
