Crestron CHV-RTHS Remote Temperature and Humidity Sensor
The CHV-RTHS is a wall-mounted remote sensor that reports both temperature and relative humidity back to a Crestron thermostat, which is what a system needs before it can do anything sensible about dehumidification. Temperature accuracy is 1 degree F across the range, humidity is read across the full 0 to 100% RH with a 5% measurement range tolerance.

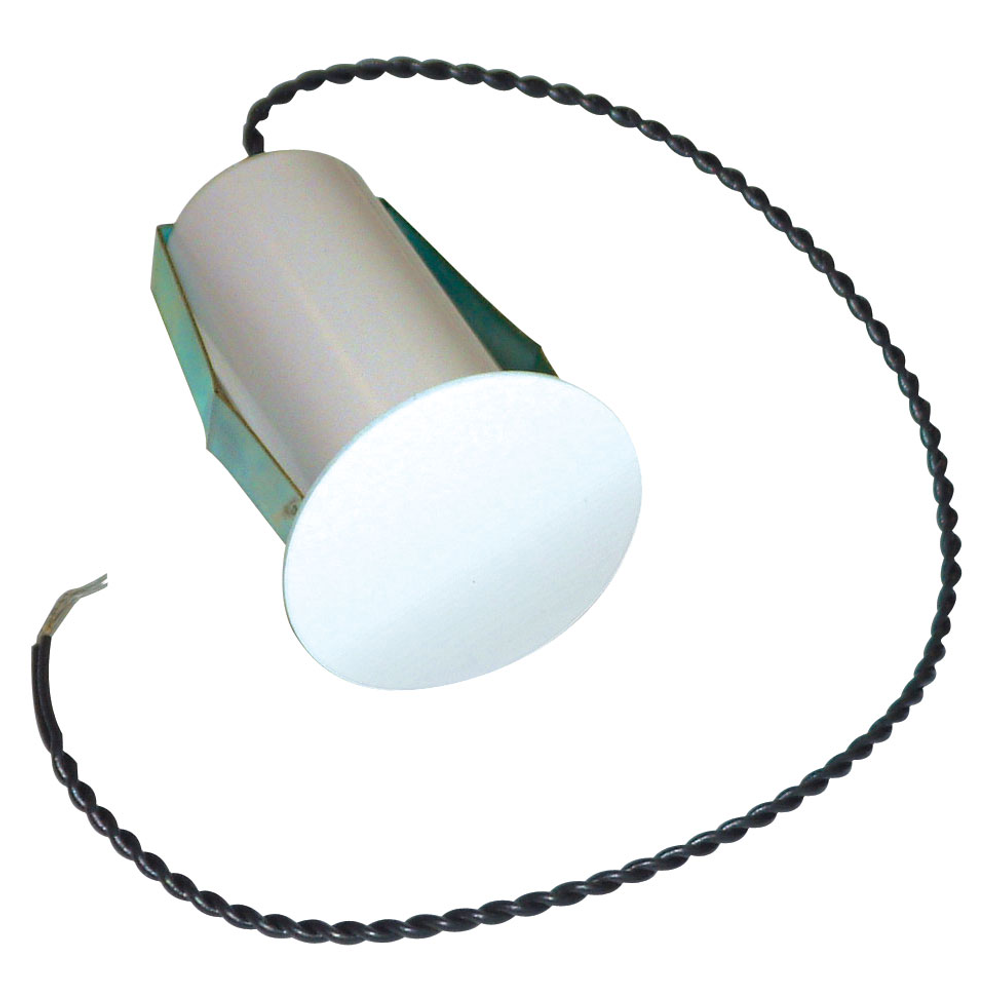

It is built to vanish. The face is 1.50 in. across and stands about 1/8 in. proud of the wall, with a primed metal cap intended to be painted or papered over. It drops into a 1 in. round hole in drywall, connects with a single non-polarized twisted pair from a 10 in. 22 AWG pigtail, and can sit up to 500 ft from the thermostat over CAT5. An MMK-RS mounting kit, sold separately, handles the rough-in wiring and positioning during construction and allows a completely flush installation.
| Indoor Temperature Range | 0 to 110 degrees F (-18 to 43 degrees C) |
|---|---|
| Outdoor Temperature Range | -30 to 120 degrees F (-35 to 49 degrees C) |
| Temperature Accuracy | 1 degree F (0.5 degrees C) over full range |
| Humidity Range | 0% to 100% RH |
| Connection | (1) 10 in. (254 mm) 2-wire twisted-pair pigtail, 22 AWG, non-polarized |
| Maximum Cable Length | 500 ft (152 m) via CAT5 |
| Material | Cylindrical plastic with primed metal cap suitable for paint or wallpaper |
| Mounting | 1 in. (26 mm) diameter round hole in drywall; protrudes about 1/8 in. (3 mm); flush mount with MMK-RS kit, sold separately |
| Dimensions | 1.50 in. (39 mm) diameter x 2.22 in. (57 mm) deep |
