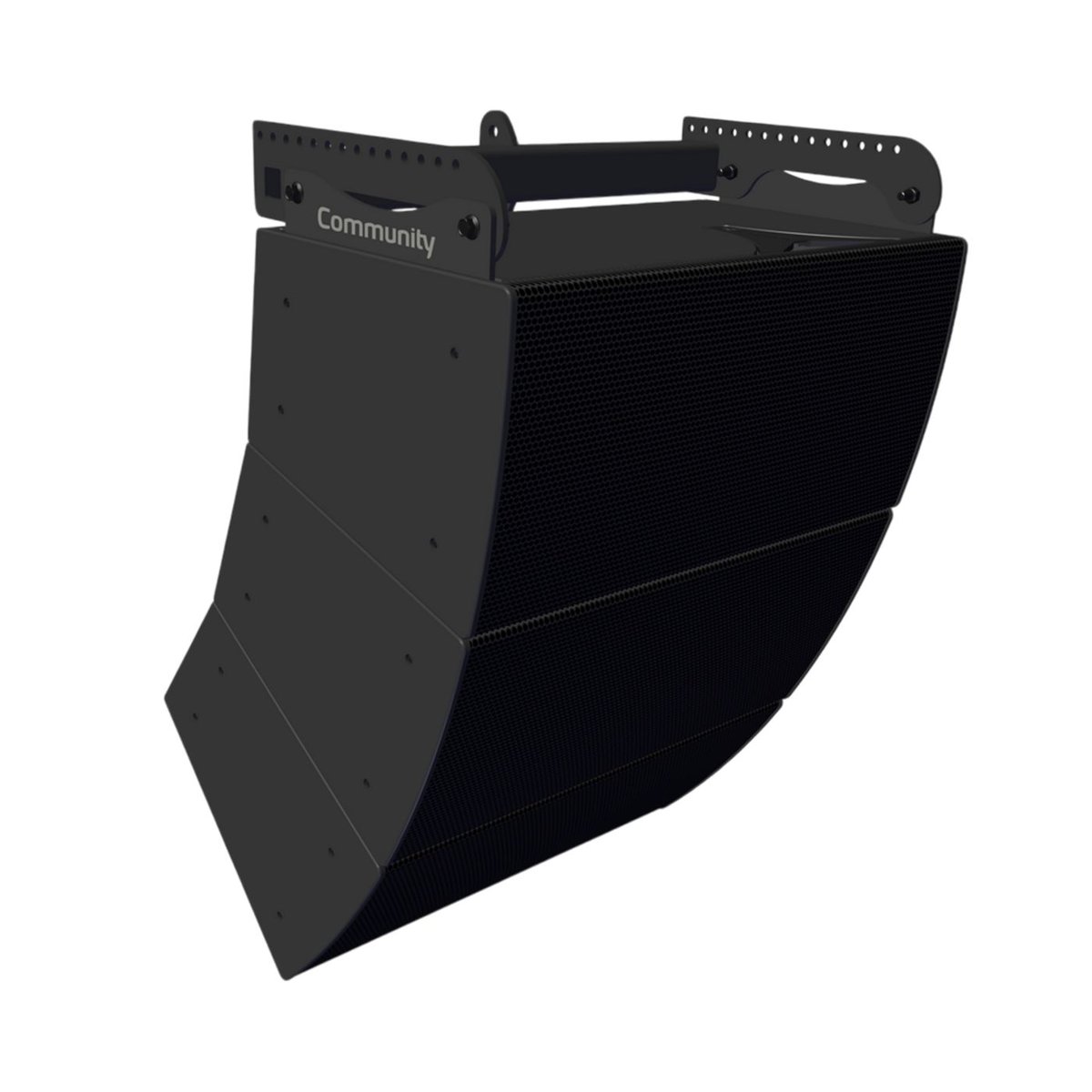

Name: Community IV6-1122/15 12-inch 2-Way Line Array Loudspeaker
Brand: Community Professional
SKU: IV6-1122/15B
Availability: InStock

The Community IV6-1122/15 is a 12-inch 2-Way line array loudspeaker. It works over 42 Hz - 18.5 kHz. It runs passive with integrated passive acoustic optimization. Power handling: 400W Cont.; 1600W Peak. Community positions it for large venue work.

The family covers 120 x 15 degrees nominal patterns, in black, grey and white, with weather-resistant WR versions for outdoor mounting rated Outdoor: IP55W per IEC 60529; designed in accordance with MIL-STD-810G. Mounting: (8) M10 threaded rigging points (4 per side). Operating environment: Indoor or Weather-Resistant Outdoor. Every part number in the family is listed above; pick the coverage and finish the room needs.

Dimensions (H x W x D)	14.0 inches (356 mm) x 28.1 inches (714 mm) x 16.7 inches (425 mm)
Type	2-way, 12-inch, line array loudspeaker
Transducers	LF: 1 x 12 inches (305mm) ferrite driver; 3 inches (76mm) voice coil, inherently weather-resistant cone; HF: 2 x 1.7 inches (43mm) voice coil, 1 inch (25mm) exit, ketone polymer diaphragm, neodymium compression drivers
Drivers	LF 1 x 12 inches; HF 2 x 1.7 inches
Operating Range	42 Hz - 18.5 kHz
Beamwidth	Nominal Beamwidth: Horizontal: 120 degrees; Vertical: Array dependent, 15 degrees maximum splay
Dispersion	120 degrees x 15 degrees Max (array dependent)
Sensitivity	Sensitivity (1W/1m): 100 dB (single element)
