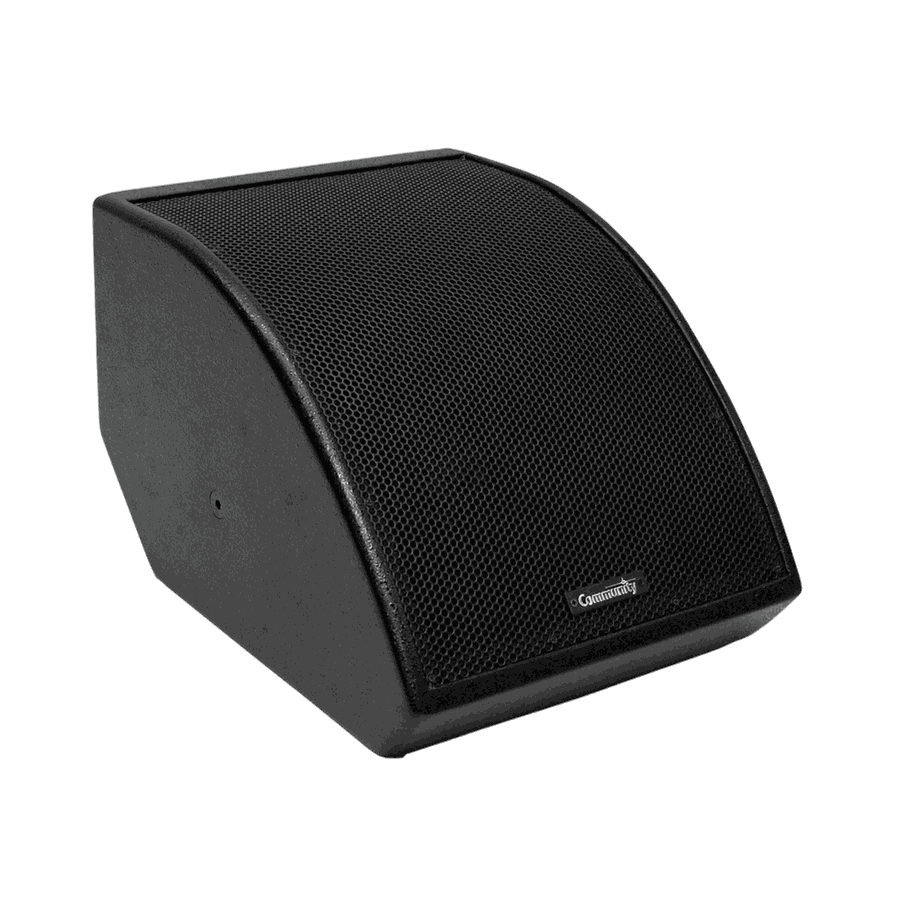

Community MX10-B 10-inch 2-Way Coaxial Stage Monitor

The Community MX10-B is a 10-inch 2-Way coaxial stage monitor. It works over 70 Hz to 18 kHz; 90 Hz to 16 kHz (+/-4 dB). Power handling: Power Rating: 200W Cont.; 800W Peak. Community positions it for large venue work.

The family covers 100 x 100 degrees nominal patterns, in black. Mounting: Optional Accessory: MX-Y10B mounting yoke bracket, black. Enclosure: 11-ply cross-laminated birch. Operating environment: Indoor.

Dimensions (H x W x D)	10.8 inches (275 mm) x 12.6 inches (321 mm) x 16.5 inches (419 mm)
Type	2-way, 10-inch, coaxial, low profile, stage monitor
Drivers	LF (1) 10-inch cone; HF (1) 1.25-inch exit
Operating Range	70 Hz to 18 kHz; 90 Hz to 16 kHz (+/-4 dB)
Beamwidth	Nominal -6dB Beamwidth: 100 degrees H (+48 / -31, 500 Hz to 6 kHz); 100 degrees V (+48 / -31, 500 Hz to 6 kHz)
Dispersion	(H x V) 100 degrees conical
Sensitivity	(1W/1m): 99 dB
Power	Power Rating: 200W Cont.; 800W Peak
