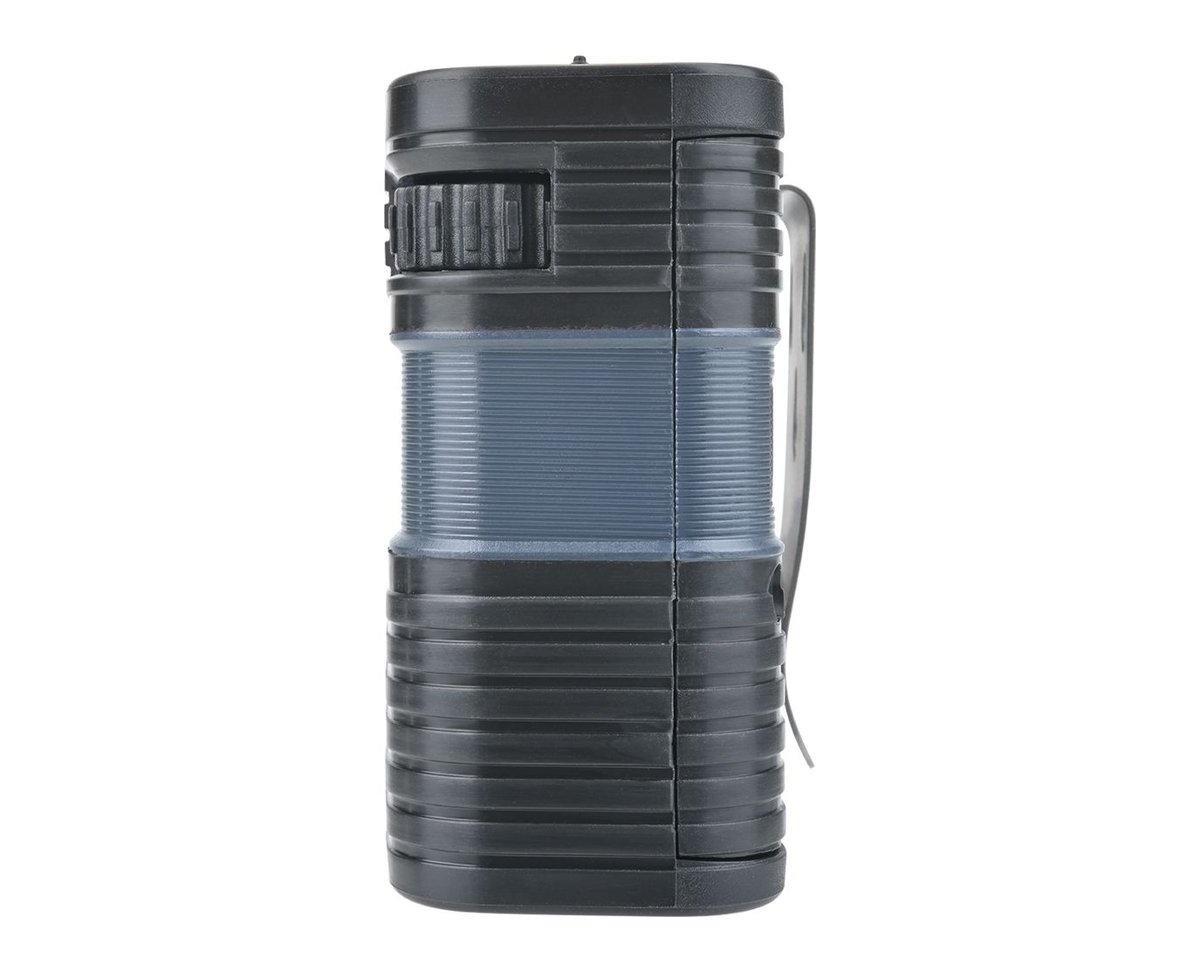

Clear-Com TR-701 IFB Beltpack
The TR-701 is a listen-only IFB talent beltpack for the Encore analog partyline. It gives a presenter, floor manager, or camera operator a private feed of the director's cues over a 2-wire line, with nothing to send back - a recessed rotary volume with a 270-degree range and a call light are the only controls the talent needs. Clear-Com's shaped 'Clear-Com Sound' contour keeps low-noise, high-headroom audio intelligible in a busy environment.
A stereo mini-jack drives a dynamic or electret earpiece, and the pack loops onto the line through XLR-3 intercom in and out connectors so packs daisy-chain down a run. Green and amber LEDs show power and call, concealed DIP switches set headset level and LED behavior, and an IP54-rated, ruggedized housing stands up to field use. It draws low operating current so more packs can share a single line.
| Type | 2-wire IFB talent listen-only beltpack |
|---|---|
| Headphone Frequency Response | 150 Hz - 20 kHz +/-3 dB |
| Headphone Impedance | 30 Ohms or greater |
| Maximum Output Level | +20 dBm |
| Headphone Connector | Stereo mini jack |
| Intercom Line | XLR-3 in and out (loop-through) |
| Controls | Recessed 270-degree volume, Call and Talk keys, call light |
| Environmental | IP54 dust and water resistance |
| Dimensions | 1.7 x 3.4 x 4.5 in (43 x 86 x 114 mm) |
| Weight | 0.66 lb (299 g) |
