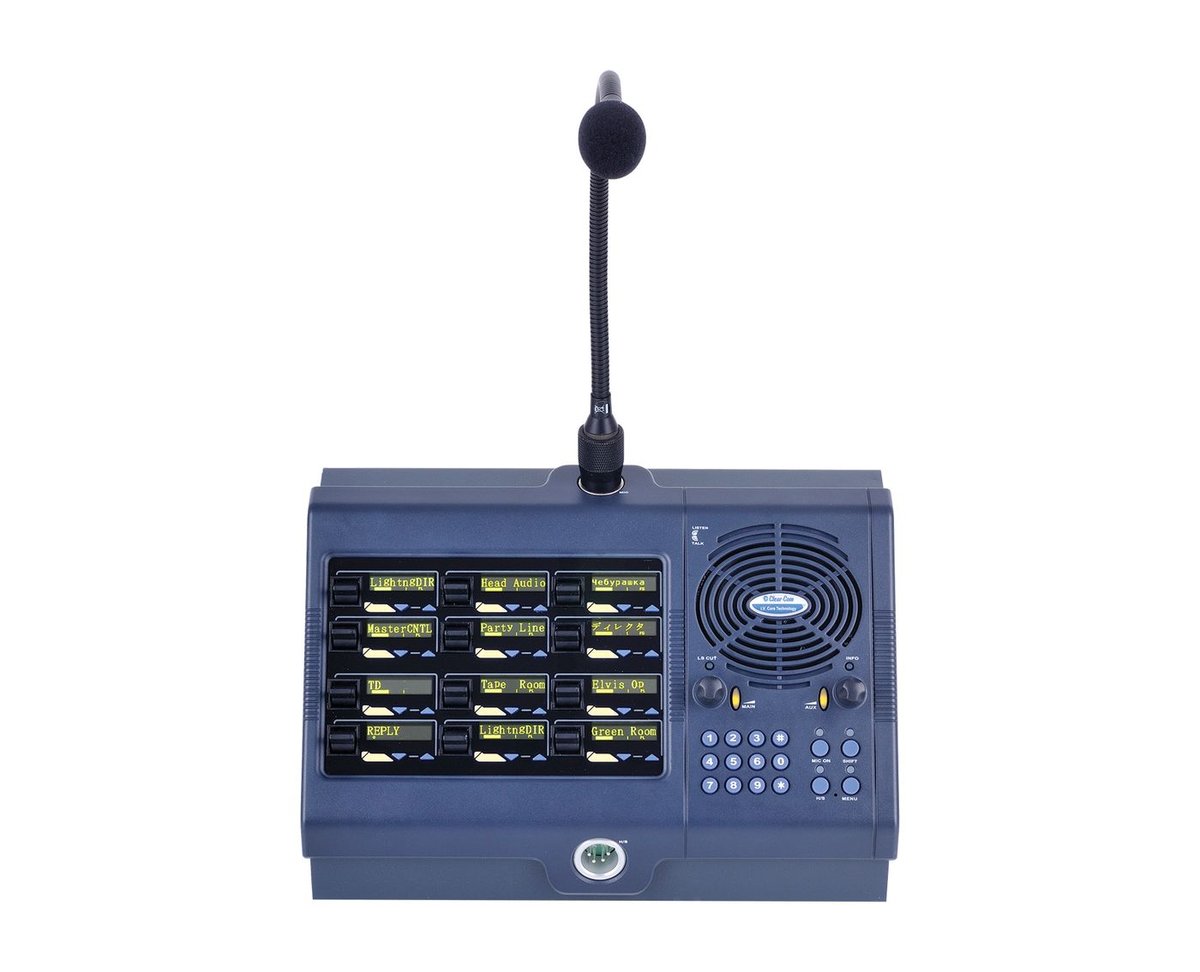

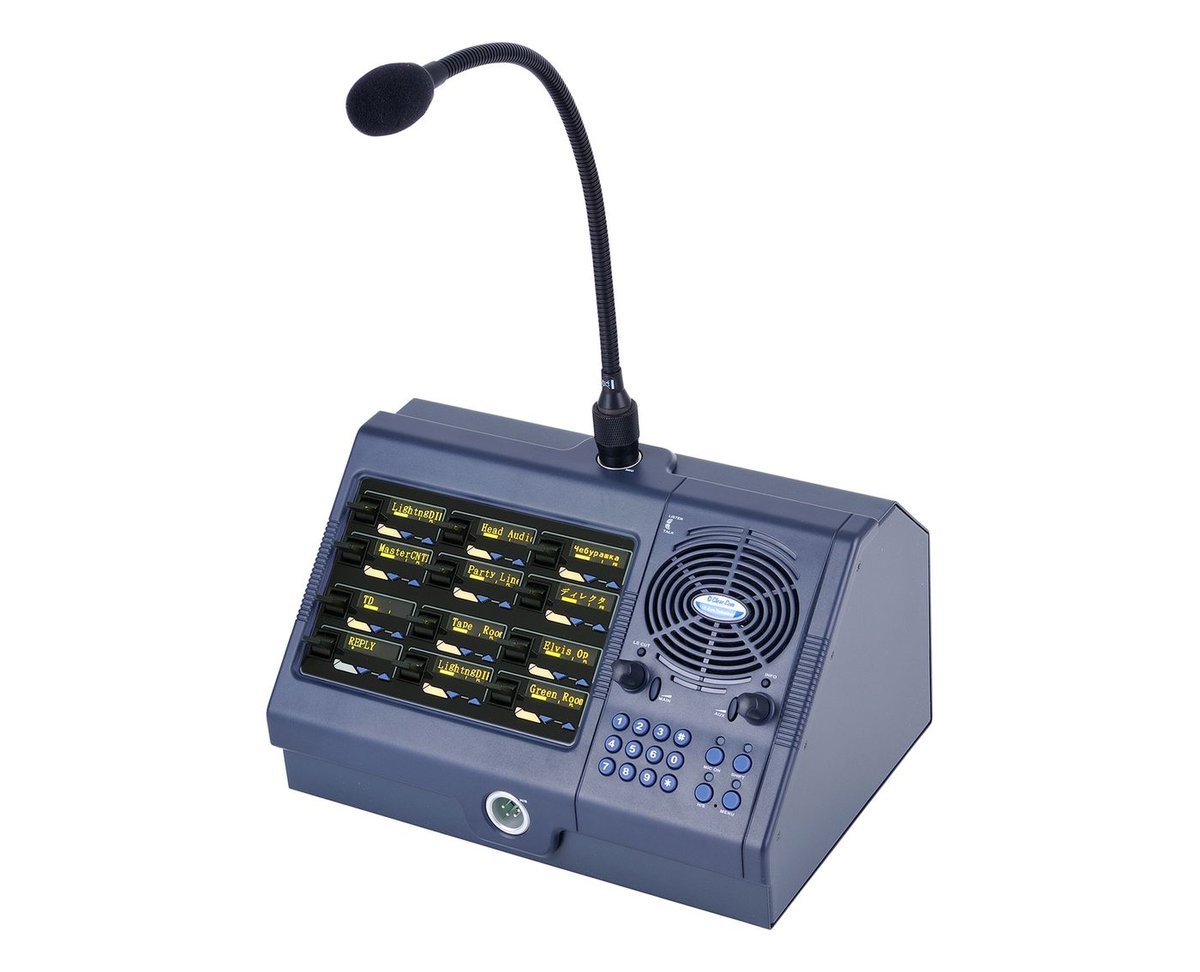

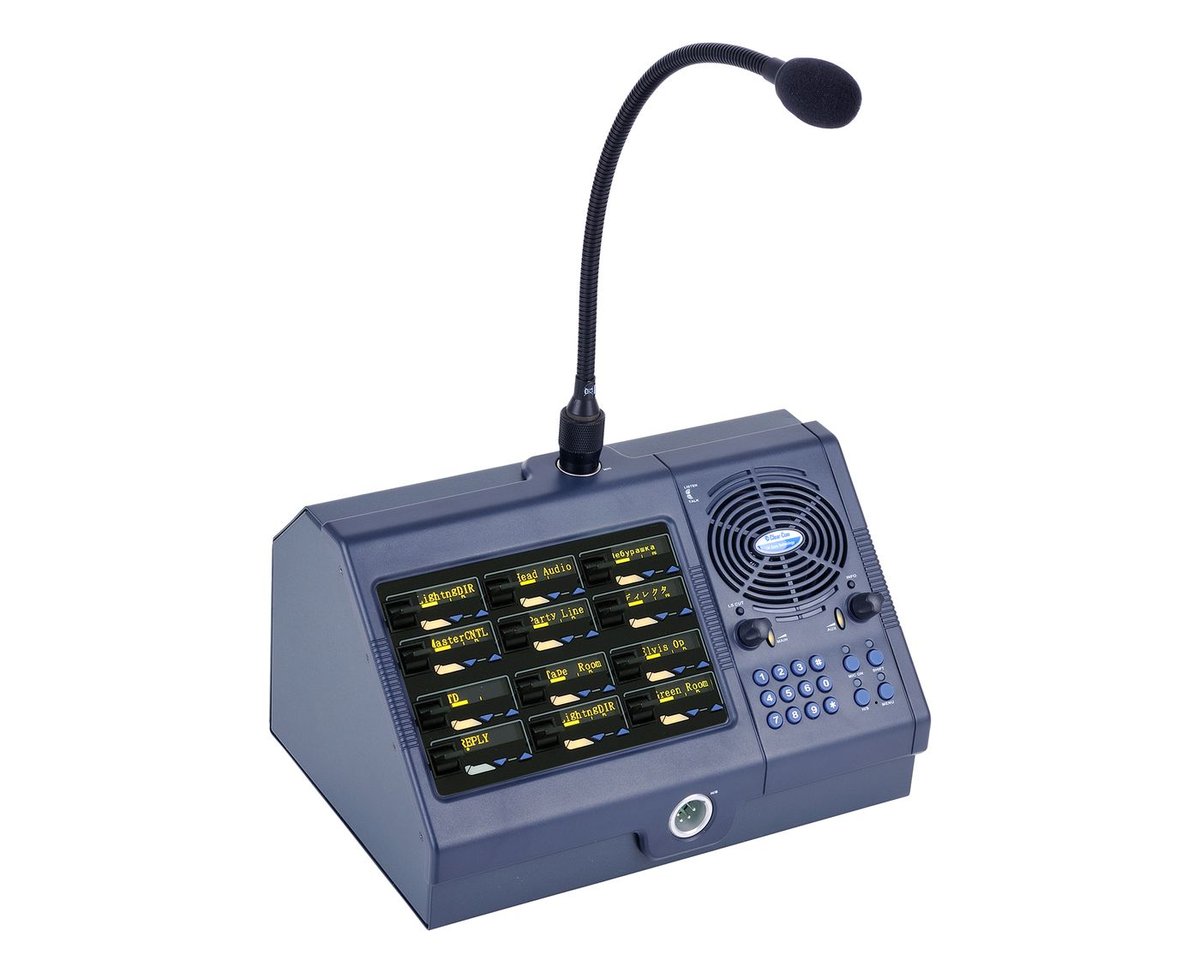

Clear-Com V12LDD V-Series 12-Key Lever Desktop Panel

The V12LDD is the desktop version of Clear-Com's 12-key V-Series lever panel. It sits on a production desk rather than in a rack, which suits a stage manager, a producer or an OB position where the panel needs to be within reach and angled to be read. This build is the IP variant. Lever talk and listen key with level control buttons per keyset, with a display per keyset for assignment and state.

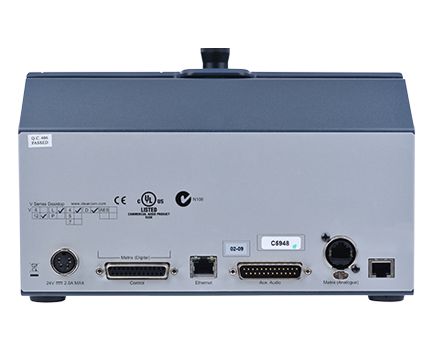

V-Series panels connect to an Eclipse HX matrix and share the family's interfacing: headset and gooseneck microphone inputs, auxiliary line-level audio, and GPIO for tally and machine control. Choosing between lever, rotary and pushbutton is a question of how the house works. Levers latch, rotaries put level under the same finger as talk, and pushbuttons keep the surface simple for occasional users.
