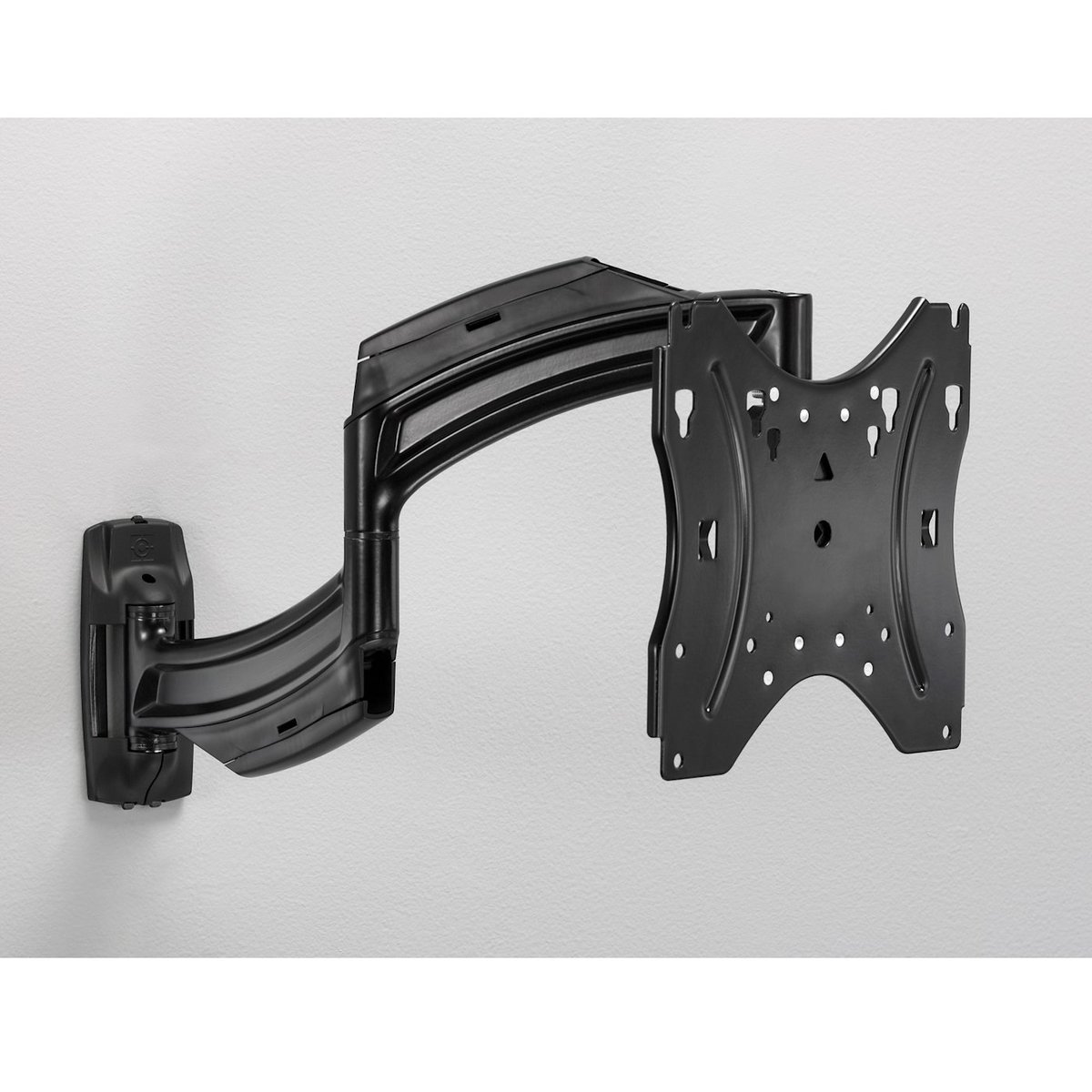

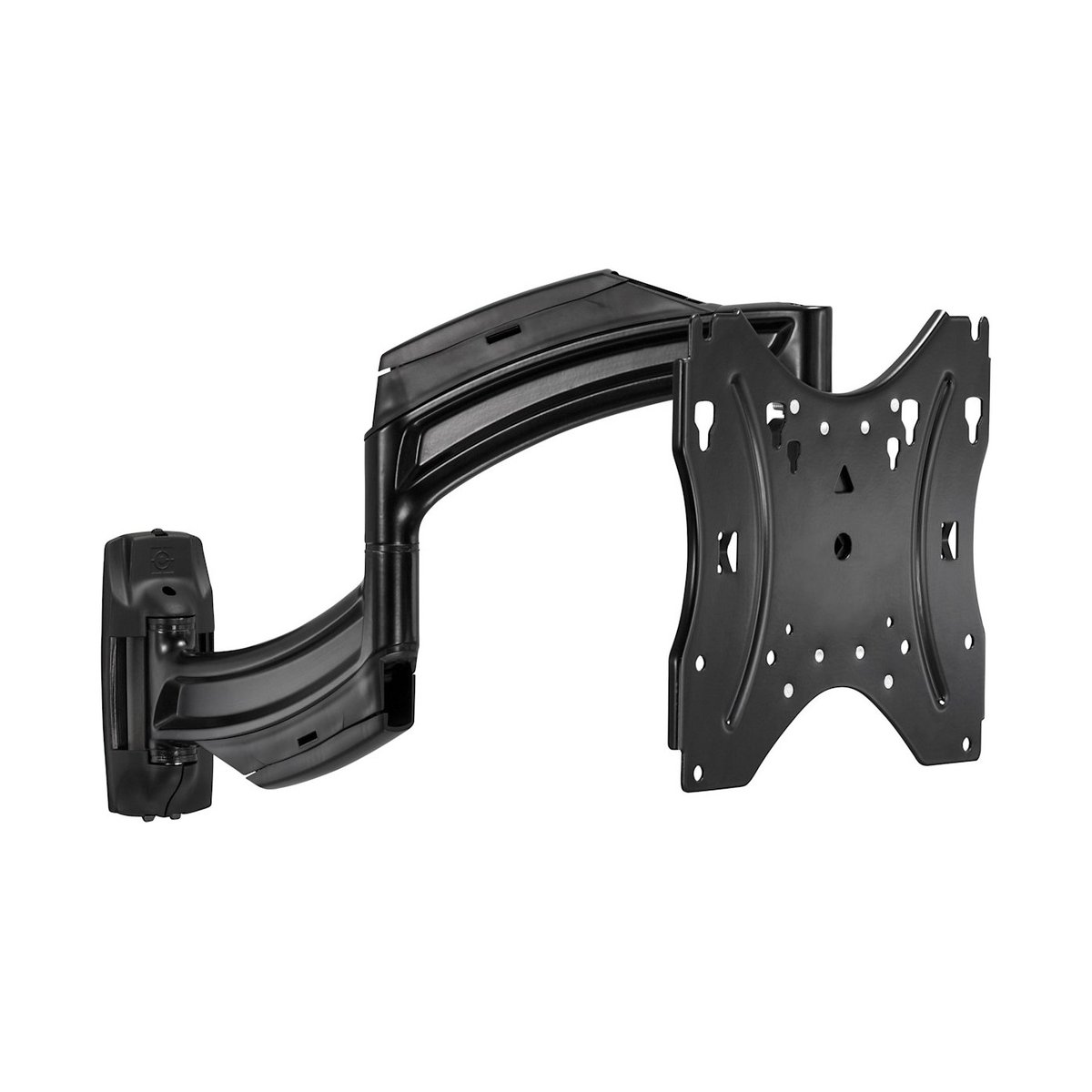

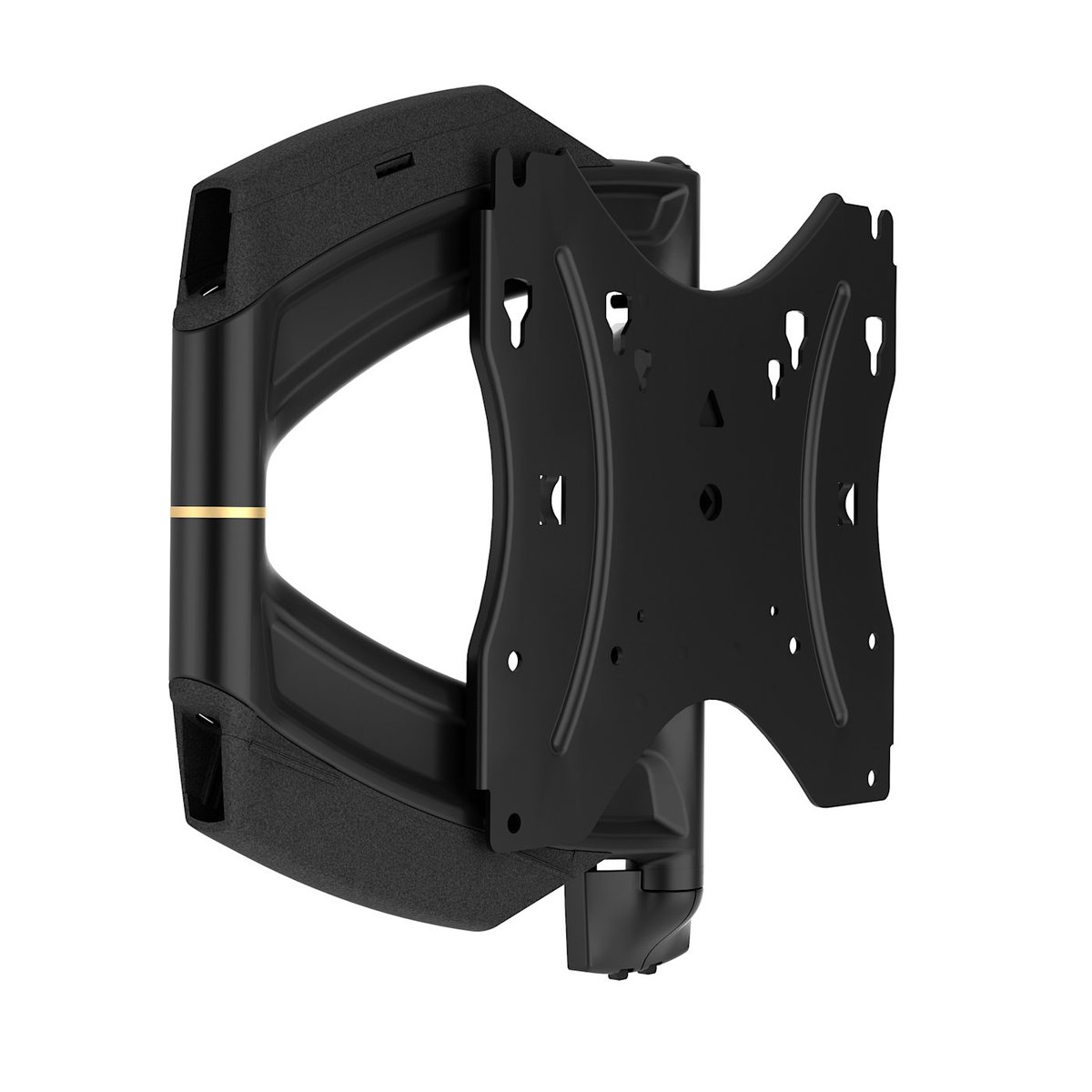

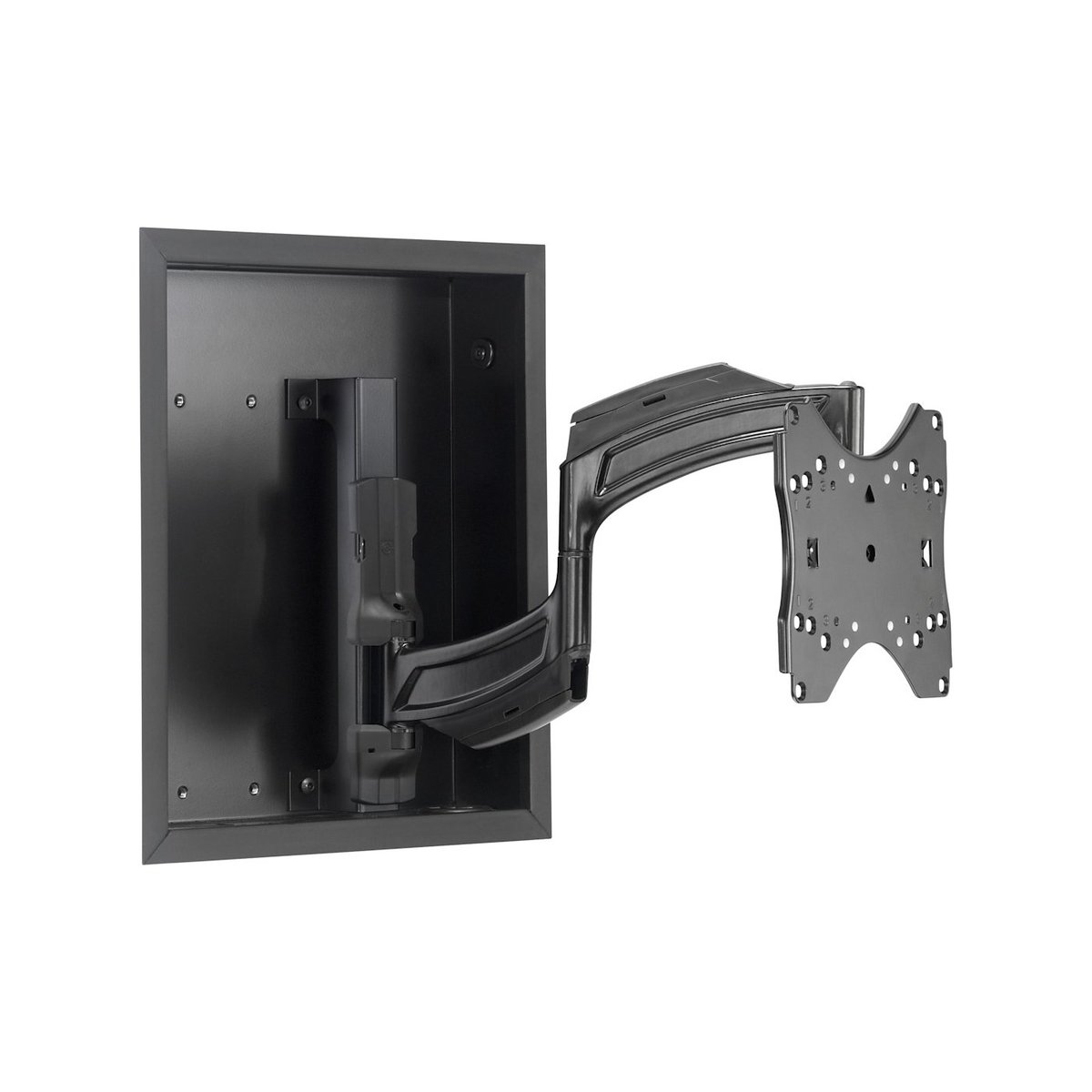

Chief TS118SU Small Thinstall Single Swing Arm Wall Display Mount, 18 in Extension

The small end of the Thinstall swing-arm range: 10 to 40 inch displays up to 35 lb on a single stud. It is the mount that goes on the end of a nurses' station, above a reception desk or beside a machine, where a small screen has to be pulled out and pushed back all day.

Closed it sits 1.5 inches from the wall. Extension reaches 18 inches, with swivel and 0 to -12 degrees of tilt, and post-installation leveling roll to square the picture. Landscape or portrait, with VESA patterns from 75 x 75 up to 200 x 200 mm. UL Listed.

Display size10 - 40 in (254 - 1016 mm)
Weight capacity35 lb (15.9 kg)
VESA mounting pattern75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm
Maximum extension18 in (45.7 cm); minimum depth 1.5 in (3.8 cm)
Tilt0 to -12 degrees
OrientationLandscape or portrait
Wall stud compatibilitySingle stud
CertificationUL Listed
