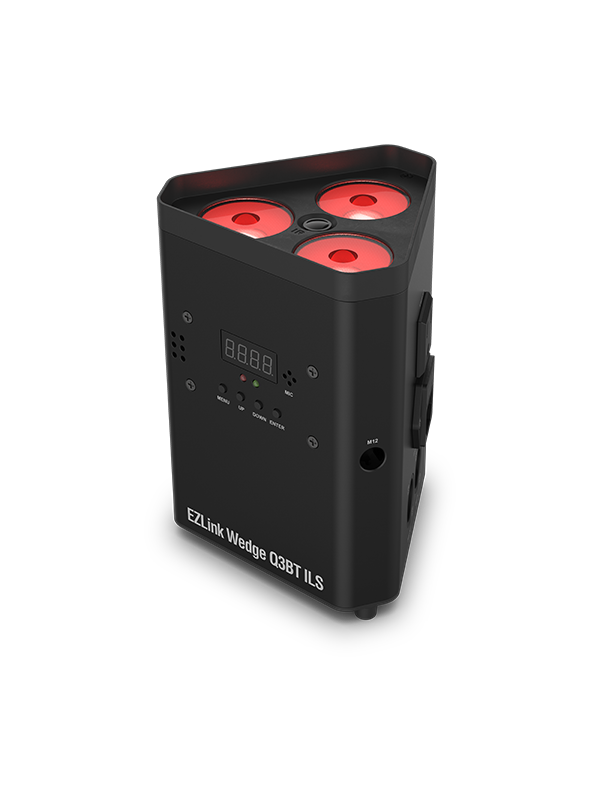

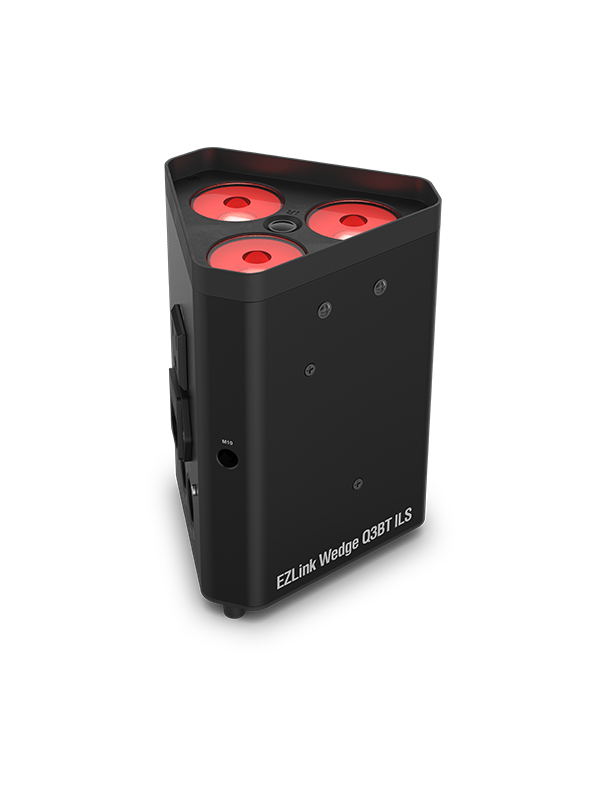

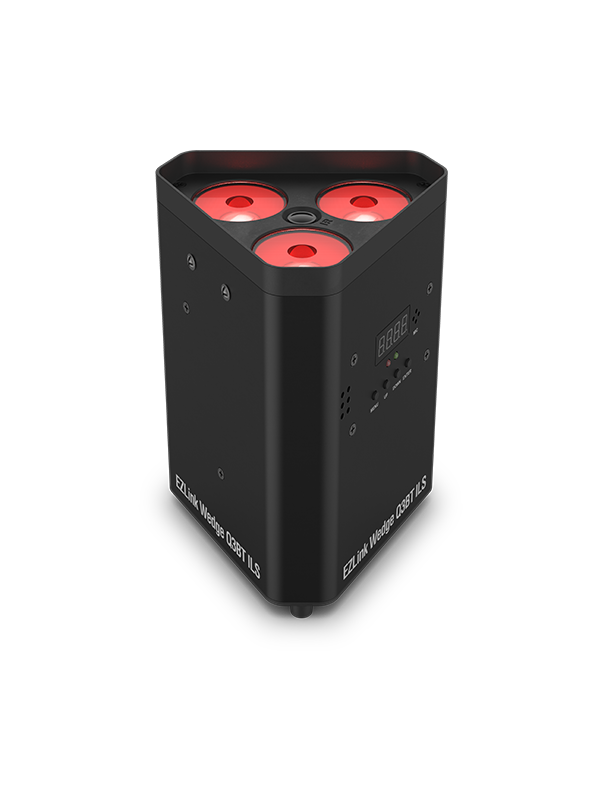

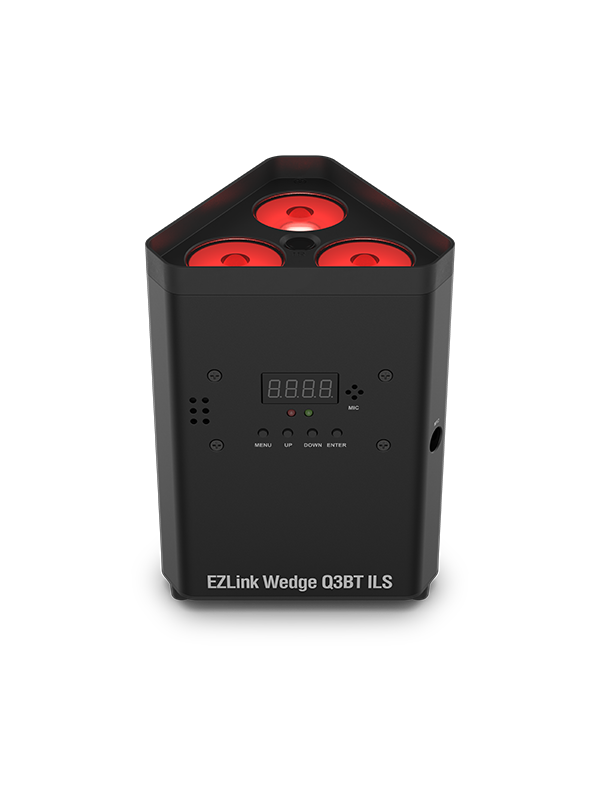

Chauvet DJ EZlink Wedge Q3BT ILS Wedge-Shaped Cordless Wash

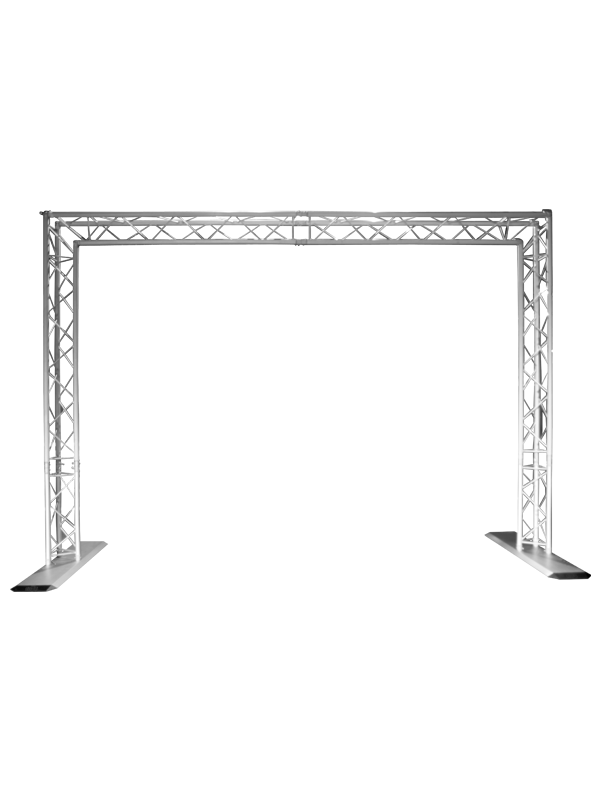

EZlink Wedge Q3BT ILS is shaped specifically to sit in a truss corner: its angled body was designed to fit TRUSST Goal Post and Arch Kit systems, and M10 or M12 threaded rig points let it mount directly to truss without a separate clamp. Three RGBA LEDs run cordless off an internal battery, with Bluetooth 4.2 built in for phone or tablet control.

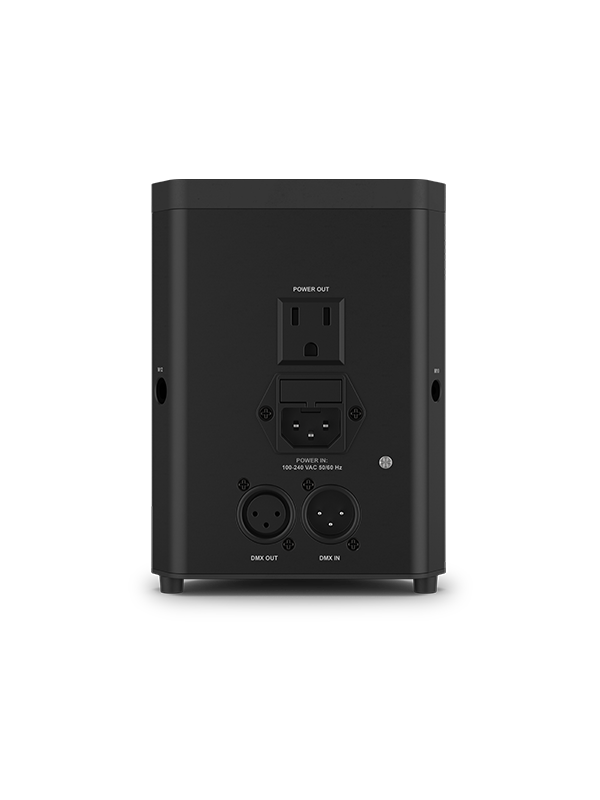

DMX runs 4 or 8-channel modes over 3-pin XLR when a wired show calls for it, and an optional IRC-6 remote gives standalone control. Battery life runs up to 20 hours on a single color or 9 hours at full output, with a 5-hour recharge, and when plugged into mains it power-links up to 16 units at 120V.

Light Source	3 LEDs (quad-color RGBA), 5 W each, 50,000-hour life
DMX Channels	4 or 8; 3-pin XLR
Beam / Field Angle	13°/25°
Mounting	M10/M12 threaded rig points; fits TRUSST Goal Post/Arch Kit
Battery Runtime	Up to 20 hrs (single color); up to 9 hrs (all on)
Recharge Time	5 hours
Weight / Size	2 lb (0.9 kg); 4.3 x 4.3 x 6.8 in
