Canon Macro Ring Lite MR-14EX II

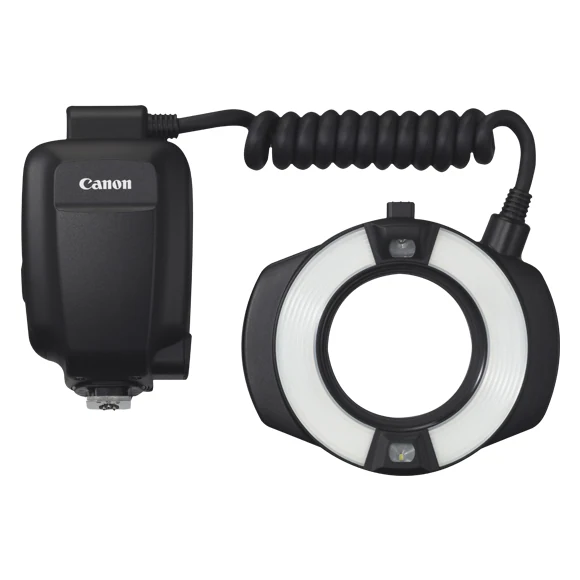

The Macro Ring Lite MR-14EX II mounts on the front of a Canon macro lens to wrap a subject in even, close-range light. Its two flash tubes can fire together for shadowless illumination or independently to shape highlights and give small subjects dimension, which makes it a staple for dental, medical, product, and nature close-ups where a hotshoe flash cannot reach.

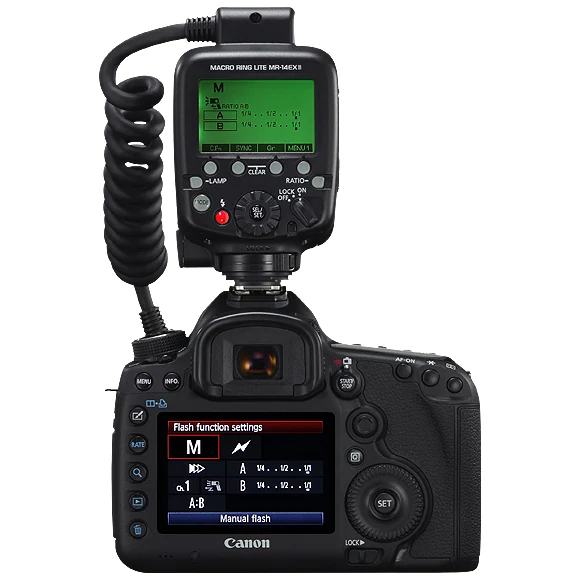

White LED focusing lamps and two modeling-flash modes let you preview the lighting before the exposure, and full E-TTL II metering keeps flash output automatic as you move in and out. It can act as an optical wireless master to trigger additional Speedlite units such as the 600EX-RT for more elaborate setups, and it runs on four AA cells or the optional CP-E4 battery pack.
| Type | Macro ring lite (twin-tube) |
|---|---|
| Guide Number | 46 ft (14 m) both tubes; 34 ft (10.5 m) per tube, ISO 100 |
| Flash Coverage | 80 degrees vertical and horizontal |
| Flash Metering | E-TTL II / E-TTL autoflash |
| Wireless | Optical wireless master for Speedlite units |
| Custom Functions | 12 |
| Power | 4x AA; optional CP-E4 battery pack |
| Canon Part # | 9389B002 |
